JRready Miniature Adjustable Crimper YJQ-MH992 Fine Tipped Crimp Tool for Electric Military Connectors, Minimum wire crimp size up to 36awg（0.0127 mm²）

JRready Miniature Adjustable Hand Crimp Tool YJQ-MH992 Fine Tipped Crimp Tool for Electric Military Connectors 36 AWG

YJQ-MH992 Fine Tipped Indenter Tool

The YJQ-MH992 Fine Tipped Indenter tools are similar to the AFM8 miniature adjustable indent crimp tool, but have sharper indenter tips measuring .07 inches.

The YJQ-MH992 tool produces an 8-indent crimp. The MH992 has eight crimp settings from 0.0070 to 0.0330 inches and is gaged with the G822 Go/No-Go gage.

The tool is 6.75 inches in length and weighs approximately 10 oz.

The pneumatic power version of this tool is the.

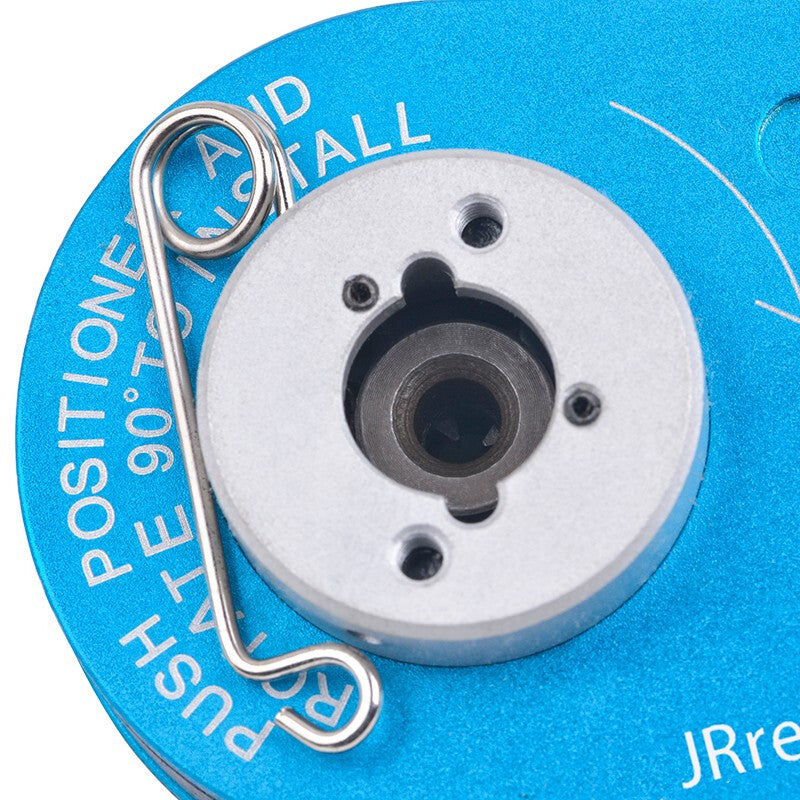

YJQ-MH992 is widely used for the crimping of wires and contacts in electronic connectors. It’s a type of fine tipped crimp tool with miniature indenters. Minimum wire crimp size up to 36awg（0.0127 mm²）. Adapts M22520/1 series positioners.

Minimum Wire Size: 36AWG
Through-hole Diameter: 3.6mm / 0.141 inch
Weight: 300g / 0.66 lb
Length: 190mm / 7.5 inch
Crimp style:4-indents 8-impressions

GAGING LIMITS OF INDENTERS:
Selector No. Intender Working Diameter mm/INCH
Selector No. 1 0.18/0.0070 (GO) --0.23/0.0090 (NO GO)
Selector No. 2 0.24/0.0095 (GO) --0.29/0.0115 (NO GO)
Selector No. 3 0.30/0.0120 (GO) --0.36/0.0140 (NO GO)
Selector No. 4 0.38/0.0150 (GO) --0.43/0.0170 (NO GO)
Selector No. 5 0.46/0.0180 (GO) --0.51/0.0200 (NO GO)
Selector No. 6 0.57/0.0225 (GO) --0.64/0.0250 (NO GO)
Selector No. 7 0.66/0.0260 (GO) --0.72/0.0285 (NO GO)
Selector No. 8 0.77/0.0305 (GO) --0.84/0.0330 (NO GO)
CHECK WITH GAGE G822 GO / NO-GO GAGE SELECTOR NO. 8
