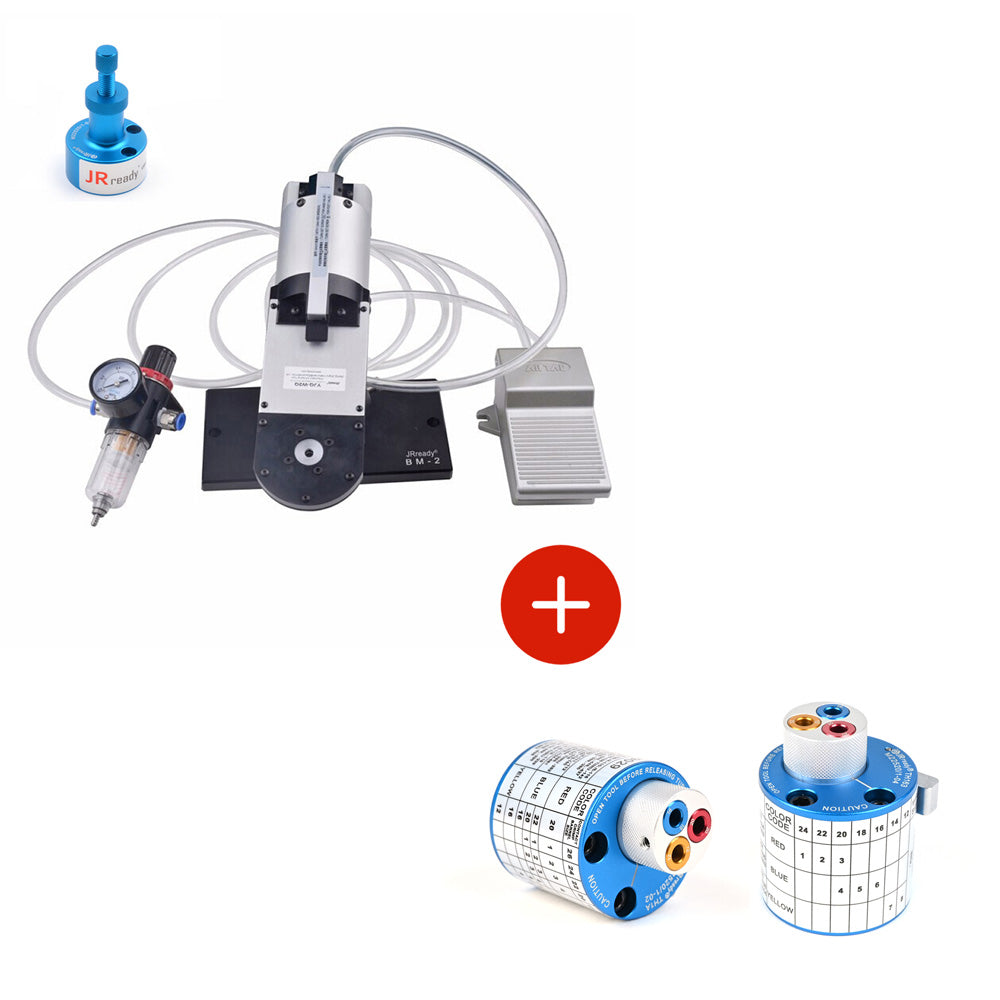

JRready ST4020 Pneumatic Crimp Tool Kit (YJQ-W2Q Crimper & Universal Positioner), Send M22520/1-02 & M22520/1-04 Turret Head for Free

JRready ST4020 Pneumatic Crimp Tool Kit (YJQ-W2Q Crimper & Universal Positioner), Send M22520/1-02 & M22520/1-04 Turret Head for Free

JRready ST4020: YJQ-W2Q Pneumatic cable Crimper Air Tools & Universal Positioner & BM-2 Adjustable Base Mount & F2 air control system for Cable Connector 12-26AWG

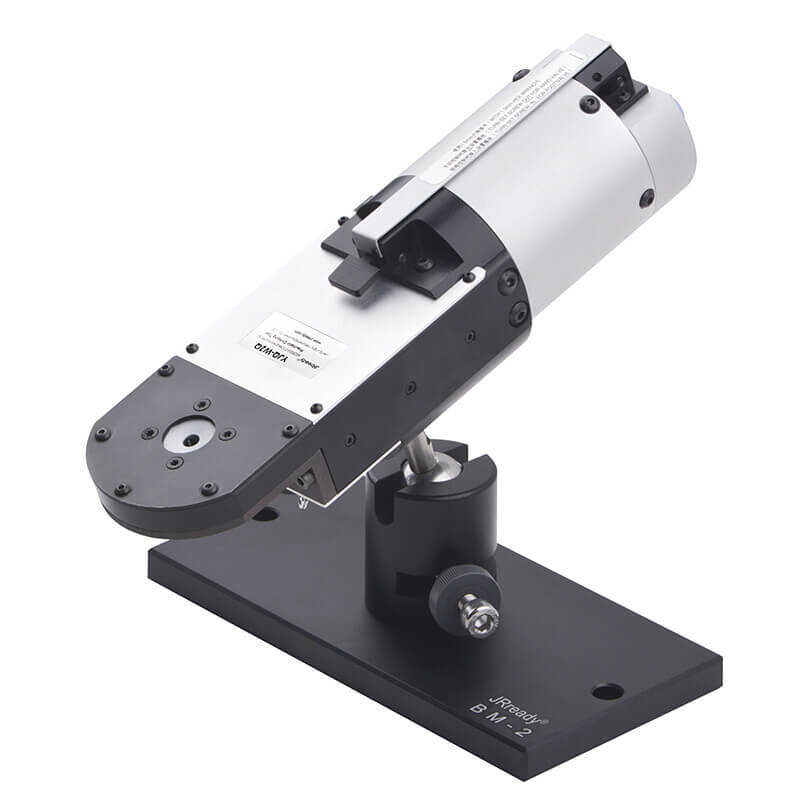

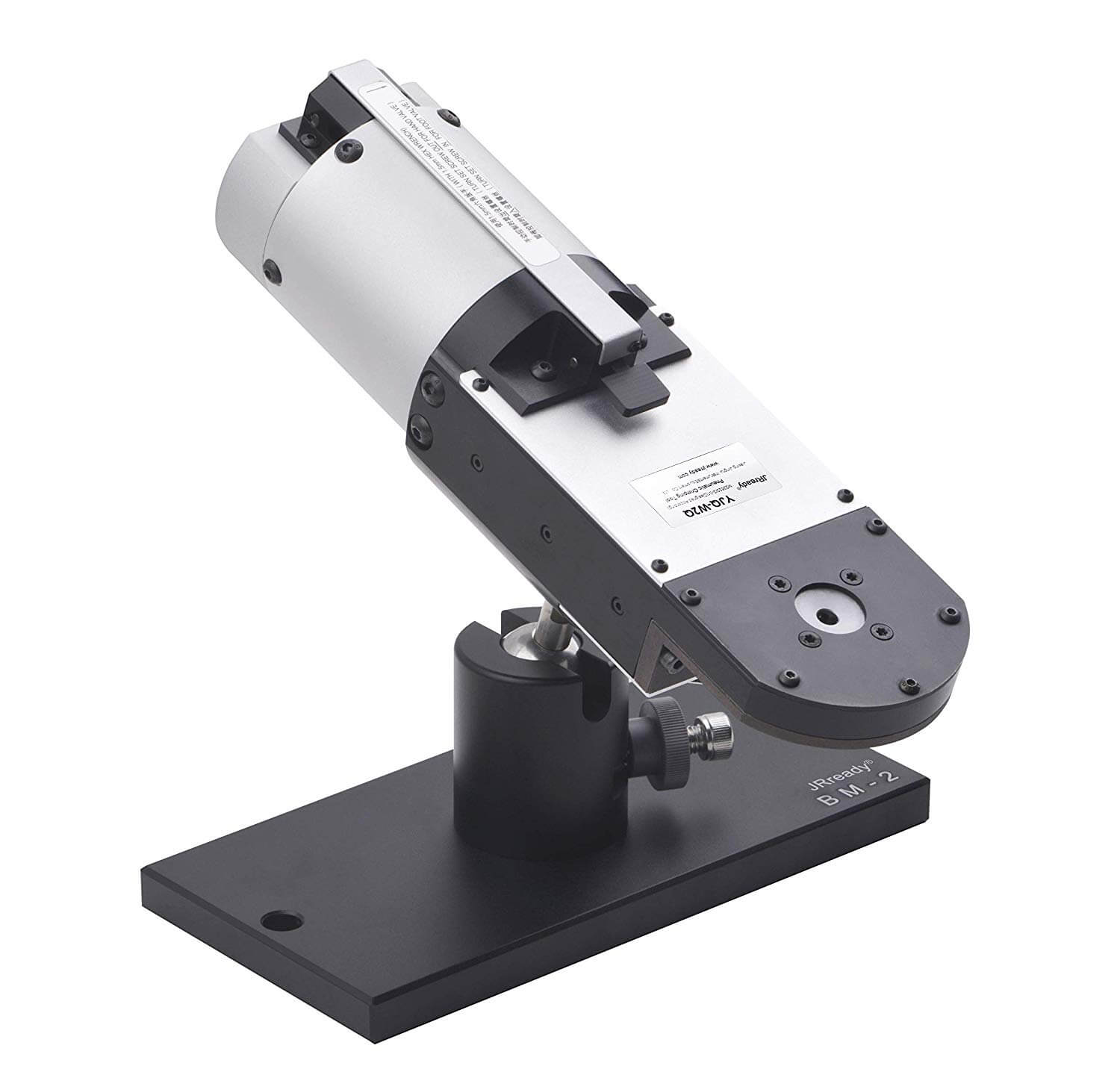

• ST4020 ST consists of YJQ-W2Q (Pneumatic Crimp Tool), Universal Positioner, BM-2 (Bench Mount), PC-SUITE1 ST
• Suitable for crimping of round contacts of MIL standard, Harting, Wain, TE connectors
• Wire Crimp Range: 12-26AWG (0.128-3.33mm²)
• Manual Version: JST1021, ST2144
• Crimp Style: Four-indent Eight-impression

YJQ-W2Q Aviation crimping tool is designed according to MIL-C-22520 / 1-01 and it is widely used for the crimping of wires and contacts in both military and proprietary programs.

Universal positioner is designed according to MIL-C-22520/1-05.
Used to locate contacts horizontally and vertically between the indenters of the tools to ensure the accuracy and consistency of the crimp position.

The height adjusting screw can be rotated until the contact is in the proper position for crimping. Suitable for different types of contacts.

This KIT contains two kinds of control mode:

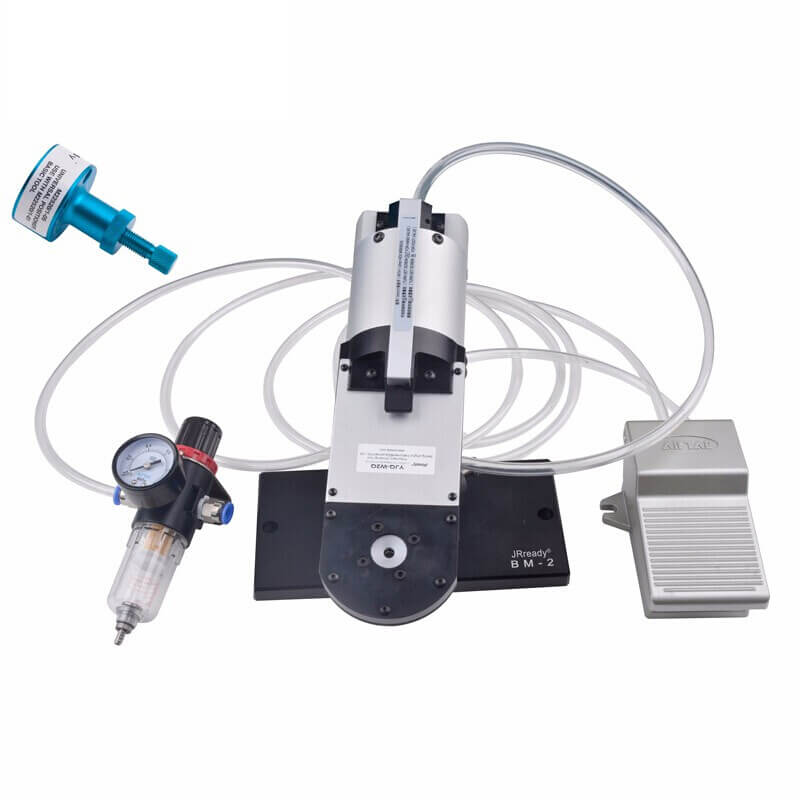

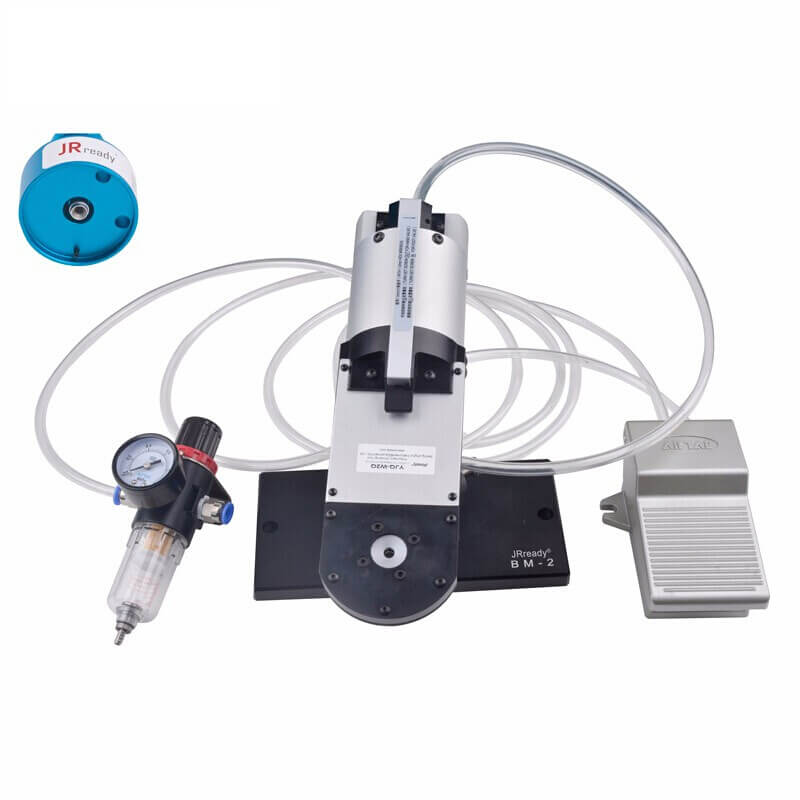

Figure1: Foot valve control mode
Figure2: Hand valve control mode
Using 1.54mm hex wrench

Youtube Related Video：

How to install the JRready YJQ-W2Q Pneumatic Crimp Tool Kit?
https://www.youtube.com/watch?v=EcXlYHHjNrM

How to Switch Hand & Foot Control Mode of Pneumatic Crimp Tool？
https://www.youtube.com/watch?v=VnhCcaBvcUE
