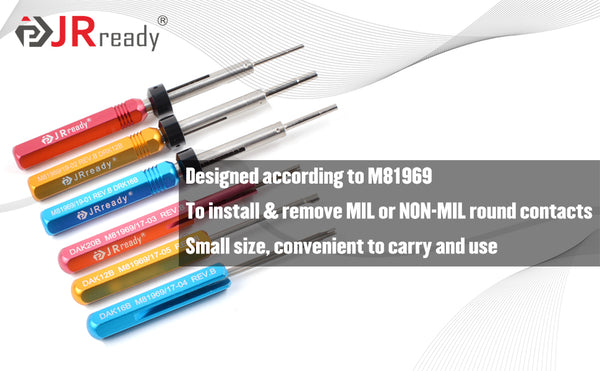

JRready M81969 Installing Removal Tool Kit DAK12B+DRK12B / DAK16B+DRK16B / DAK20B+DRK20B Tool Kit for Contact Connector

• DAK12B:Designed according to MIL-C-81969/17-05 REV.B ;A small slot on installing rod ensures enough tensile force to install contact into electronic connectors easily
• DRK12B:Designed according to MIL-C-81969/19-02 REV.B;The brace pipe has an ejector pin to facilitate the removal of contacts
• DAK16B:Designed according to M81969/17-04 REV.8 ;A small slot on installing rod ensures enough tensile force to install contact into electronic connectors easily
• DRK16B:Designed according to M81969/19-01 REV.8;The brace pipe has an ejector pin to facilitate the removal of contacts

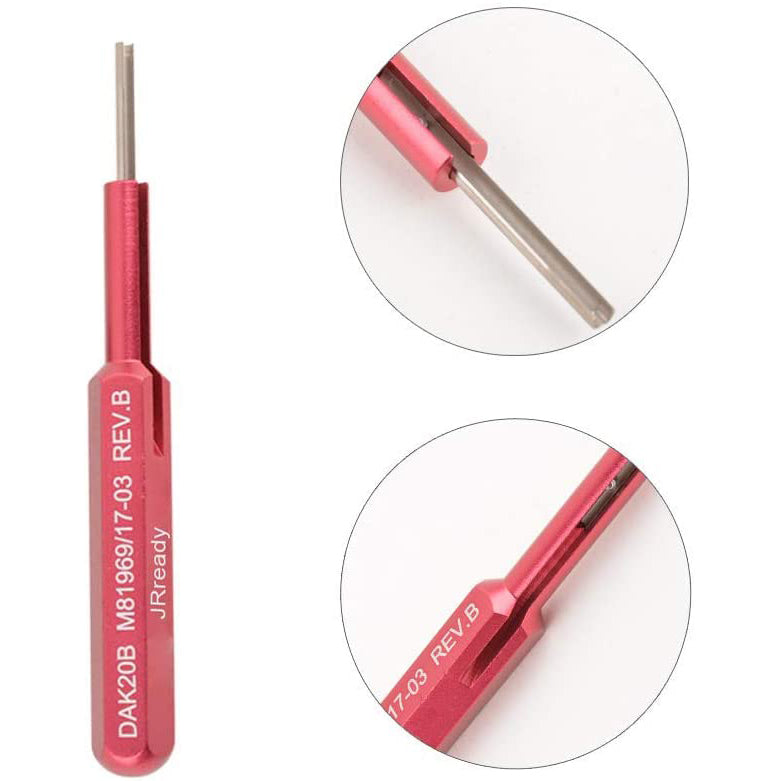

• DAK20B:Designed according to MIL-C-81969/17-03 REV.B ;A small slot on installing rod ensures enough tensile force to install contact into electronic connectors easily
• DRK20B:Designed according to MIL-C-81969/19-06 REV.B;The brace pipe has an ejector pin to facilitate the removal of contacts
• Small size, convenient to carry，good choice for outdoor using

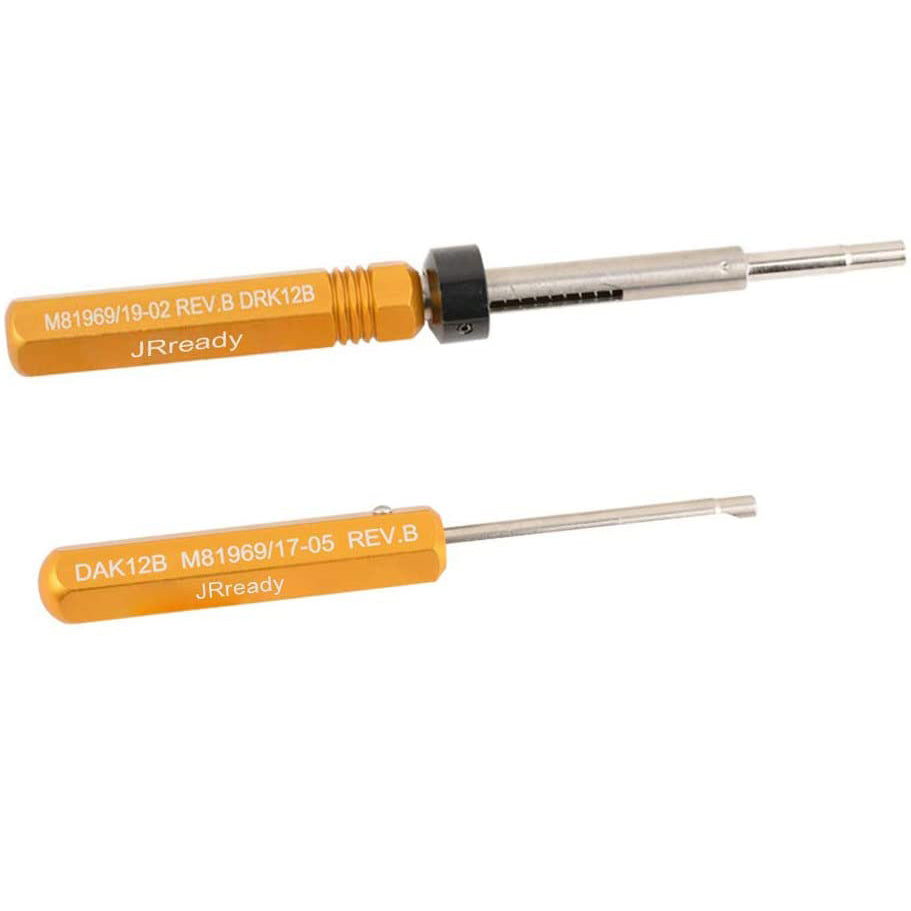

DAK12B DRK12B Installing Removal Tool Kit

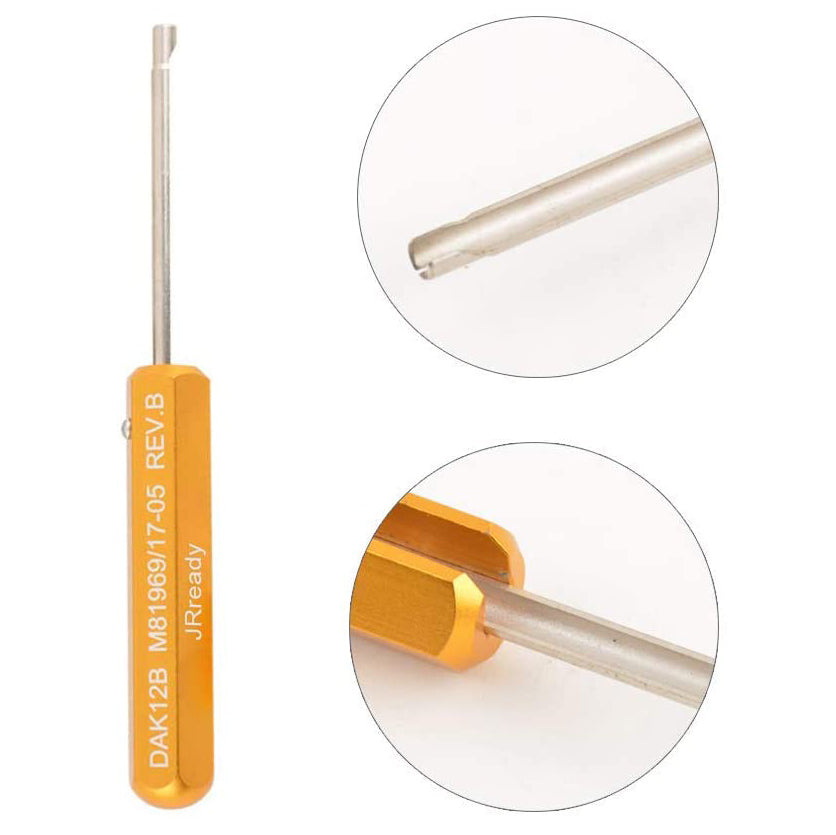

Installing Tool Model：DAK12B

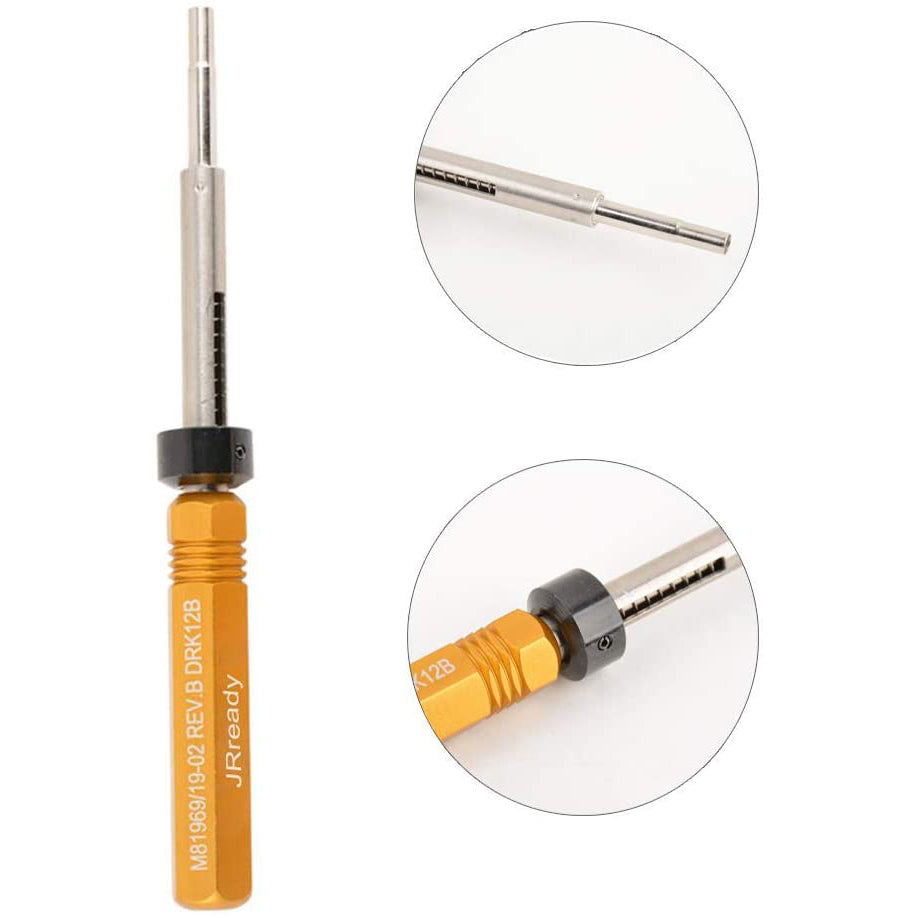

Removal Tool Model：DRK12B

Applications

Connector Model：MIL-DTL-26482 series 1
Connector Model：MIL-DTL-26500
Connector Model：MIL-DTL-26518 CLASSR
Connector Model：MIL-C-81703 CLASSR series 2
Connector Model：MIL-DTL-26482 SERIES 1
Connector Model：MIL-DTL-26482 SERIES 1
Connector Model：MIL-DTL-26500
Connector Model：MIL-DTL-26500

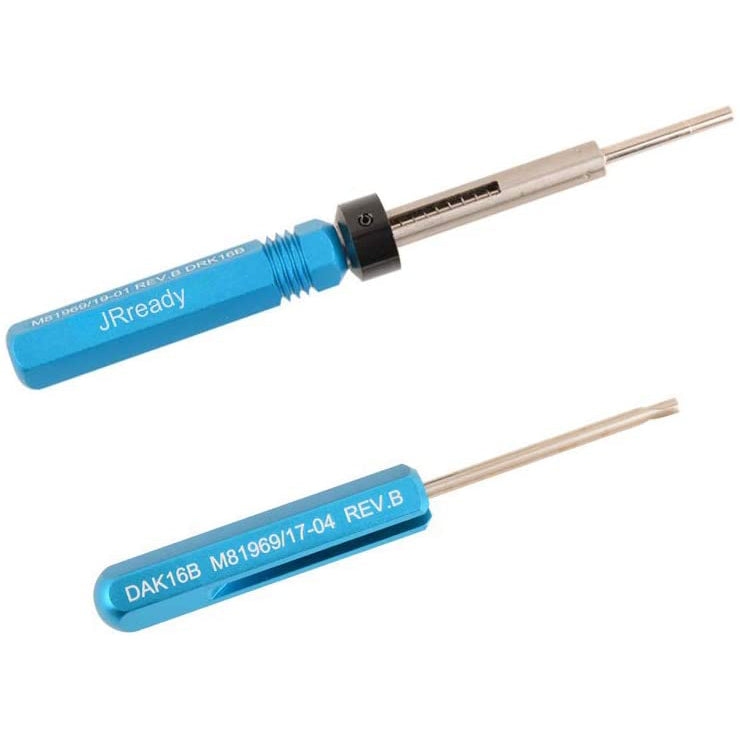

DAK16B DRK16B Installing Removal Tool Kit

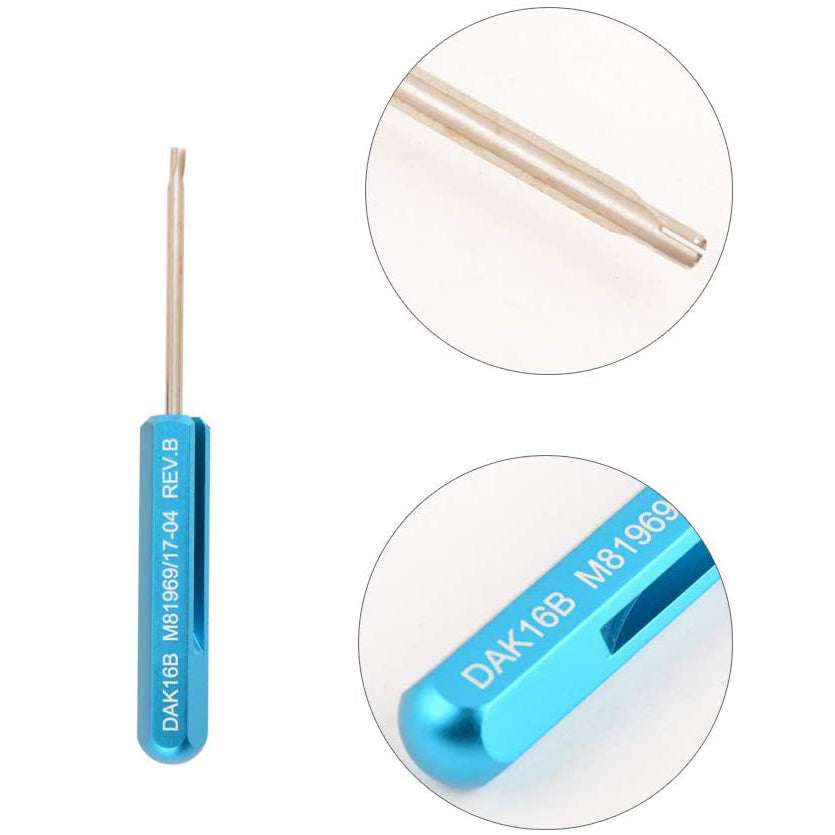

Installing Tool Model：DAK16B

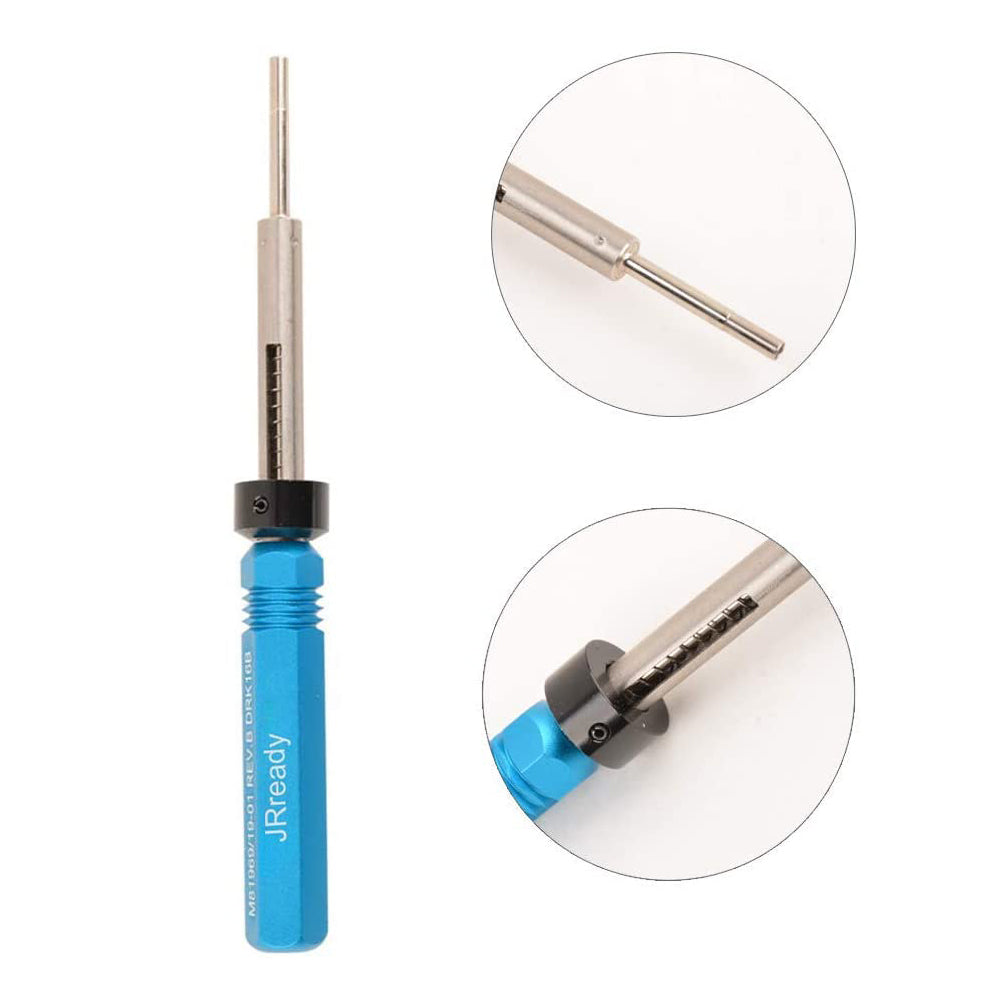

Removal Tool Model：DRK16B

Applications

Connector Model：MIL-DTL-26482 SERIES 1
Connector Model：MIL-DTL-26500
Connector Model：MIL-DTL-26518 CLASSR
Connector Model：MIL-C-81703 CLASSR SERIES 2

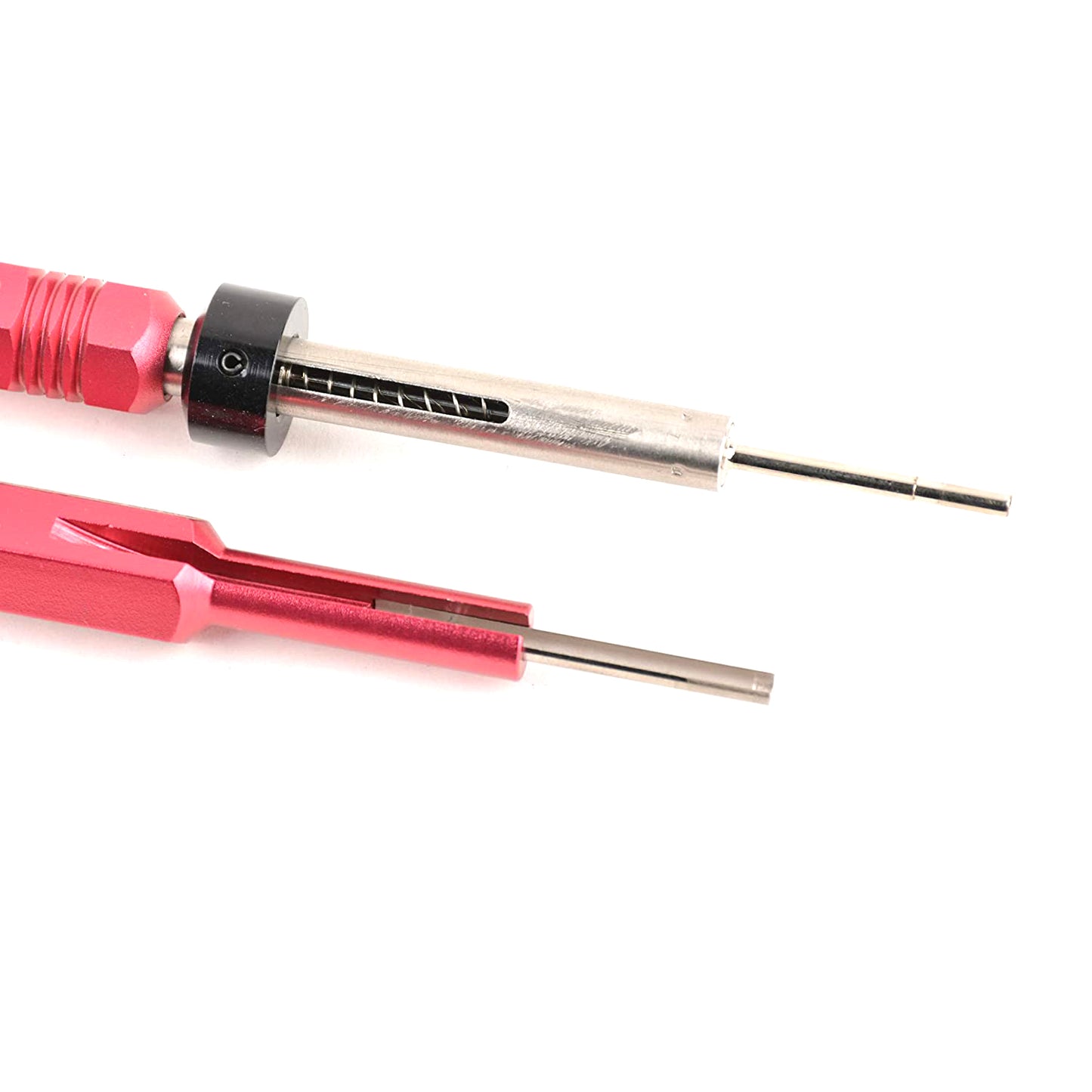

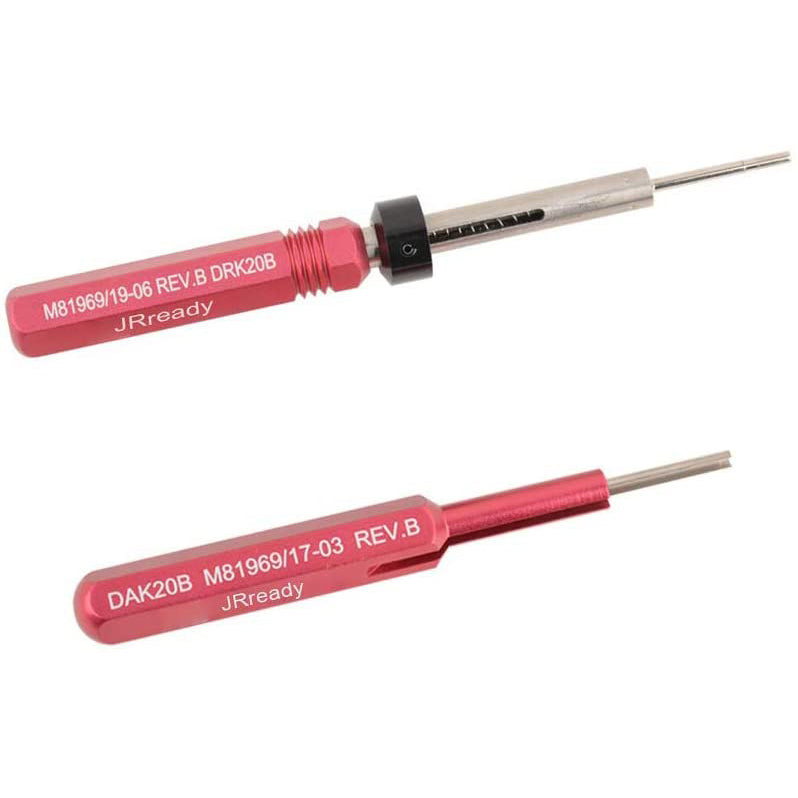

DAK20B DRK20B Installing Removal Tool Kit

Installing Tool Model：DAK20B

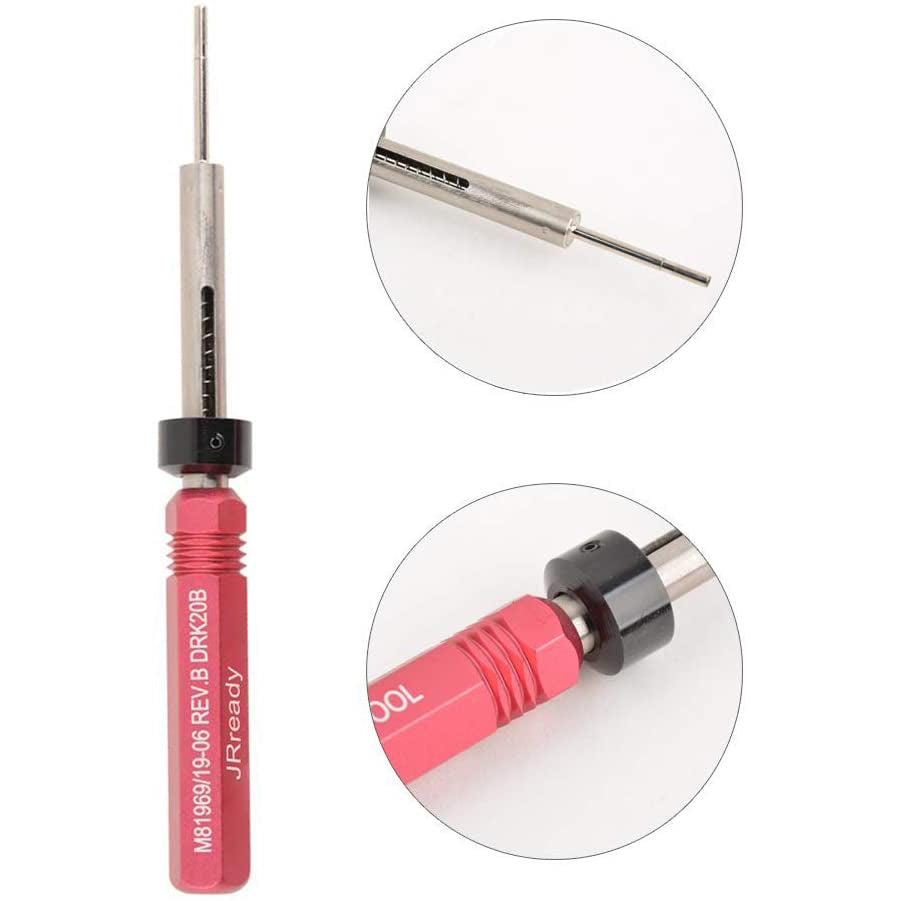

Removal Tool Model：DRK20B

Applications

Connector Model：MIL-DTL-26482 series 1
Connector Model：MIL-DTL-26500
Connector Model：MIL-DTL-26518 CLASSR
Connector Model：MIL-C-81703 CLASSR SERIES 2

Installing Instruction

Step 1: Prepare the tool & put the crimped contact into the tool.
Step 2: Adjust the crimped contact to the right position.
Step 3: Push the crimped contact gently until it reaches the right position.
Step 4: Remove the tool out.

Removal Instruction

Step 1: Prepare the removal tool and find the contact to be taken out
Step 2: Insert the removal tool into the electric connector until it reaches the bottom
Step 3: Push the contact out gently
Step 4: Remove the contact
