JRready ST6126 558PCS DT 2-12 Pin PA66 Waterproof Gray Connector Kit & Size 16 Solid Pins Sockets & Removal Tools for Car,Motorcycle,Truck,Boats

JRready ST6126 558PCS DT 2-12 Pin PA66 Waterproof Gray Connector Kit & Size 16 Solid Pins Sockets & Removal Tools for Car,Motorcycle,Truck,Boats

$149.00 USD
$149.00 USD
Sale Sold out
Shipping calculated at checkout.
Size

JRready ST6126 558 PCS DT Connector Kit Gray Conectors 14-16AWG Solid Contacts ,Removal Tools, Male & Female
  • ☆[Value Kit]:6 types of connectors and wedgelocks ranging from 2 to 12 cavities,16# pin/socket 14-16 AWG,seal plug,contact removal tool
  • ☆[DT Series Connectors]:Those connectors are made of PA66 nylon material,durable and waterproof,convenient to connect and disconnect,suitable for long time use.The strong stability allows them to be widely used in car,motorcycle,truck,boats etc

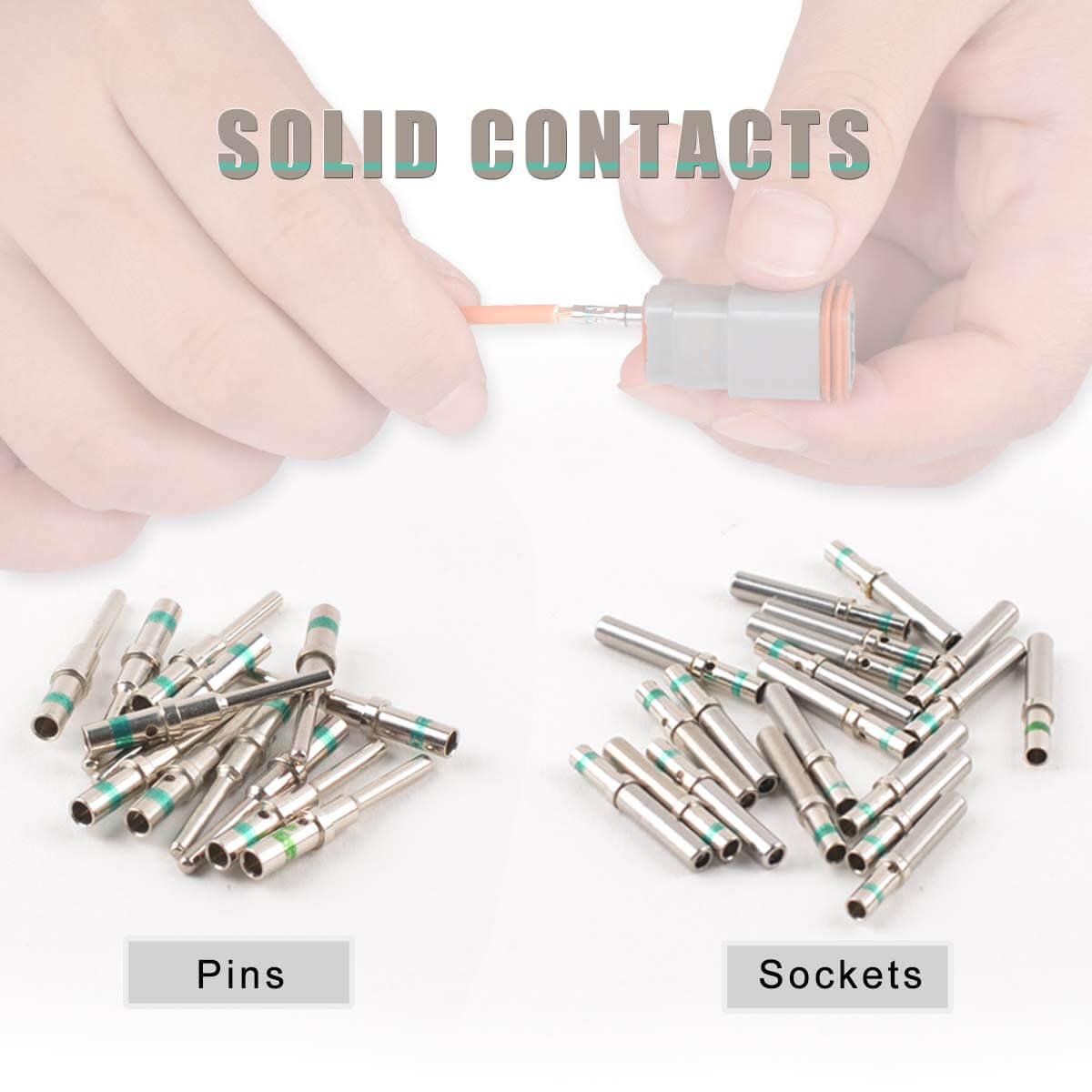

  • ☆[16# Contacts]:The terminals have strong stability and conductivity,easy to crimping with wire and installing into connector
  • [Product Guarantee]:100% customer satisfaction is the pursuit of JRready.Any product defects and customer dissatisfaction,JRREADY promise to return a full refund of purchase price

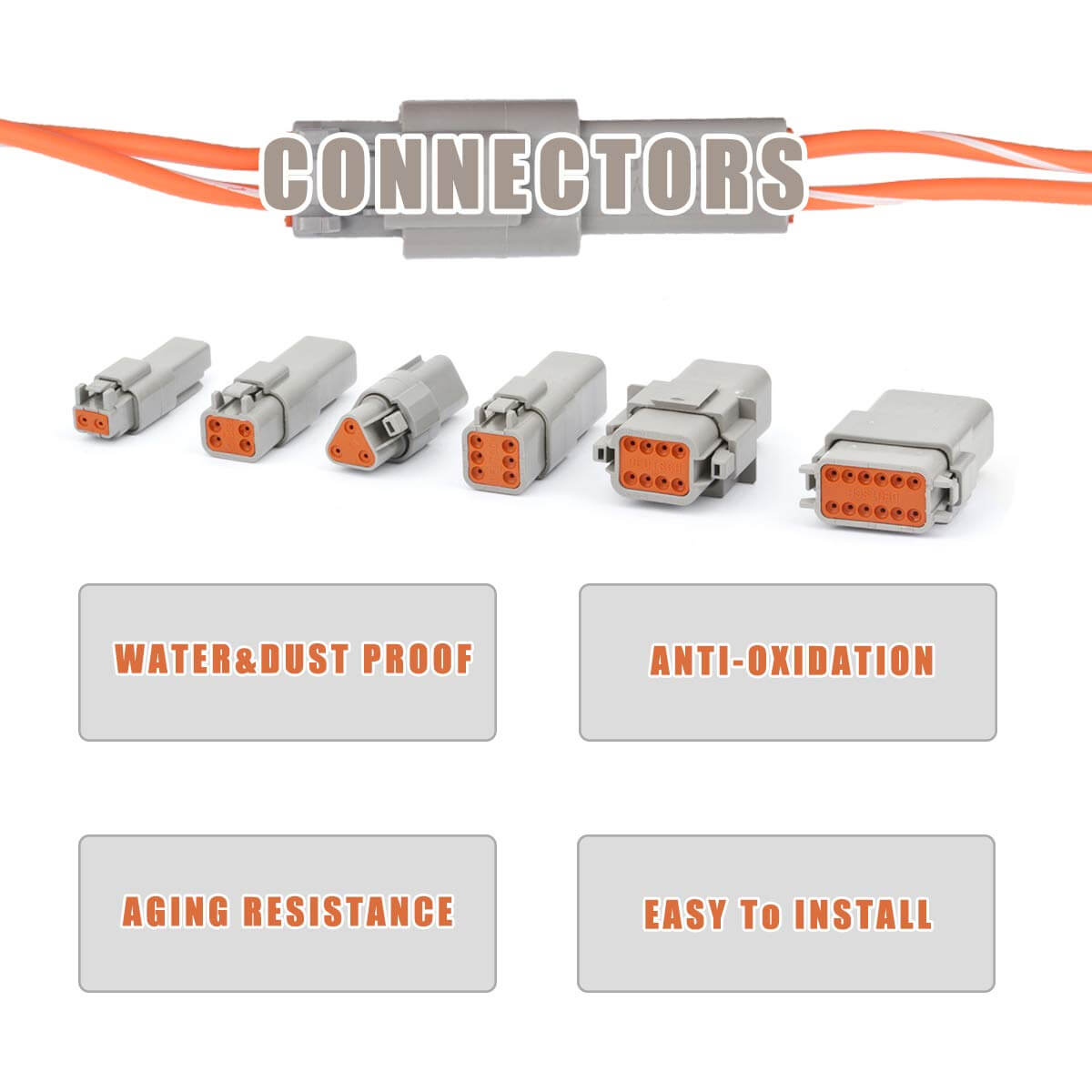

JRREADY DT Series Connector Set Connector/Terminal/Seal Plug

  • ANTI-OXIDATION
  • WATER AND DUST PROOF
  • AGING RESISTANCE
  • EASY TO CONNECT AND DISCONNECT
  • DT housings are available in 2, 3, 4, 6, 8, and 12 pin counts and use size 16 contacts, each with 13-amp continuous capacity. The housings feature an integrated latch for mating.

DETAILS

  • Series: DT Series
  • Material:Connector-Nylon PA66,Terminal-Nickel
  • Current Rating: 13 Amps
  • Contact Size: 16
  • Wire Size: 14, 16, 18, 20

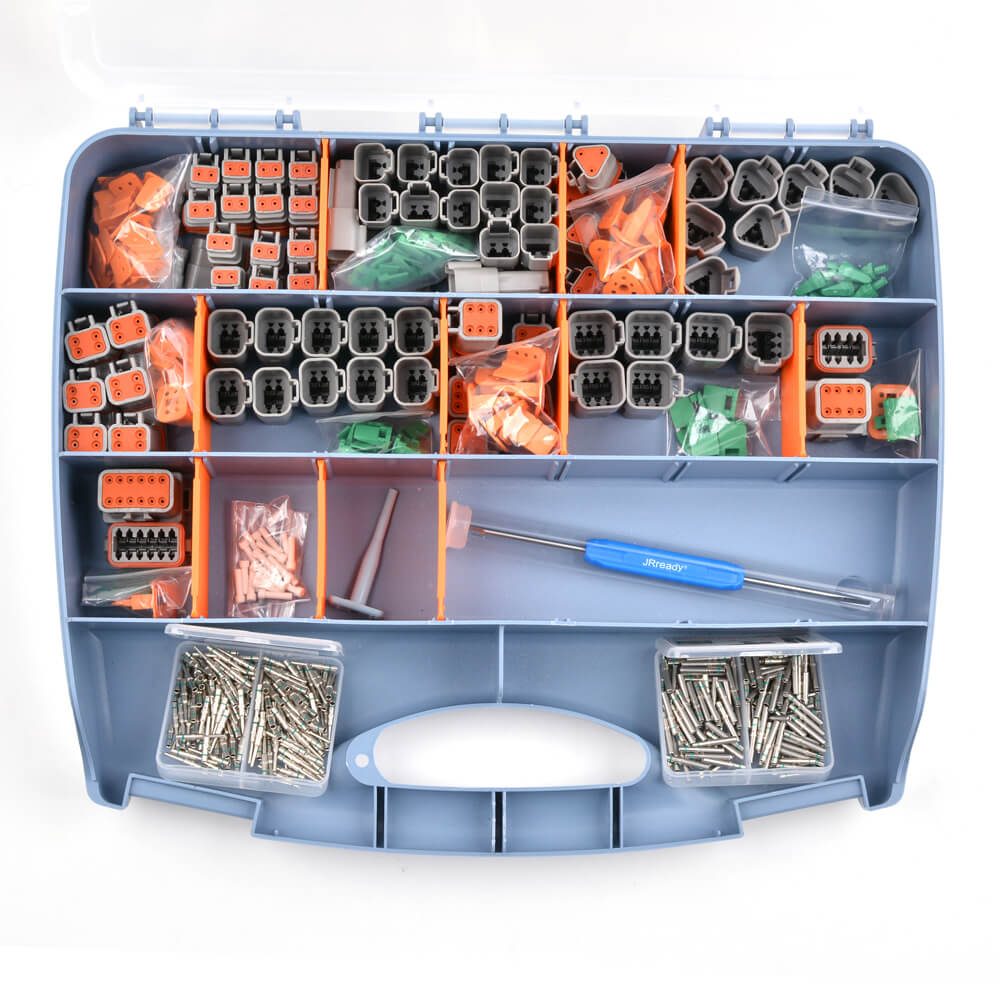

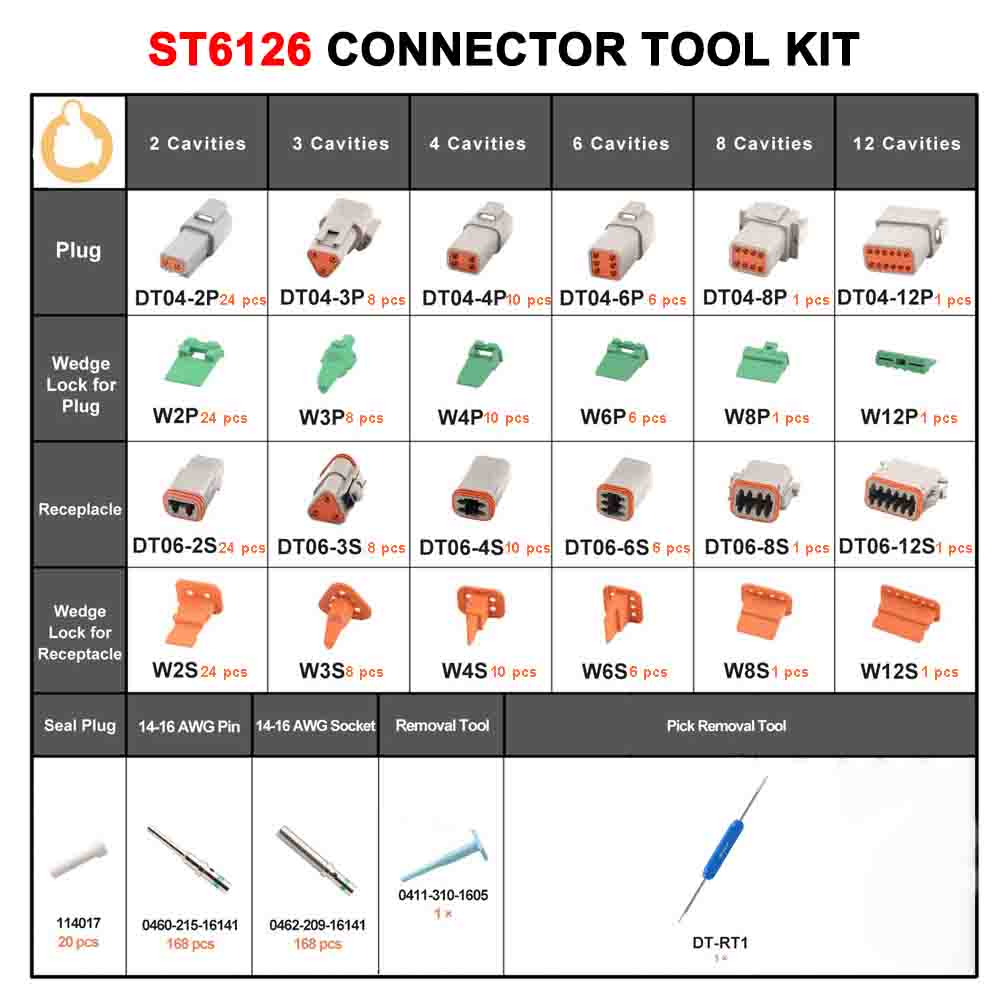

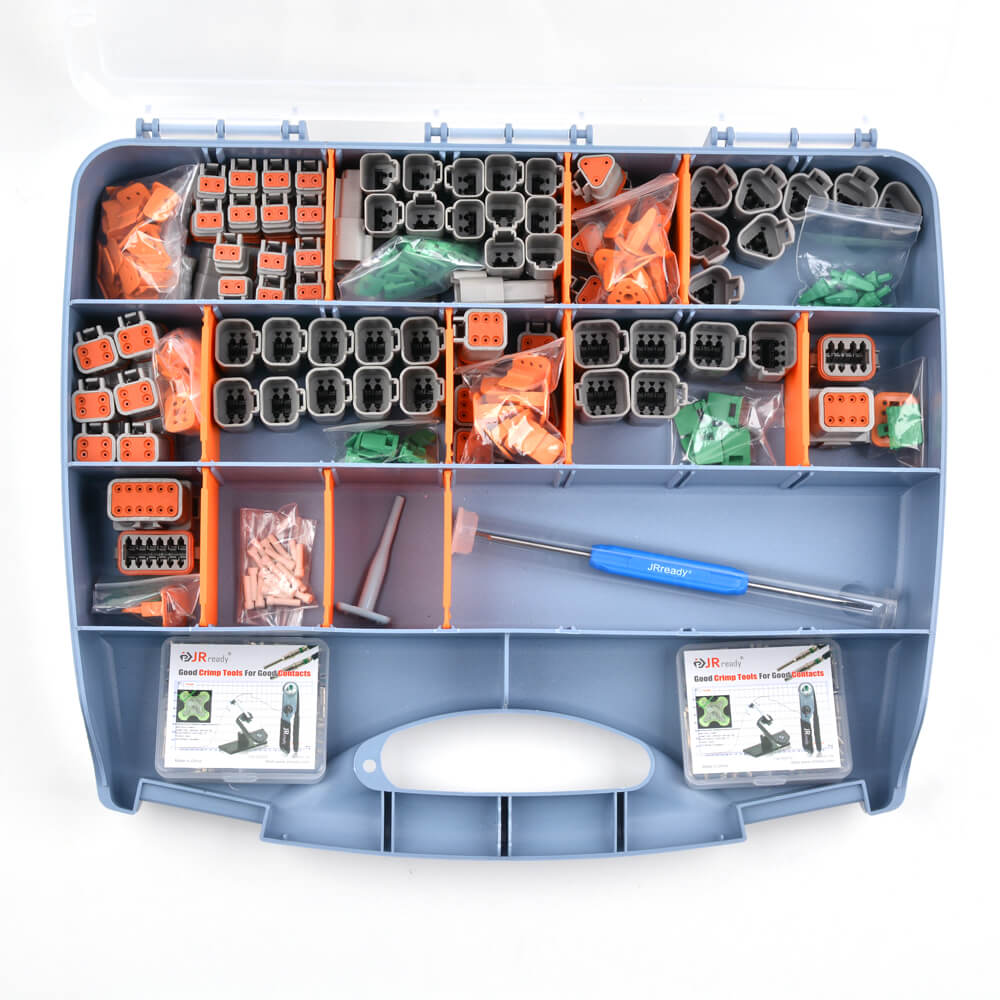

Kit Includes:

24 pcs DT04-2P-E004 (connector)

24 pcs DT06-2S-E004 (connector)

24 pcs W2P (wedge)

24 pcs W2S (wedge)



8 pcs DT04-3P-E004 (connector)

8 pcs DT06-3S-E004 (connector)

8 pcs W3P (wedge)

8 pcs W3S (wedge)



10 pcs DT04-4P-E004 (connector)

10 pcs DT06-4S-E004 (connector)

10 pcs W4P (wedge)

10 pcs W4S-ZZ (wedge)



6 pcs DT04-6P-E004 (connector)

6 pcs DT06-6S-E004 (connector)

6 pcs W6P (wedge)

6 pcs W6S (wedge)



1 pcs DT04-08PB (connector)

1 pcs DT06-08SB (connector)

1 pcs W8P (wedge)

1 pcs W8S (wedge)



1 pcs DT04-12PB (connector)

1 pcs DT06-12SB (connector)

1 pcs W12P (wedge)

1 pcs W12S (wedge)

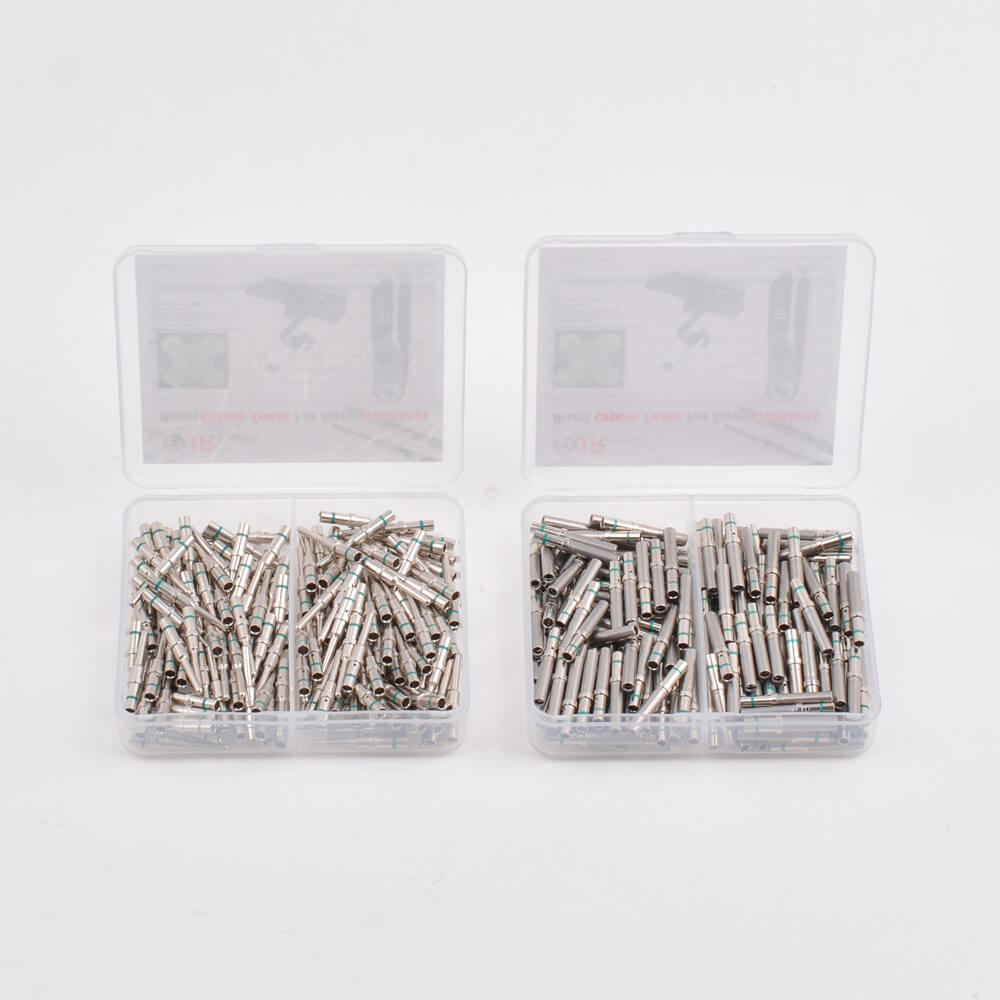

168 pcs 0460-215-16141 (14-16 AWG Solid Pins)

168 pcs 0462-209-16141 (14-16 AWG Solid Sockets)

20 pcs 114017 (Seal plug)

1 pcs 0411-310-1605 Contact Removal Tool (16 AWG)

1 pcs DRT-RT1 Pick Removal Tool
