JRready DAK12B/DAK16B/DAK20B M81969 Installing Tools

JRready DAK12B/DAK16B/DAK20B M81969 Installing Tools

$30.00 USD
$30.00 USD
Sale Sold out
Shipping calculated at checkout.
尺寸

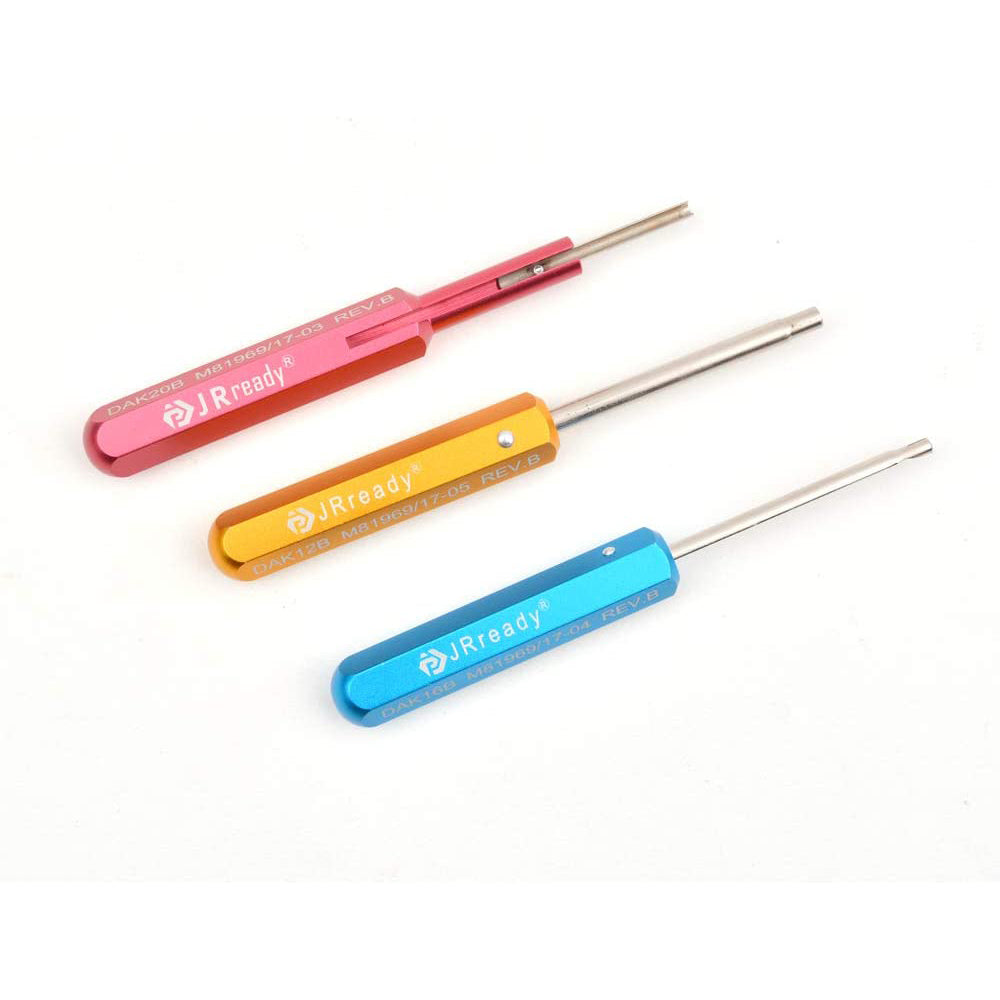

JRready DAK12B/DAK16B/DAK20B M81969 Installing Tools

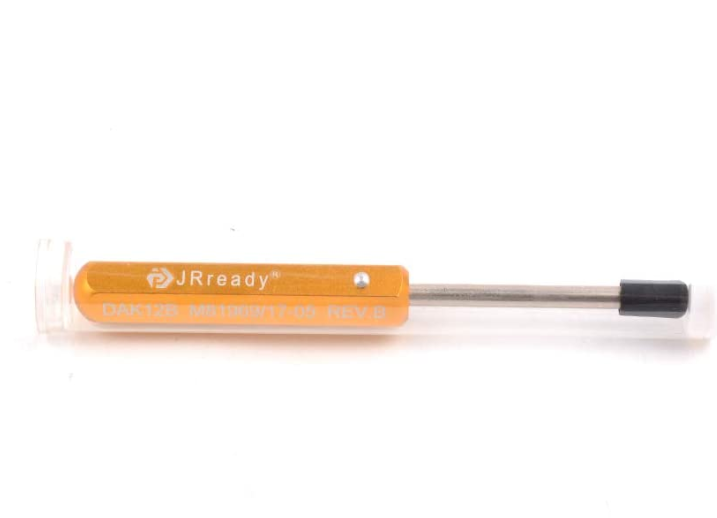

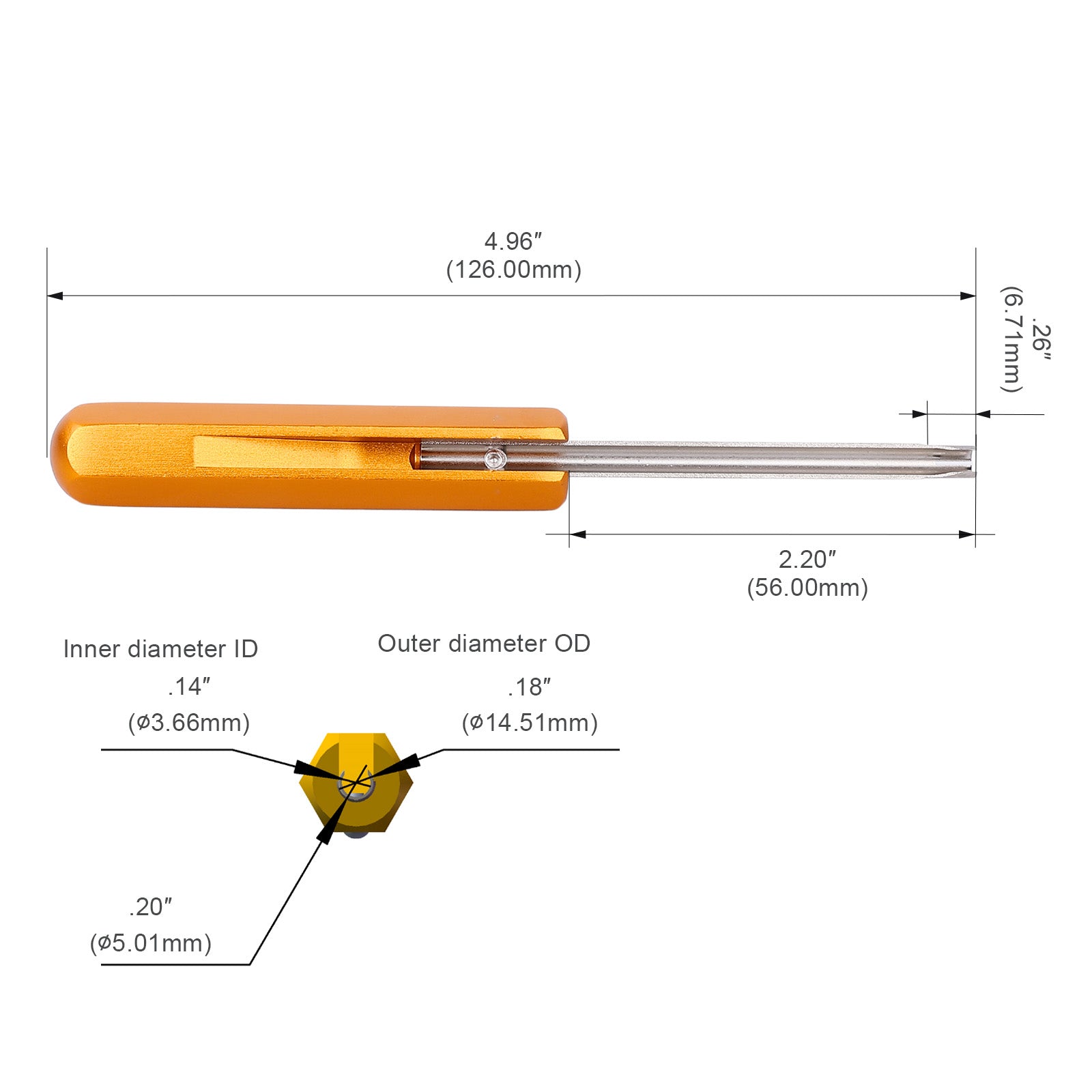

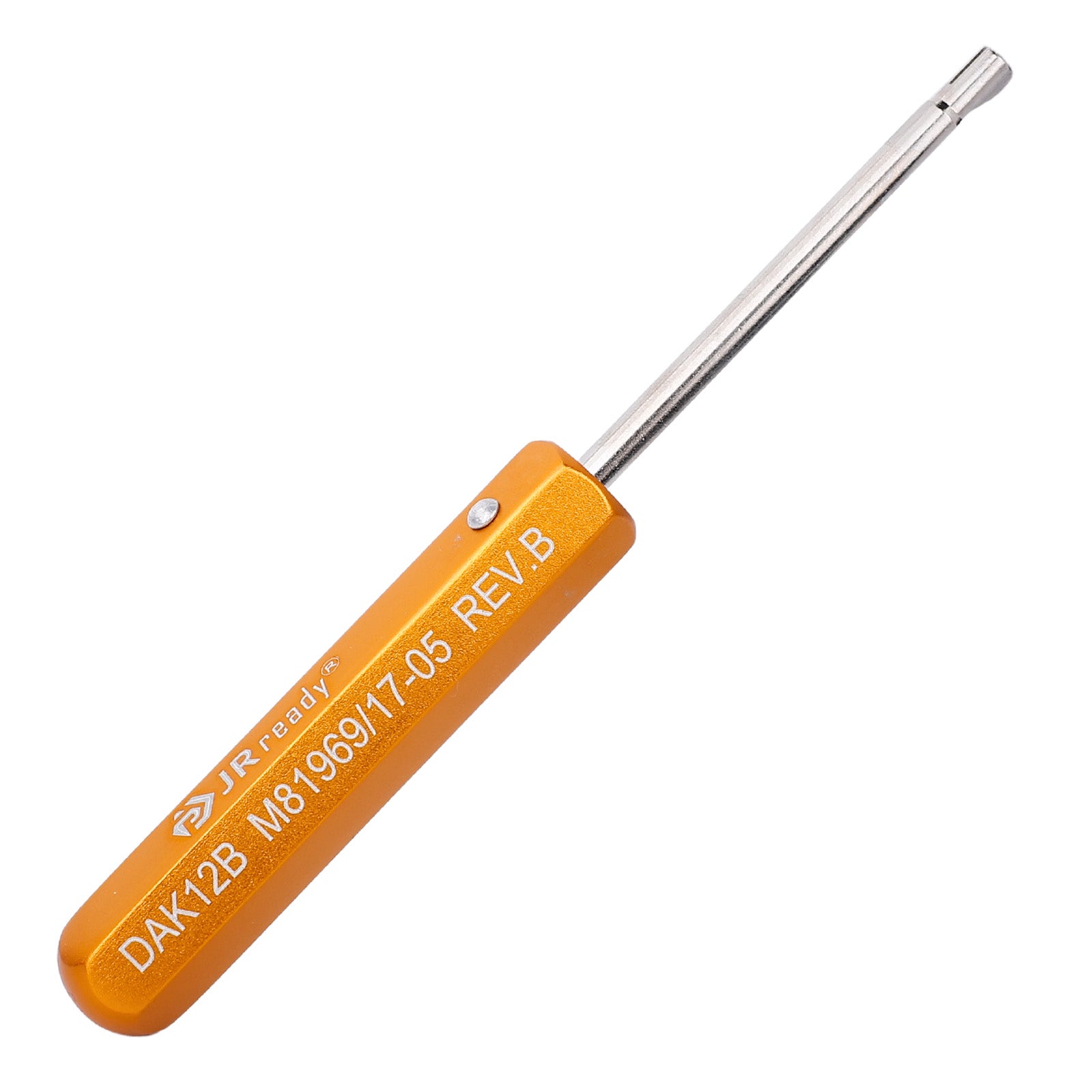

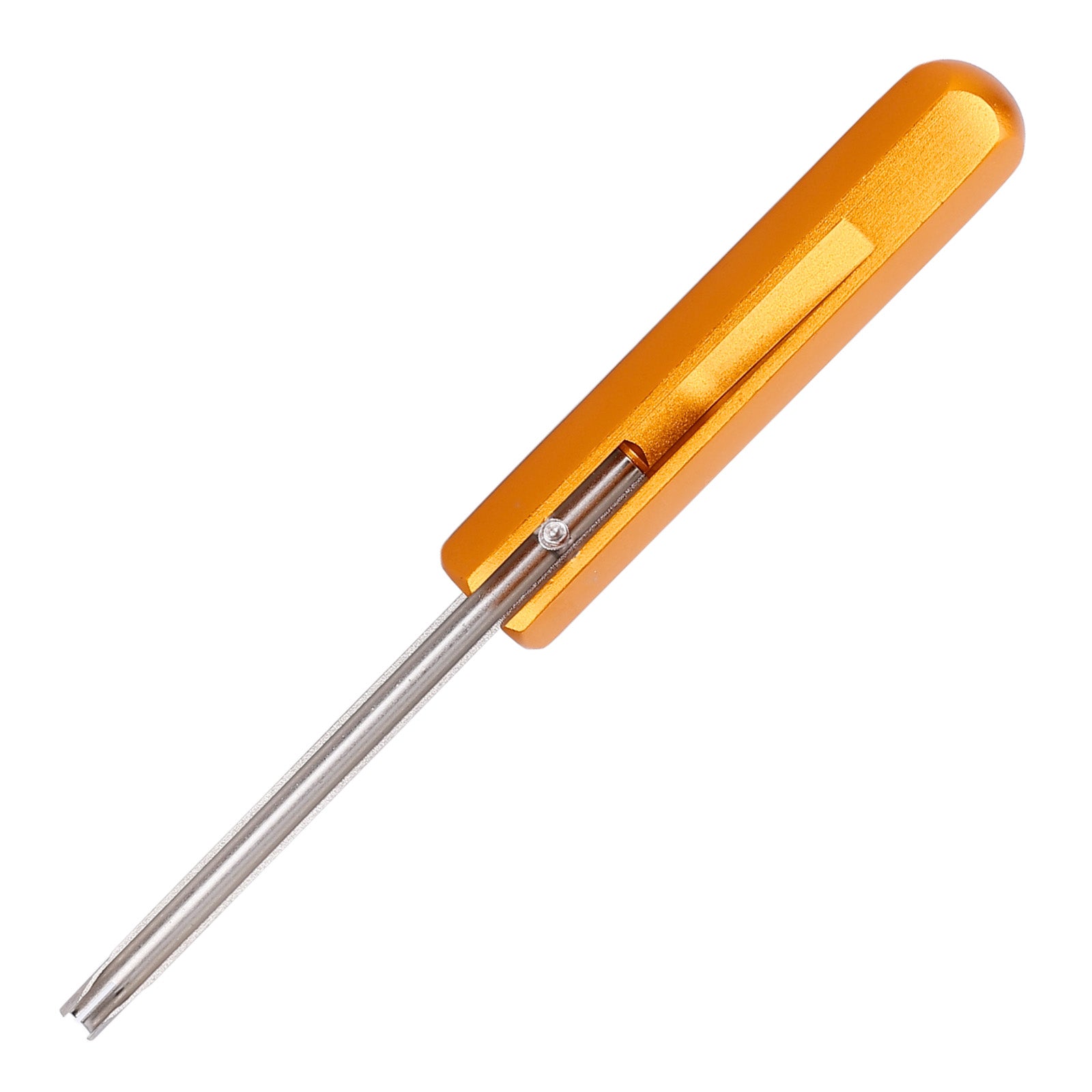

  • DAK12B:Designed according to MIL-C-81969/17-05 REV.B;A small slot on installing rod ensures enough tensile force to install contact into electronic connectors easily

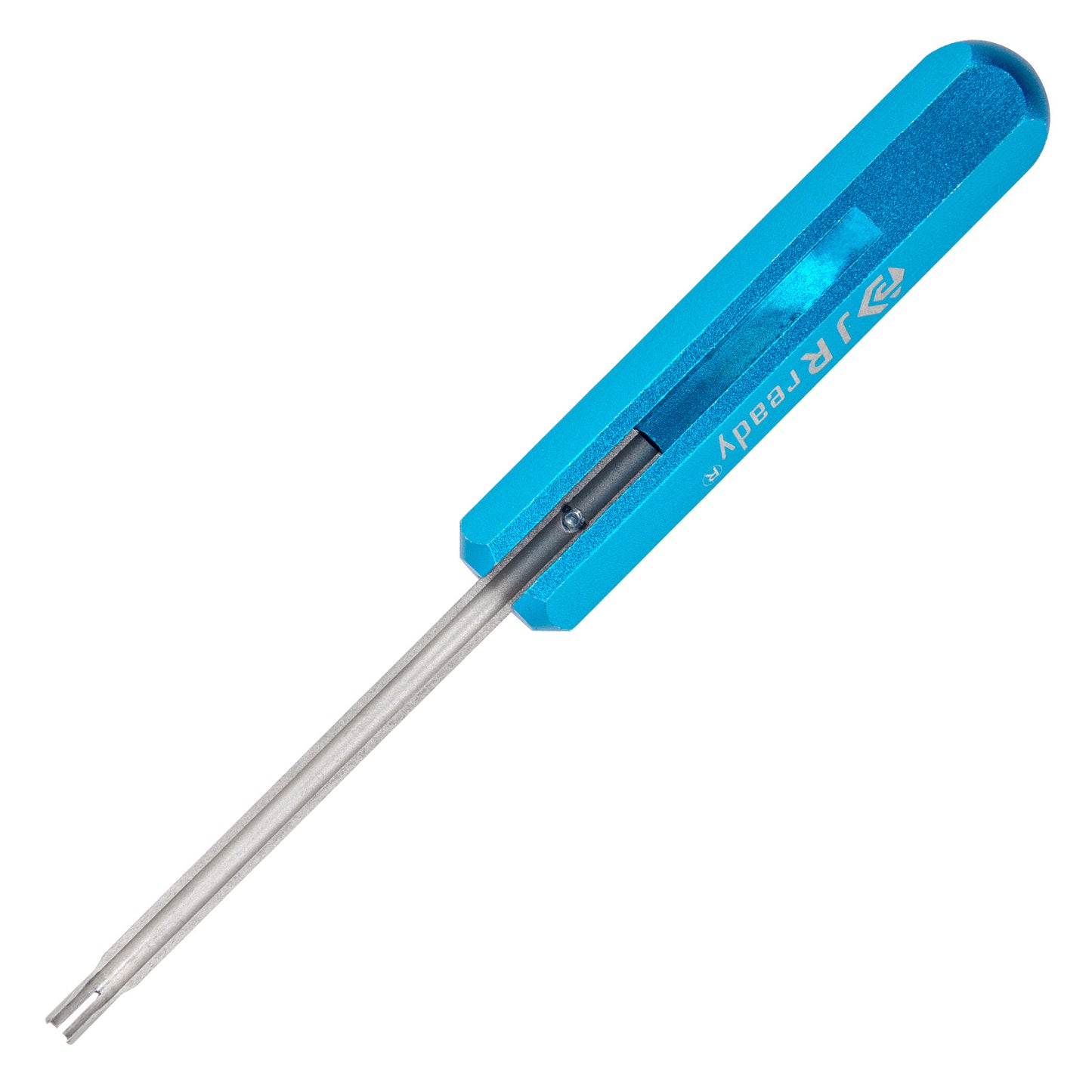

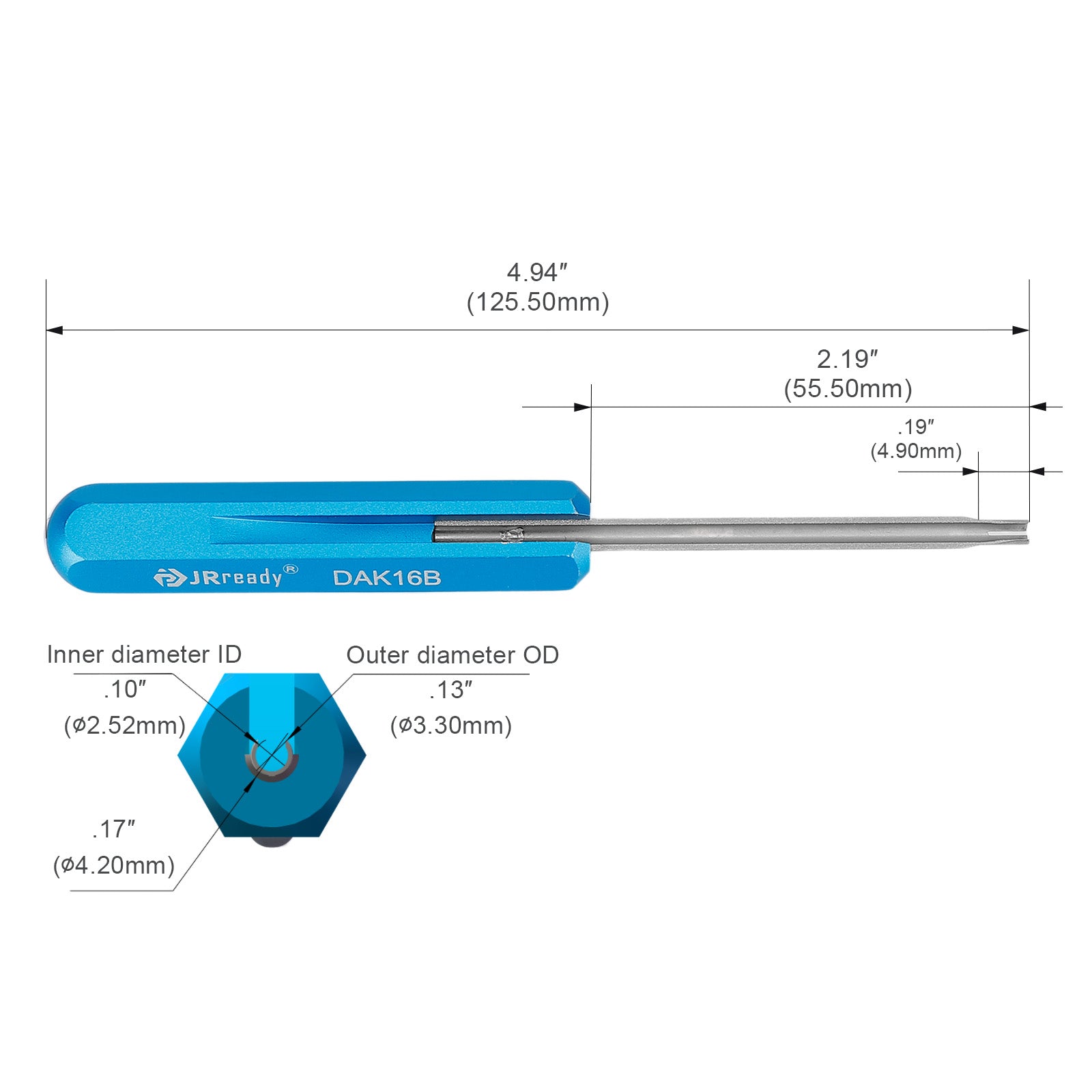

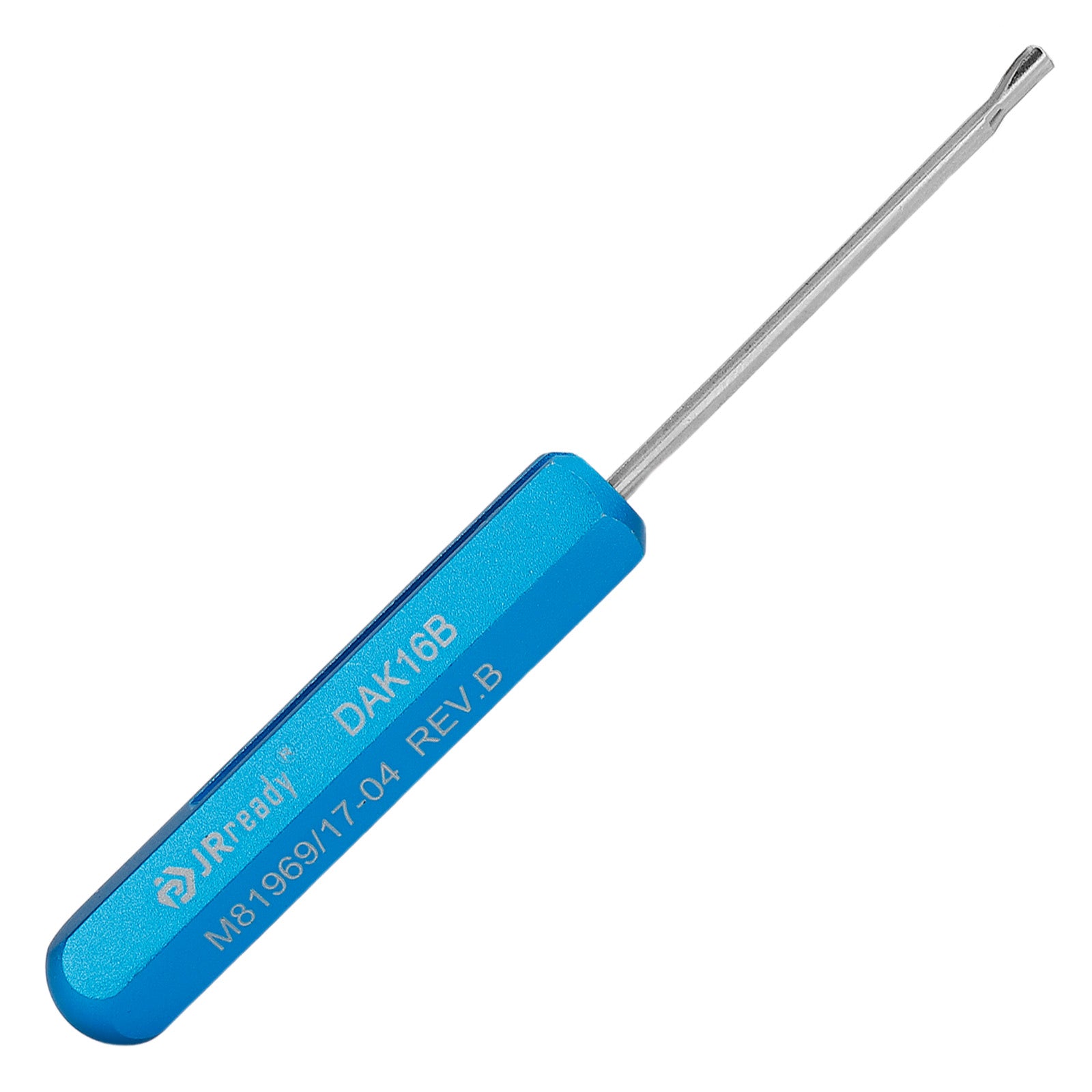

  • DAK16B:Designed according to MIL-C-81969/17-04 REV.8;A small slot of 0.5mm (width)* 4.9mm (length) on installing rod ensures enough tensile force to install contact into electronic connectors easily

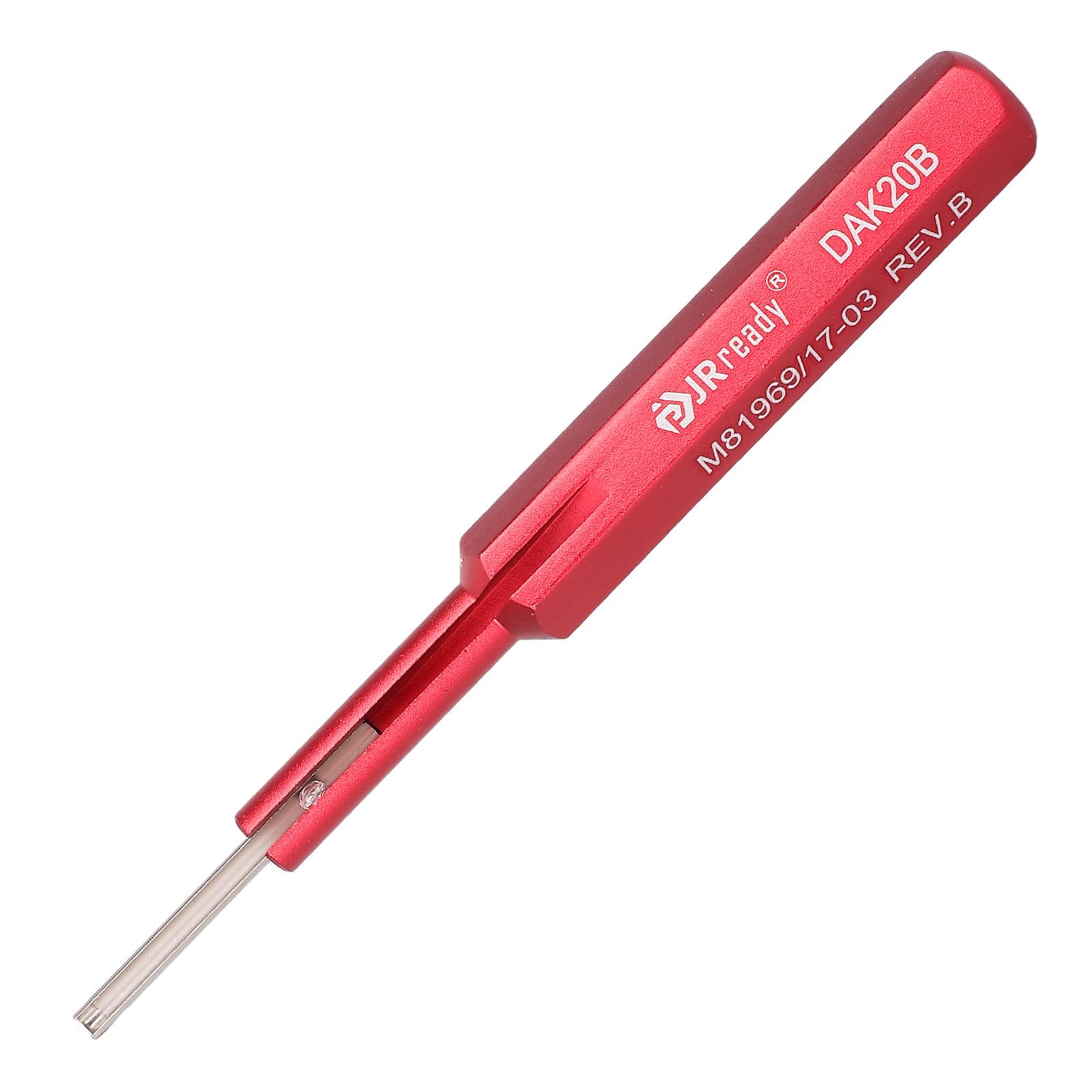

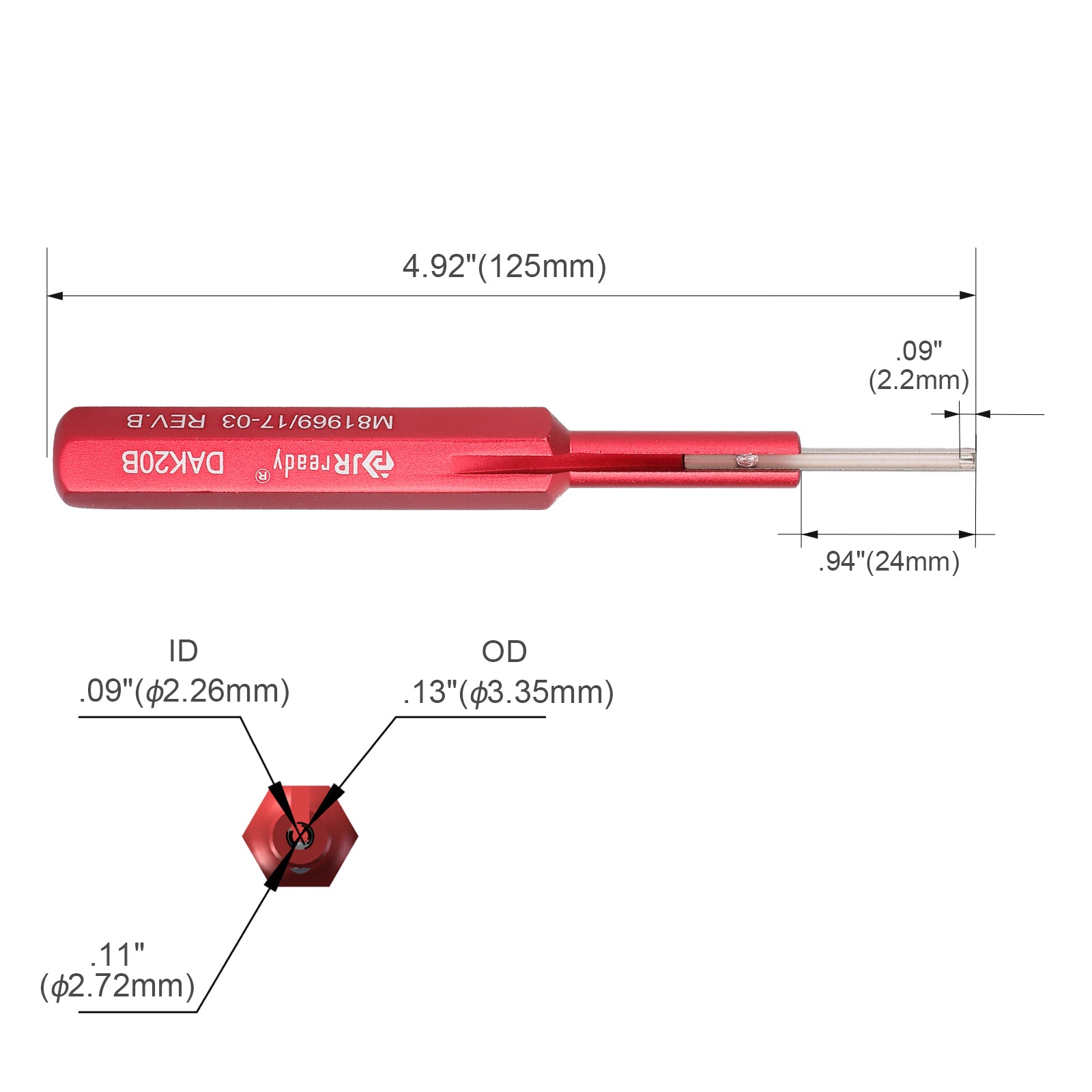

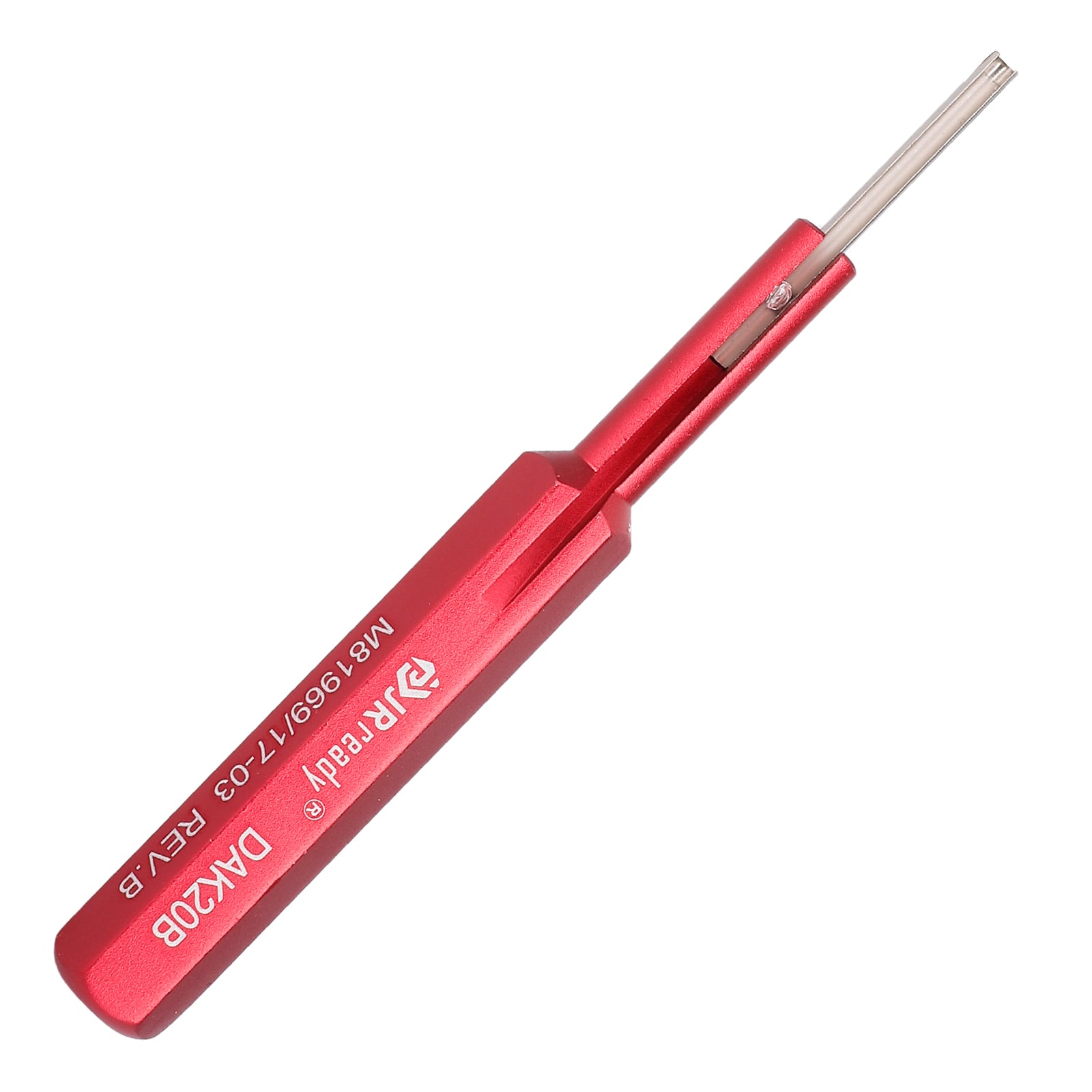

  • DAK20B:Designed according to MIL-C-81969/17-03 REV.B;A small slot on installing rod ensures enough tensile force to install contact into electronic connectors easily
  • Small size, convenient to carry，good choice for outdoor using

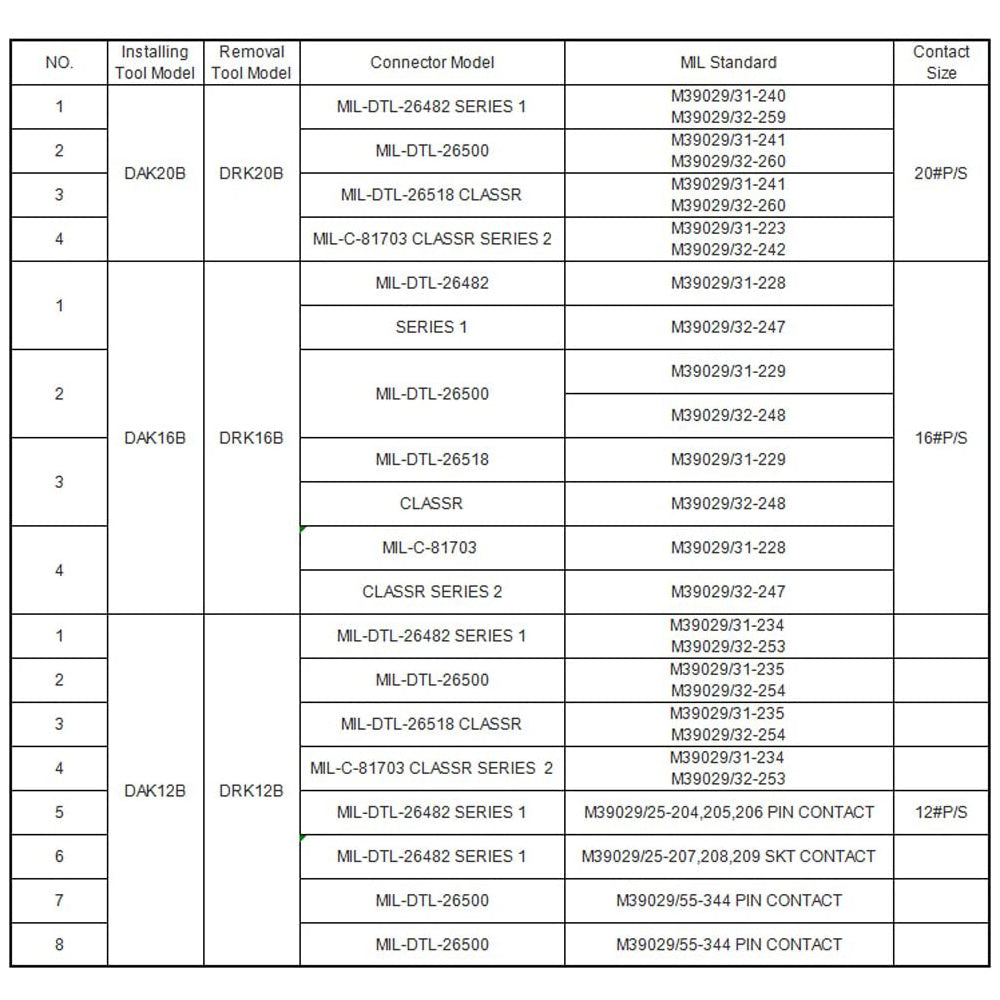

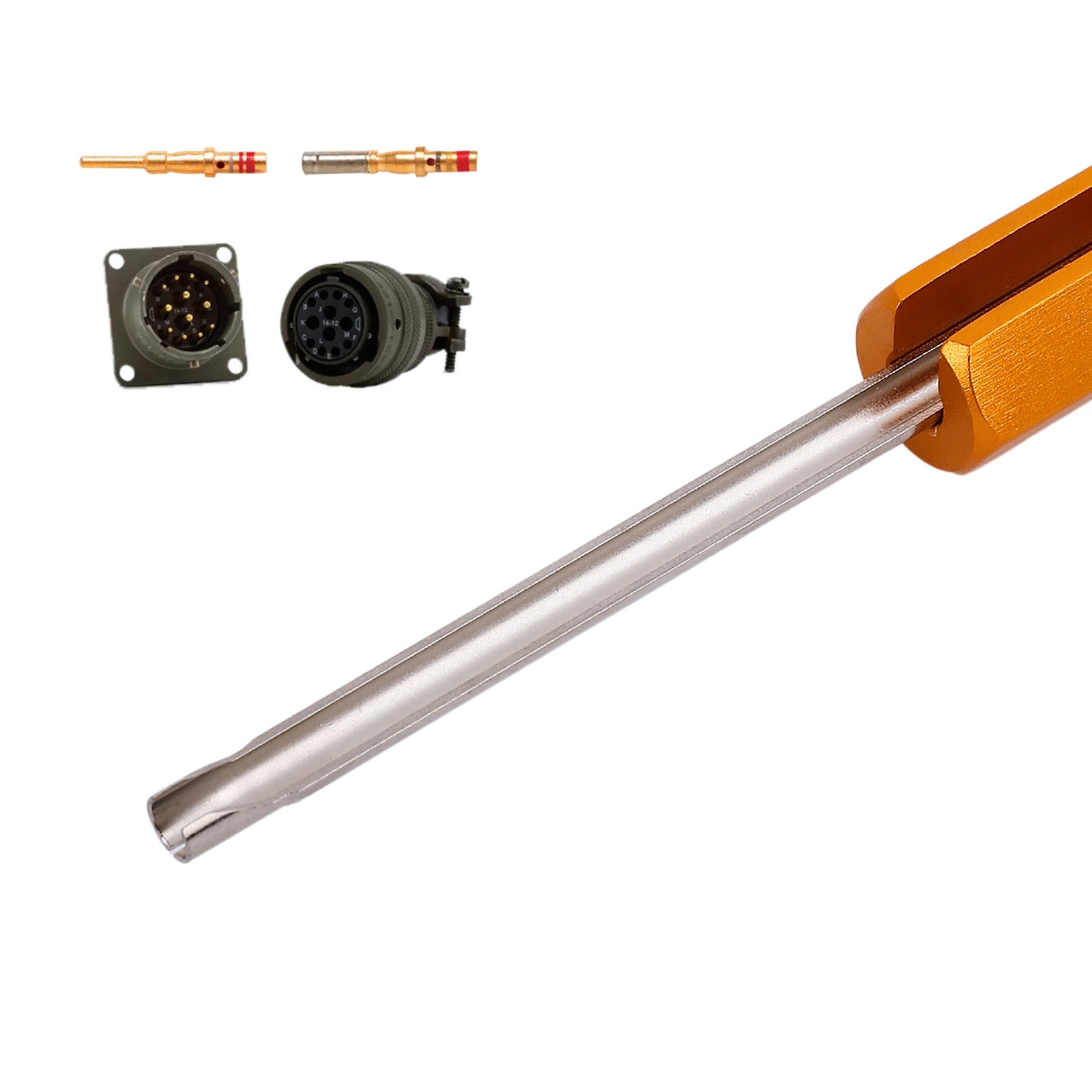

  • DAK12B Applications


    Connector Model：MIL-DTL-26482 series 1 MIL Standard: M39029/31-234 M39029/32-253
    Connector Model：MIL-DTL-26500 MIL Standard: M39029/31-235 M39029/32-254
    Connector Model：MIL-DTL-26518 CLASSR MIL Standard: M39029/31-235 M39029/32-254
    Connector Model：MIL-C-81703 CLASSR series 2 MIL Standard: M39029/31-234 M39029/32-253
    Connector Model：MIL-DTL-26482 SERIES 1 MIL Standard: M39029/25-204,205,206 PIN CONTACT
    Connector Model：MIL-DTL-26482 SERIES 1 MIL Standard: M39029/25-207,208,209 SKT CONTACT
    Connector Model：MIL-DTL-26500 MIL Standard: M39029/55-344 PIN CONTACT
    Connector Model：MIL-DTL-26500 MIL Standard: M39029/55-344 PIN CONTACT

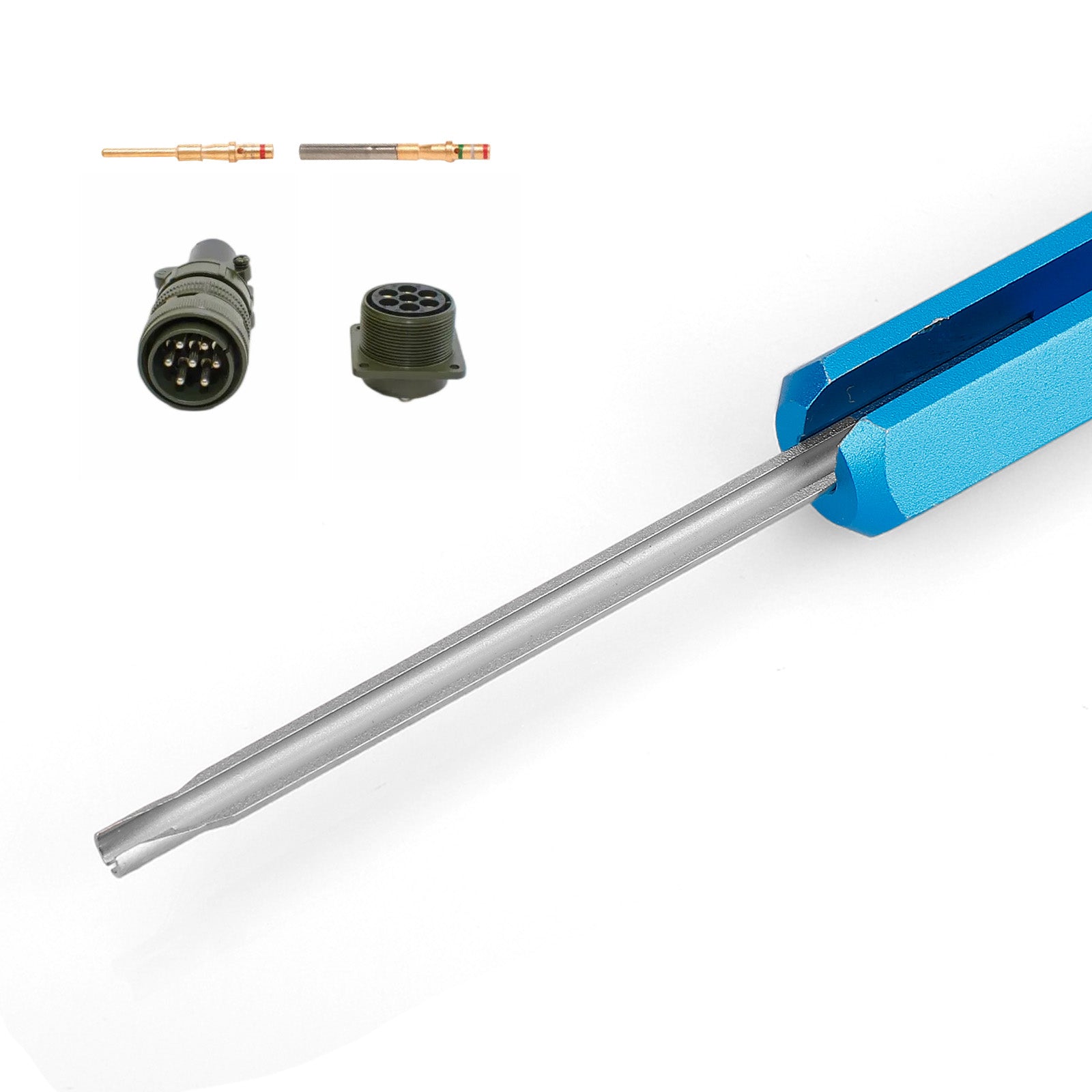

    DAK16B Applications
    Connector Model：MIL-DTL-26482 SERIES 1
    Connector Model：MIL-DTL-26500
    Connector Model：MIL-DTL-26518 CLASSR
    Connector Model：MIL-C-81703 CLASSR SERIES 2

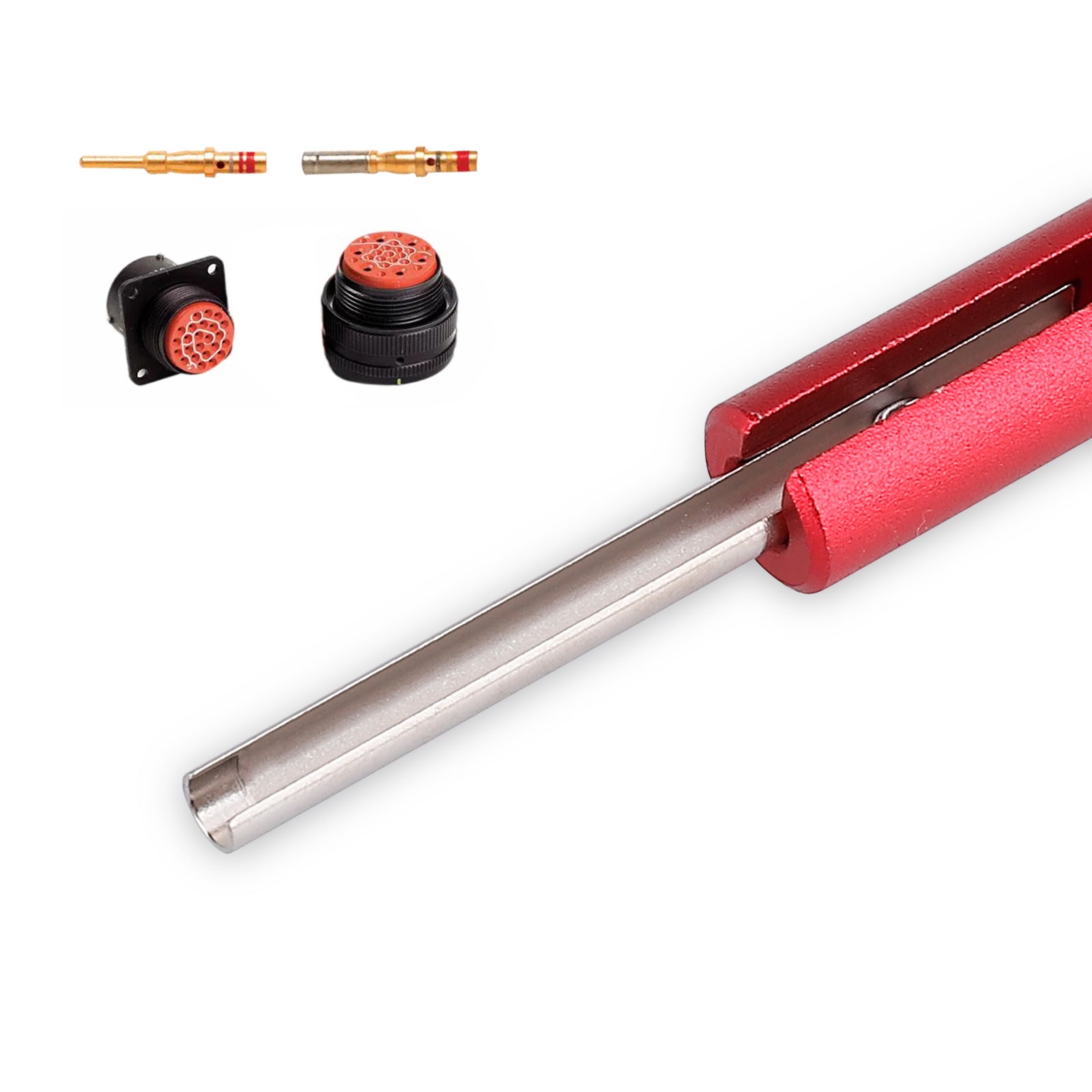

    DAK20B Applications
    Connector Model：MIL-DTL-26482 SERIES 1
    Connector Model：MIL-DTL-26500
    Connector Model：MIL-DTL-26518 CLASSR
    Connector Model：MIL-C-81703 CLASSR SERIES 2

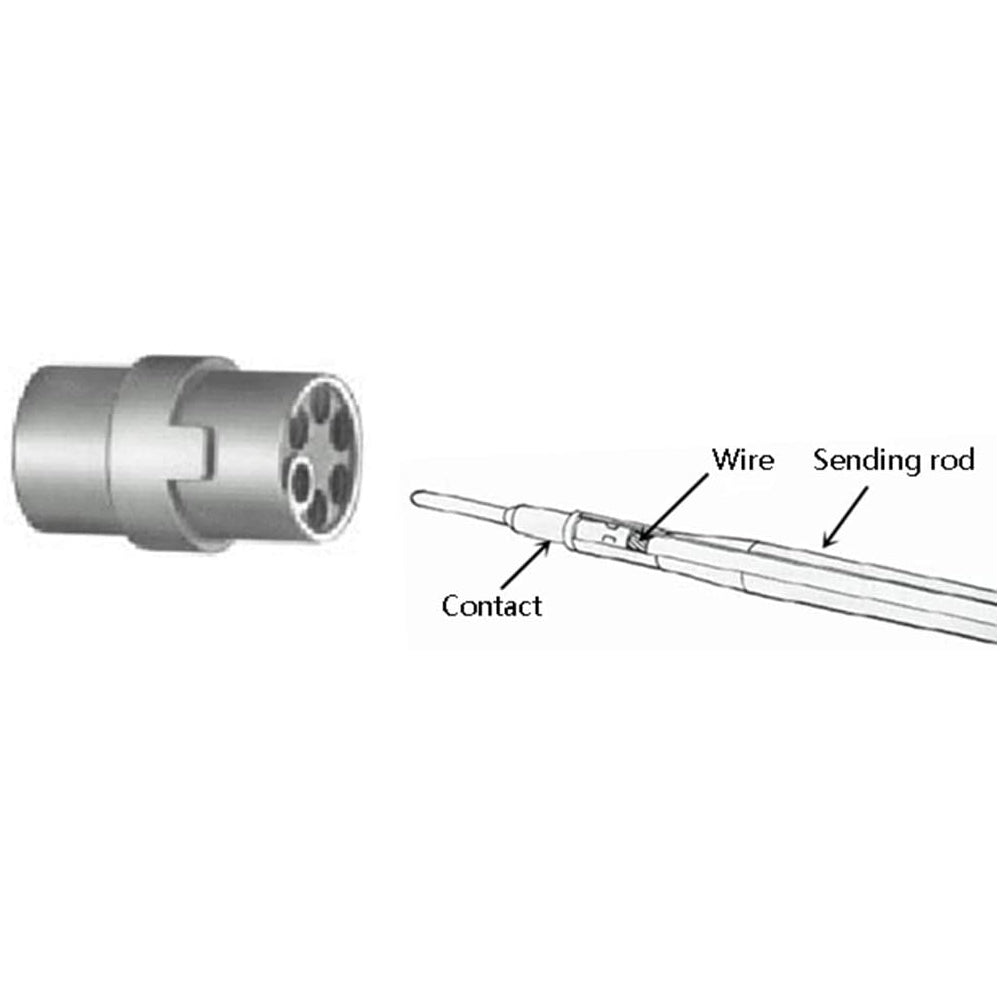

    Installing Instruction


    Step 1: Prepare the tool & put the crimped contact into the tool.
    Step 2: Adjust the crimped contact to the right position.
    Step 3: Push the crimped contact gently until it reaches the right position.
    Step 4: Remove the tool out.

    •
