JRready TH531-E Crimper Turret Head for HARTING HAN E HAN EE series Connectors 16 A Contacts
JRready TH531-E Crimper Turret Head for HARTING HAN E HAN EE series Connectors 16 A Contacts
Regular price
$75.00 USD
Regular price
Sale price
$75.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Feature
- There is no need to change the positioning device for crimping different standard contacts, just rotate the positioning core.
- Adjustable for a wide range of wire and connector sizes.
- Gives a standardized and accurate crimp every time.
- Suitable for 16A Sockets & Pins in Han E series connectors.
- Used with Crimp contact tool: JRD-ASF1 M22520/1-01

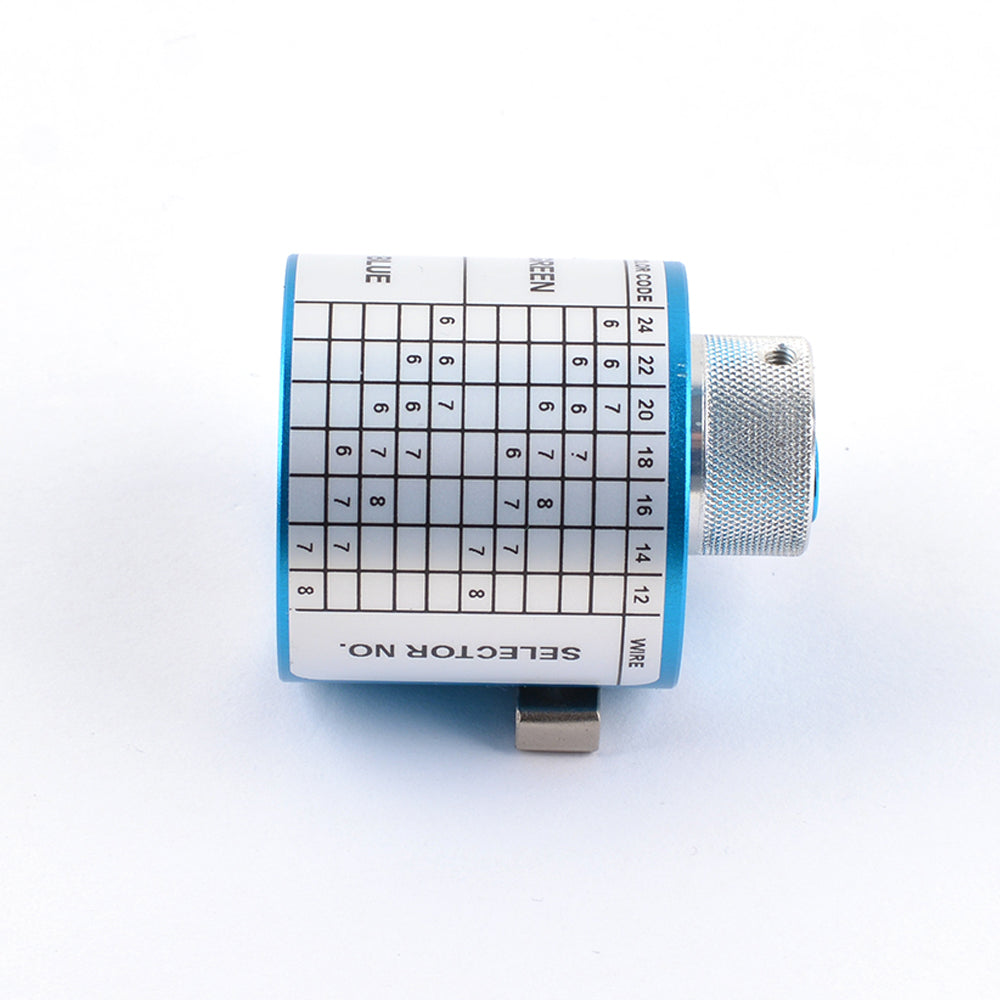

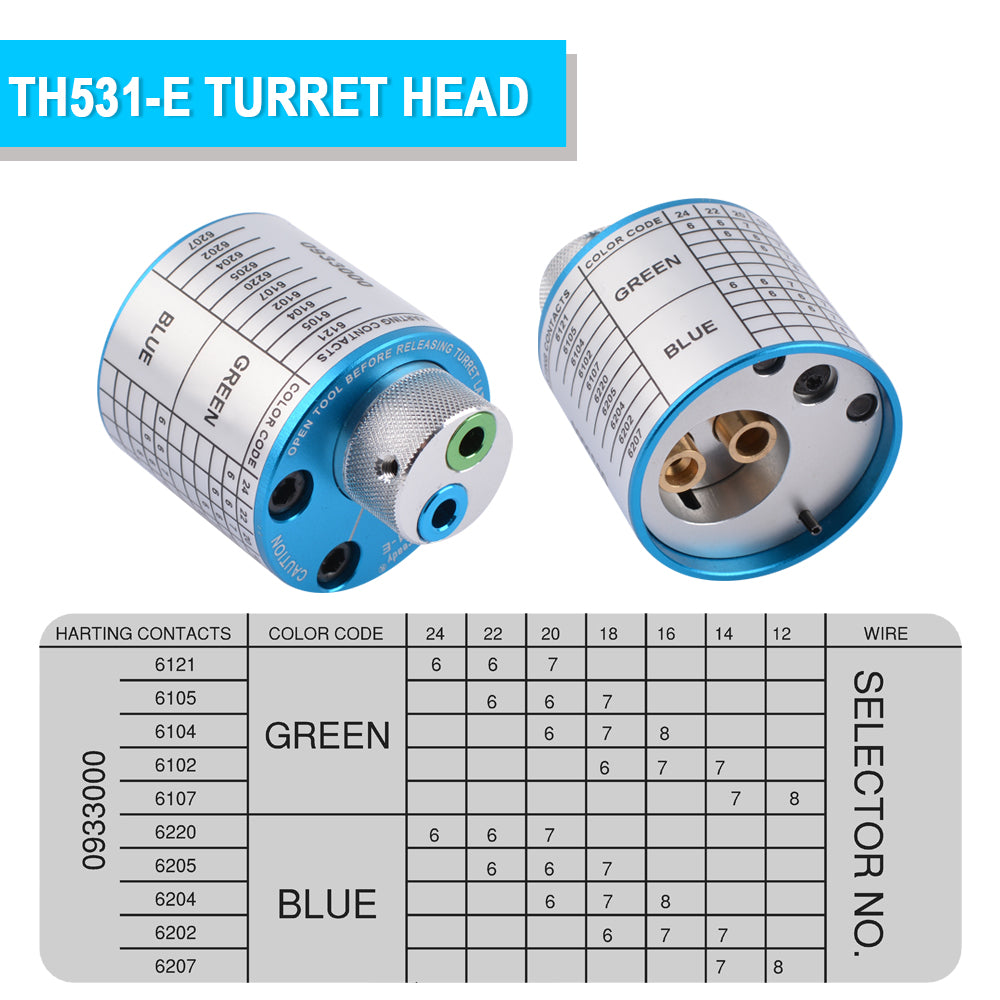

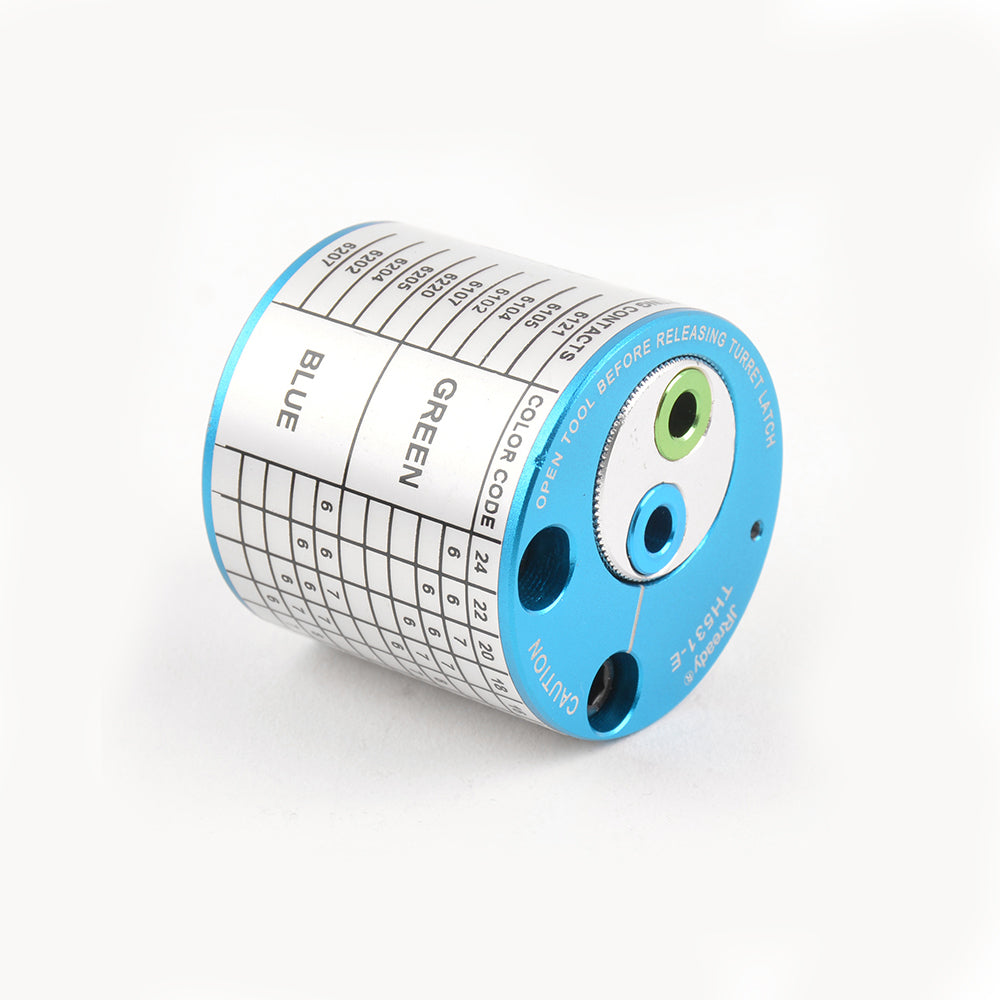

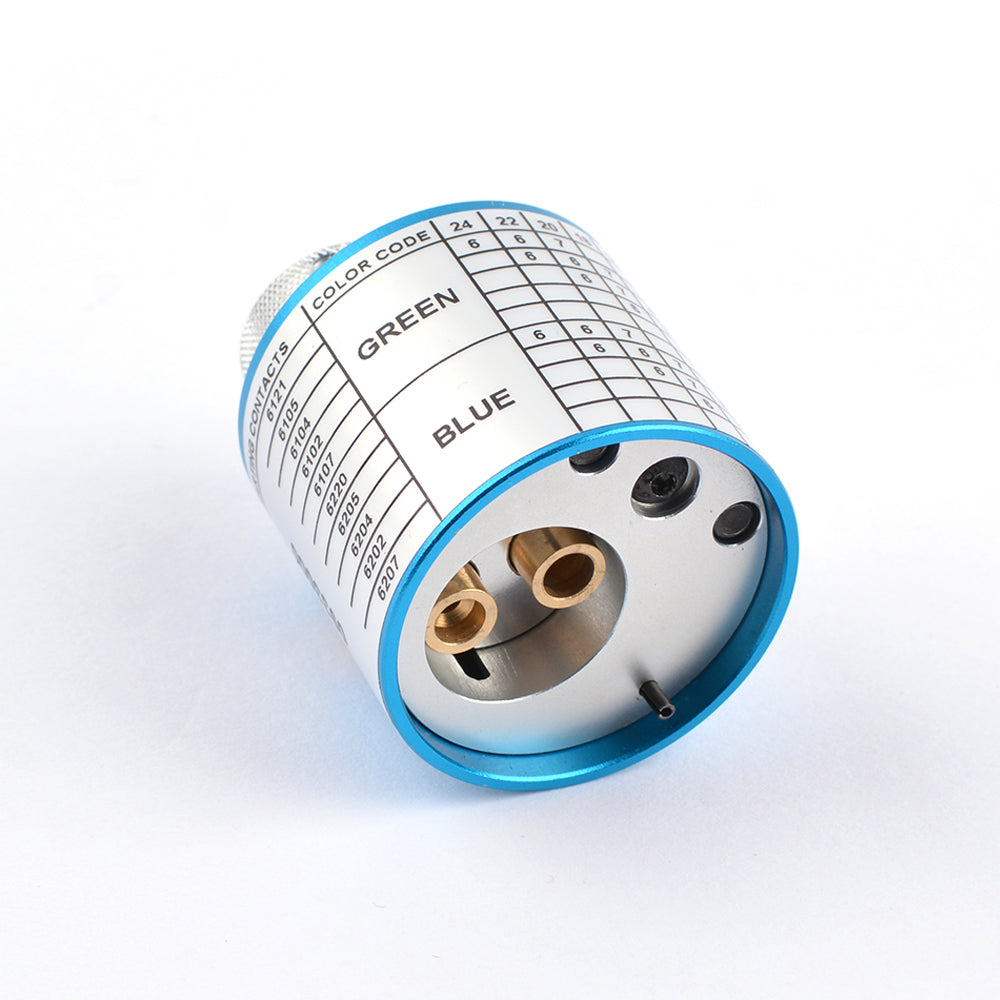

TH531-E turret positioner contains two different specifications of the positioning cores.

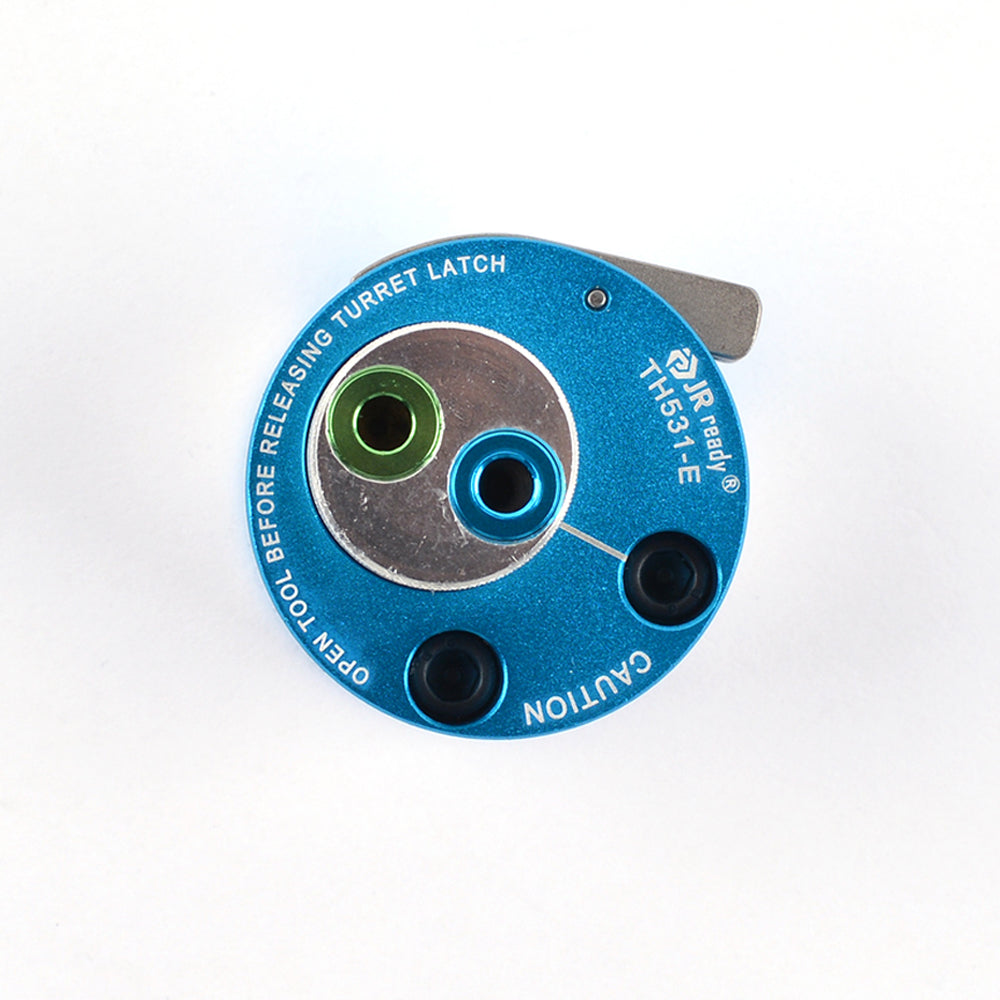

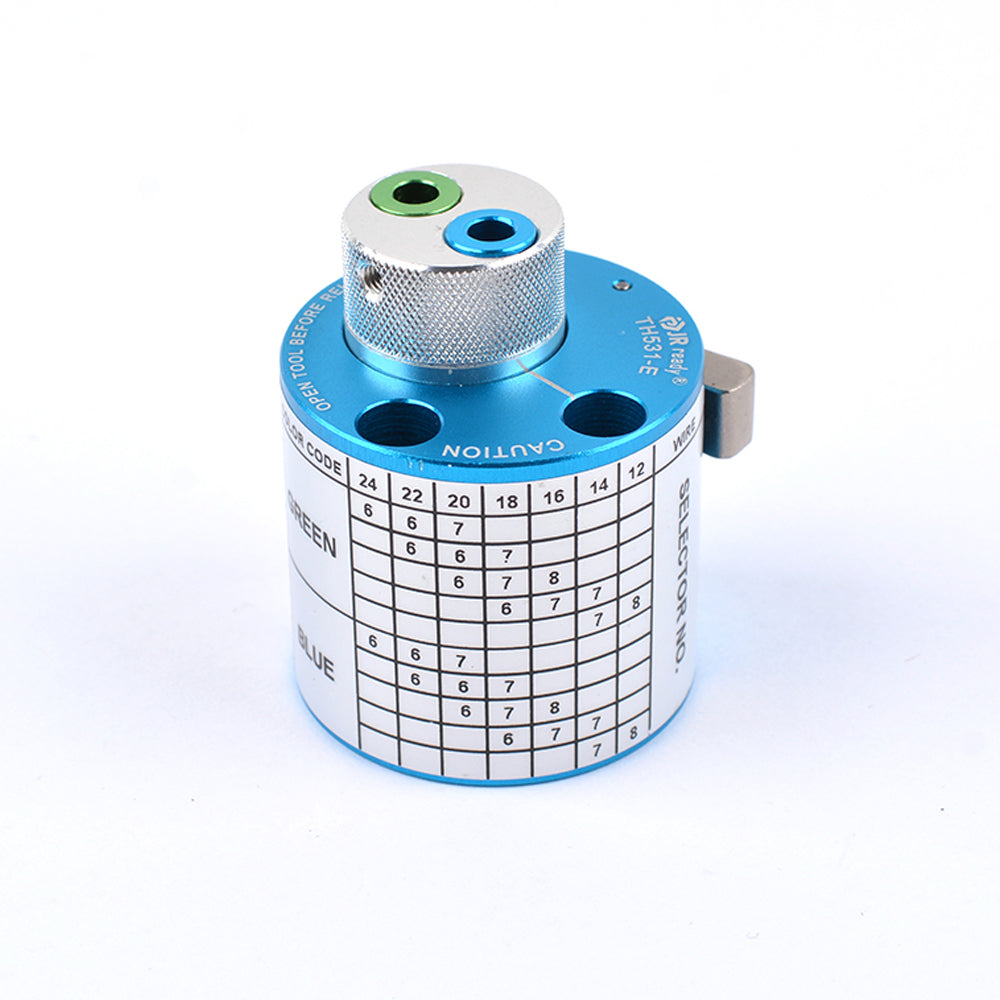

Each core is corresponding to the different positioning core turret colors (green, blue), rotate to the right color according to the different terminal specifications.
Application
| Name | Contact drawing | Harting connector model | Harting contact model | Wain connector model | Wain contact model |
| 16A contact |
|
HAN E（09330062602 09330102602 09330102702） HAN EE（0932010300 09320183001 09320323001） HAN EE（09320403001 09320643001） |
09330006127 | HAC HEC HEE HM HK insert | CESM -0.37 |
| 09330006121 | CESM -0.5 | ||||
| 09330006114 | CESM -0.75 | ||||
| 09330006105 | CESM -1.0 | ||||
| 09330006104 | CESM -1.5 | ||||
| 09330006102 | CESM -2.5 | ||||
| 09330006106 | CESM -3.0 | ||||
| 09330006107 | CESM -4.0 | ||||
| HAN E（09330062702 09330102702） HAN EE（09320103101 09320183101） HAN EE（09320403101 09320643101） |
09330006227 | CESF-0.37G | |||
| 09330006220 | CESF-0.5G | ||||
| 09330006214 | CESF-0.75G | ||||
| 09330006205 | CESF-1.0G | ||||
| 09330006204 | CESF-1.5G | ||||
| 09330006202 | CESF-2.5G | ||||
| 09330006206 | CESF-3.0G | ||||
| 09330006207 | CESF-4.0G | ||||
| 09330006117 | CEGM -0.37 | ||||
| 09330006122 | CEGM -0.5 | ||||
| 09330006115 | CEGM -0.75 | ||||
| 09330006118 | CEGM -1.0 | ||||
| 09330006116 | CEGM -1.5 | ||||
| 09330006123 | CEGM -2.5 | ||||
| / | CEGM -3.0 | ||||
| 09330006119 | CEGM -4.0 | ||||
| 09330006217 | CEGF-0.37G | ||||
| 09330006222 | CEGF-0.5G | ||||
| 09330006215 | CEGF-0.75G | ||||
| 09330006218 | CEGF-1.0G | ||||
| 09330006216 | CEGF-1.5G | ||||
| 09330006223 | CEGF-2.5G | ||||
| / | CEGF-3.0G | ||||
| 09330006221 | CEGF-4.0G |
