JRready tools

JRready ST6128 559 PCS DT Connector Kits (Equivalent to Deutsch DT Automotive Connectors) & 16# Solid Contacts 14-16AWG & HDT-48-00 Crimper For Motorcycle,Truck, Marine

JRready ST6128 559 PCS DT Connector Kits (Equivalent to Deutsch DT Automotive Connectors) & 16# Solid Contacts 14-16AWG & HDT-48-00 Crimper For Motorcycle,Truck, Marine

$320.00 USD
$320.00 USD
Sale Sold out
Shipping calculated at checkout.
Size
JRready ST6128 559 PCS DT connector Kits Sealed Weatherproof Automotive Connectors 14-16AWG Solid Contacts with JRD-HDT-48 Crimper
  • Package List: 6 types of connectors and wedgelocks ranging from 2 to 12 cavities,16# pin/socket 14-16 AWG, seal plug, contact removal tool, JRD-HDT-48 crimper.
  • Connector Material: PA66 nylon, durable and waterproof, convenient to connect and disconnect, suitable for long time use.
  • High Precision Contact: The terminals have strong stability and conductivity, easy to crimping with wire and installing into connector.
  • Wide Application:The strong stability allows them to be widely used in car, motorcycle, truck, boats, marine etc

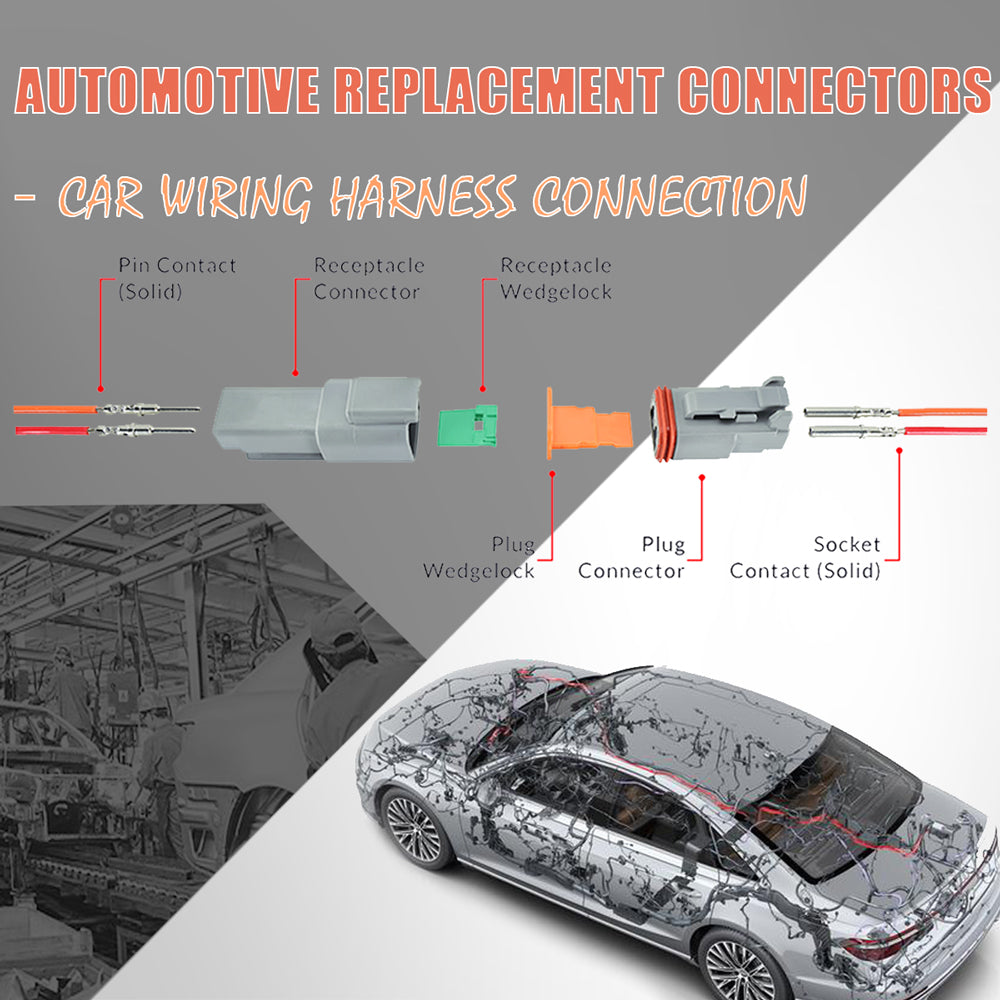

JRREADY DT Series Connector Set Connector/Terminal/Seal Plug

  • ANTI-OXIDATION
  • WATER AND DUST PROOF
  • AGING RESISTANCE
  • EASY TO CONNECT AND DISCONNECT
  • DT housings are available in 2, 3, 4, 6, 8, and 12 pin counts and use size 16 contacts, each with 13-amp continuous capacity. The housings feature an integrated latch for mating.

DETAILS

  • Series: DT Series
  • Material:Connector-Nylon PA66,Terminal-Nickel
  • Current Rating: 13 Amps
  • Contact Size: 16
  • Wire Size: 14, 16, 18, 20

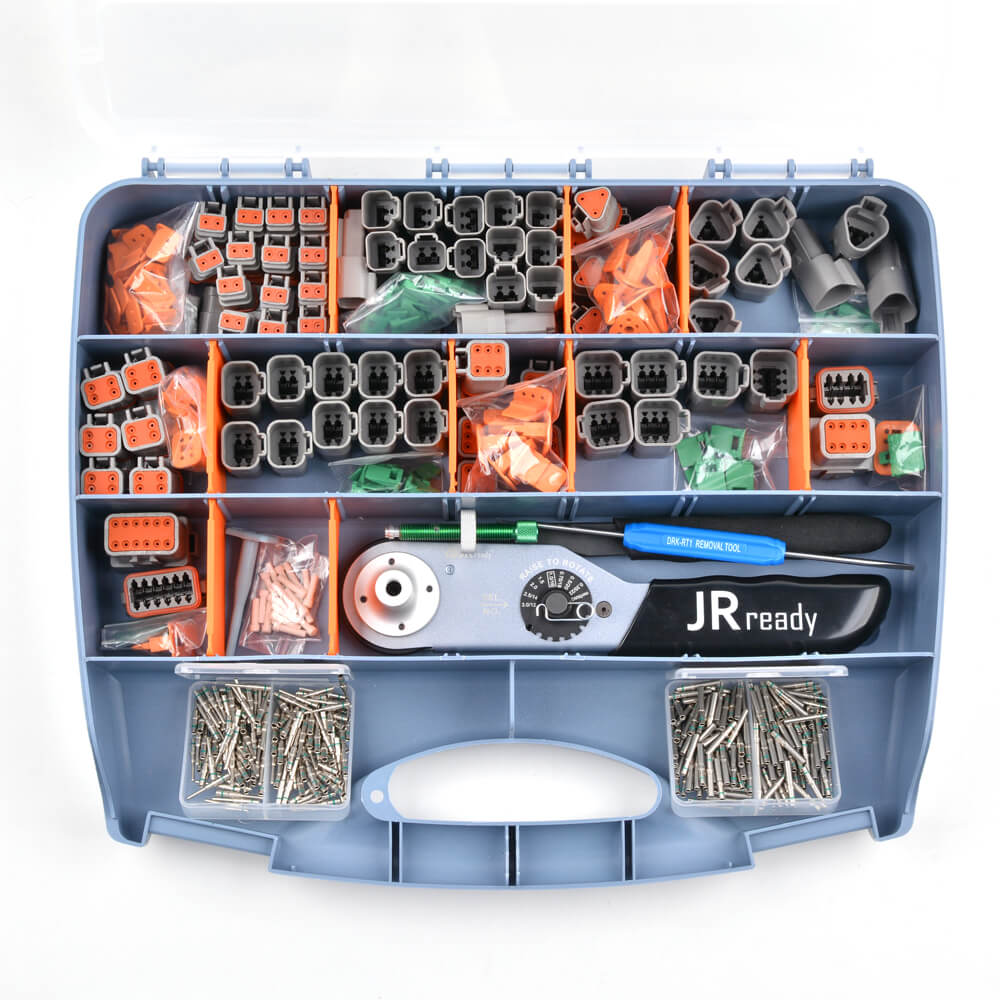

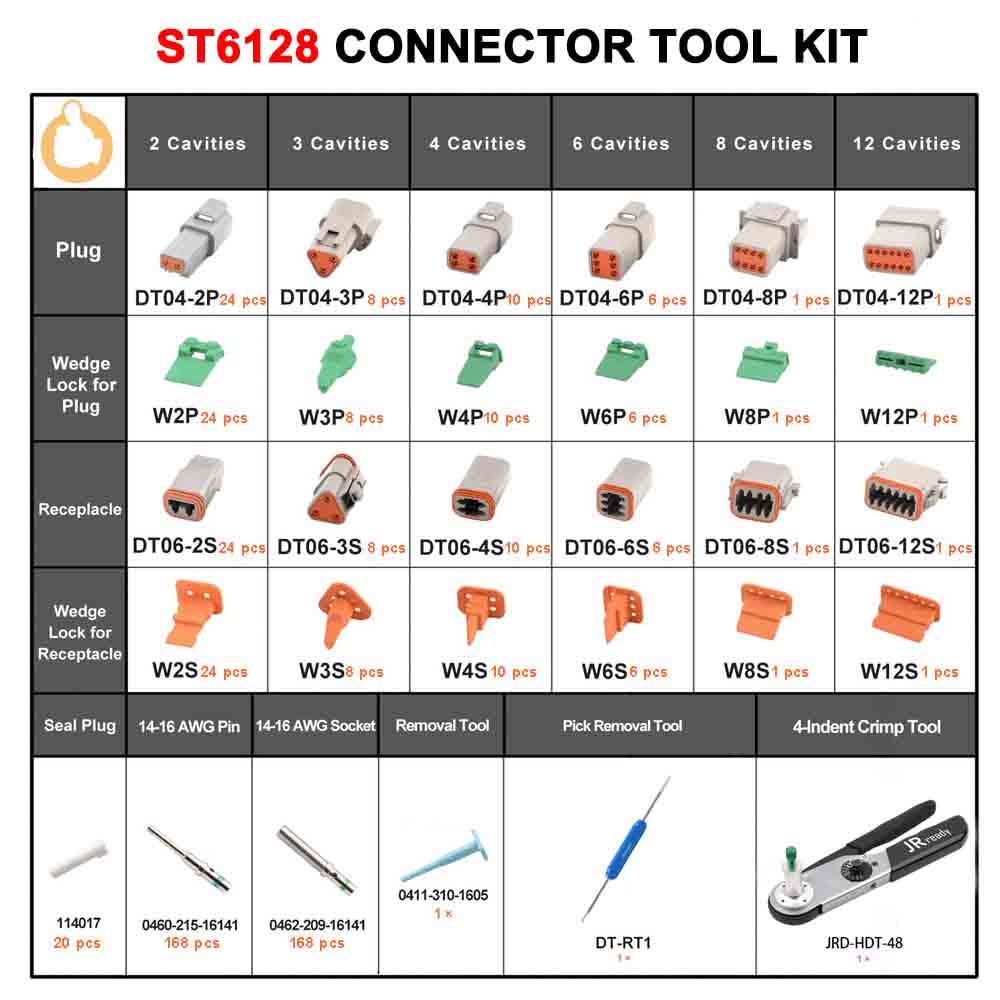

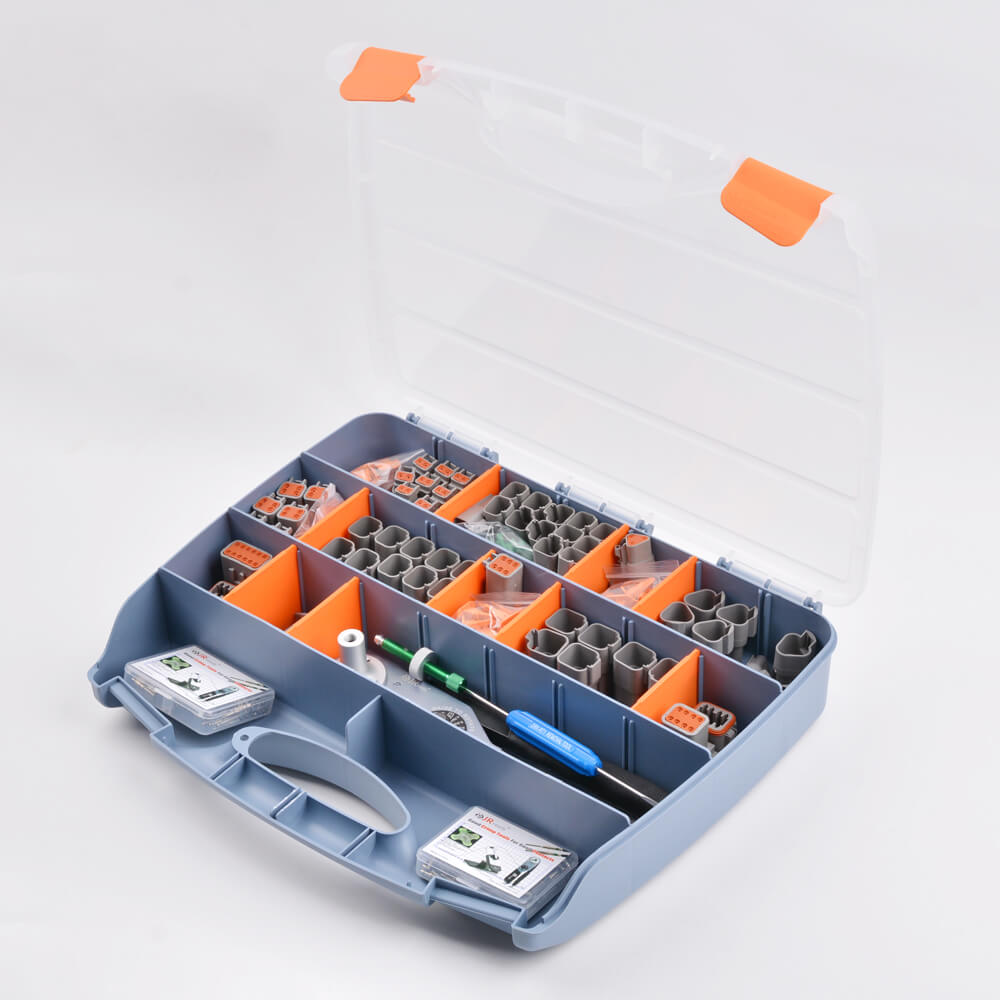

Kit Includes:

24 pcs DT04-2P-E004 (connector);24 pcs DT06-2S-E004 (connector);24 pcs W2P (wedge);24 pcs W2S (wedge)

8 pcs DT04-3P-E004 (connector);8 pcs DT06-3S-E004 (connector);8 pcs W3P (wedge);8 pcs W3S (wedge)

10 pcs DT04-4P-E004 (connector);10 pcs DT06-4S-E004 (connector);10 pcs W4P (wedge);10 pcs W4S (wedge)

6 pcs DT04-6P-E004 (connector);6 pcs DT06-6S-E004 (connector);6 pcs W6P (wedge);6 pcs W6S (wedge)

1 pcs DT04-08PB (connector);1 pcs DT06-08SB (connector);1 pcs W8P (wedge);1 pcs W8S (wedge)

1 pcs DT04-12PB (connector);1 pcs DT06-12SB (connector);1 pcs W12P (wedge);1 pcs W12S (wedge)

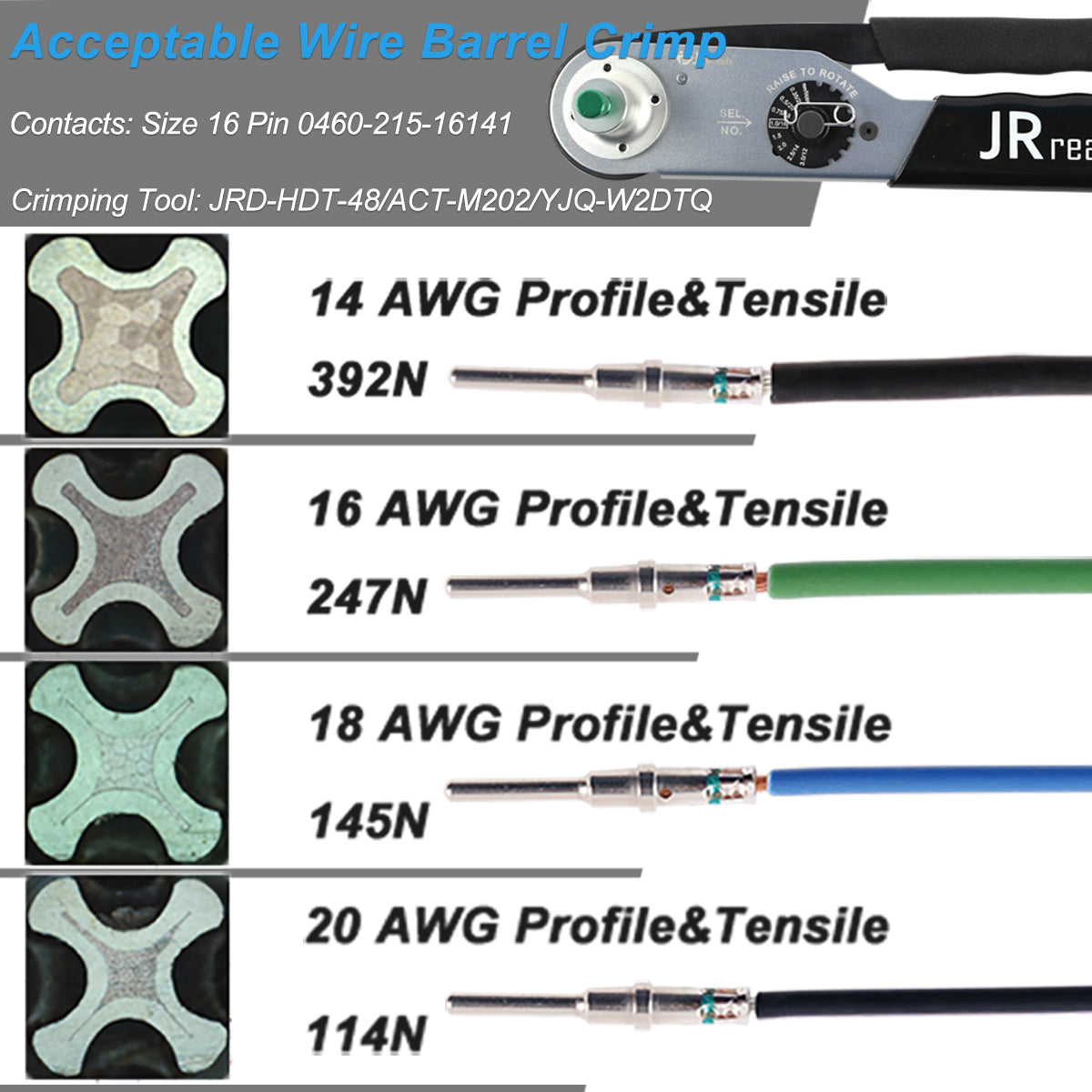

168 pcs 0460-215-16141 (14-16 AWG Solid Pins);

168 pcs 0462-209-16141 (14-16 AWG Solid Sockets)

20 pcs 114017 (Seal plug);

1 pcs 0411-310-1605 Contact Removal Tool (16 AWG)

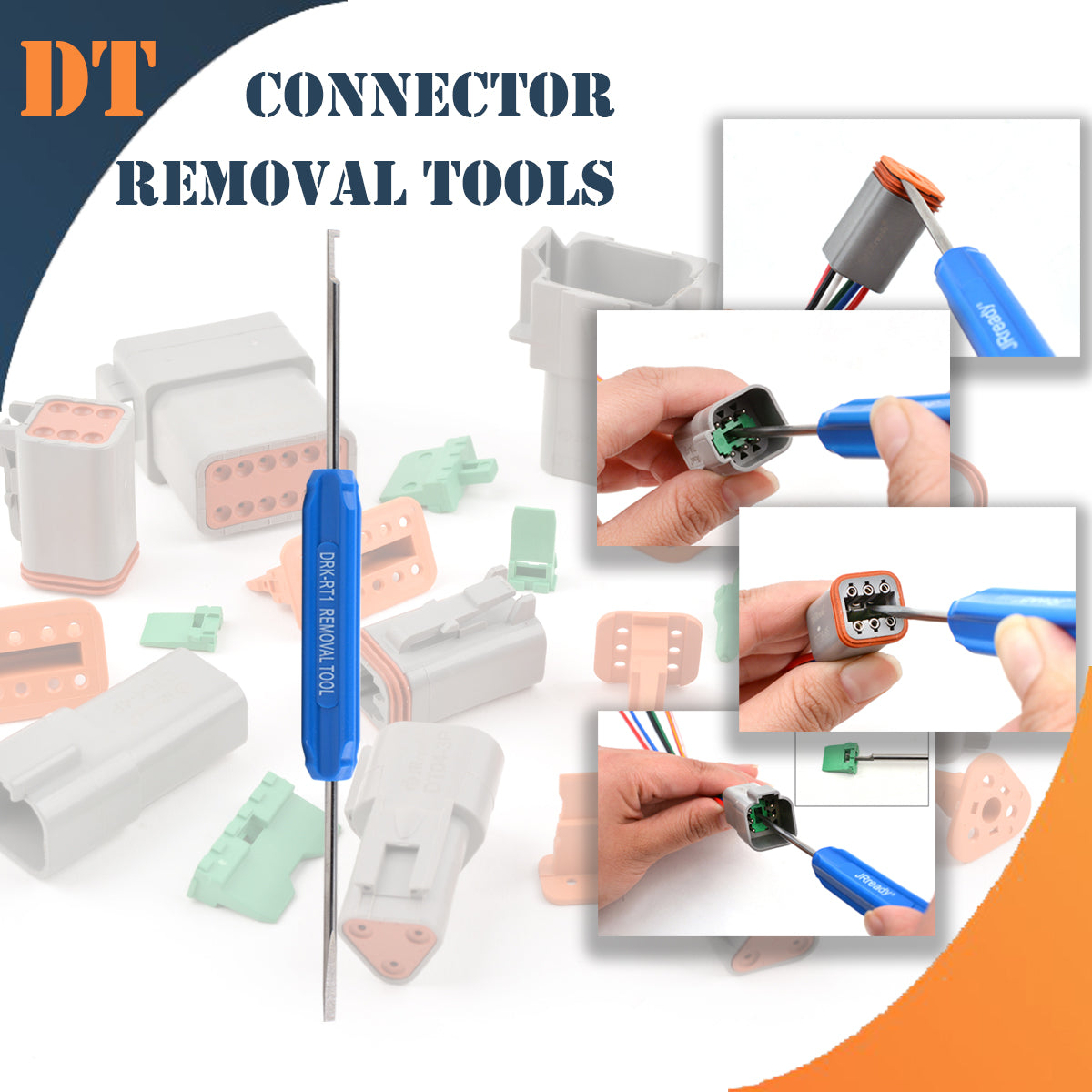

1 pcs DRT-RT1 Pick Removal Tool;

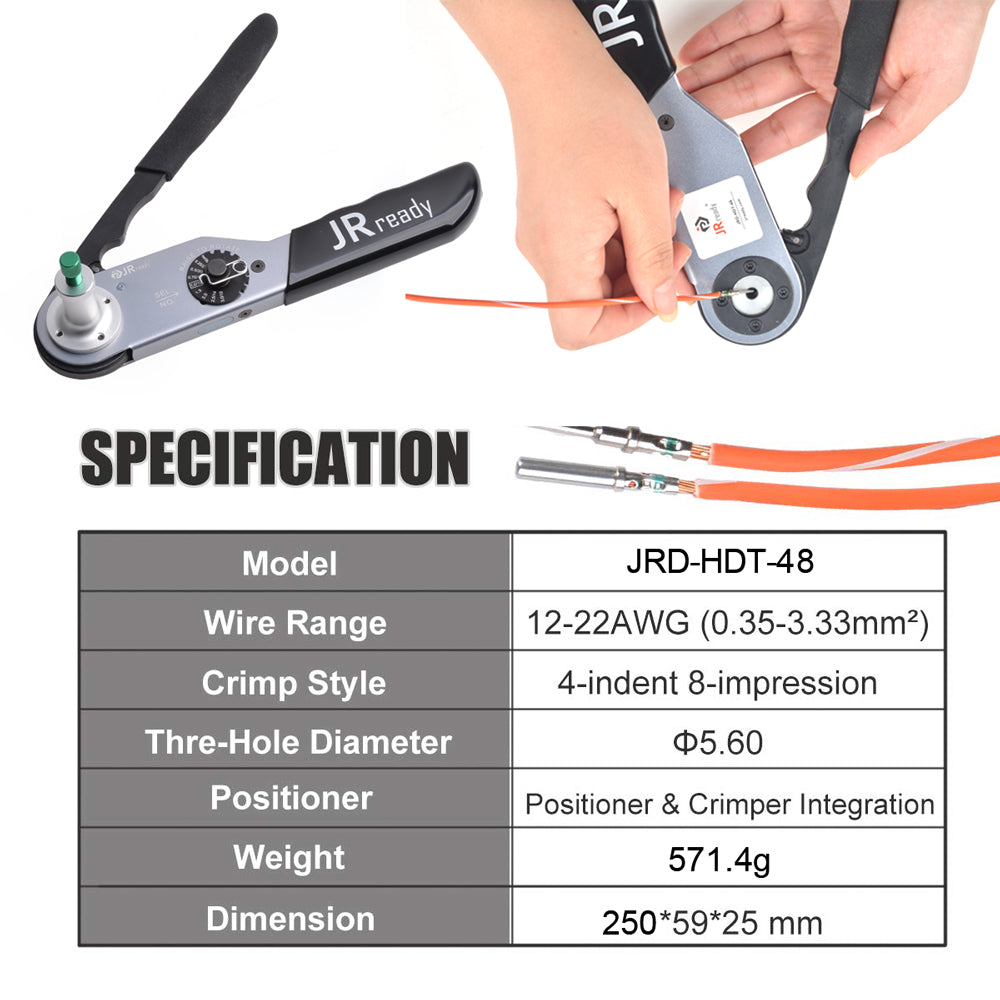

1 pcs JRD-HDT-48 Crimping Tool

YOUTUBE VIDEO:

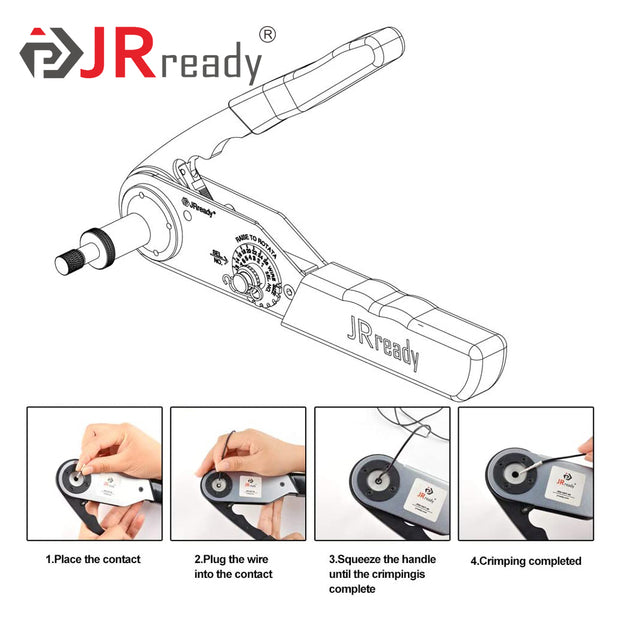

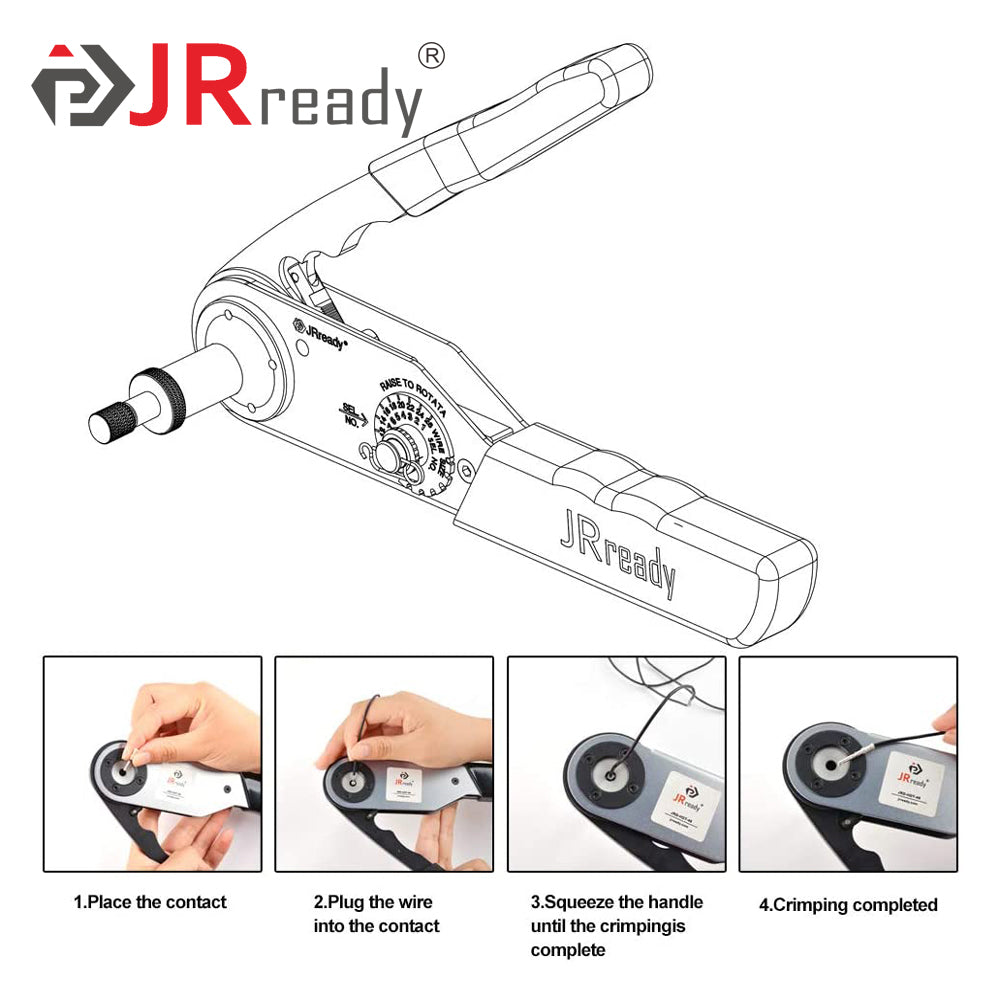

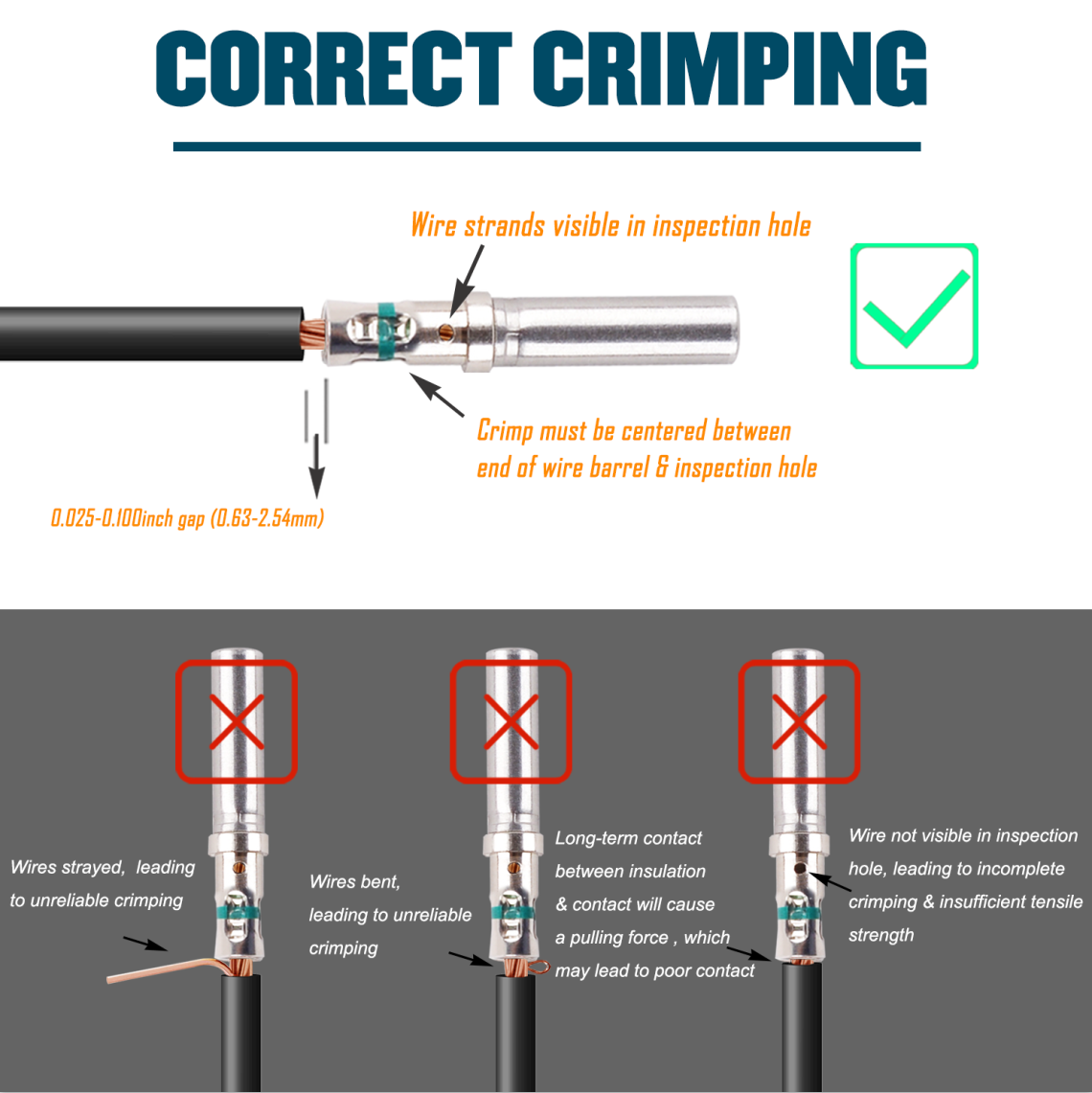

DT Series Connectors Crimping , Assembly & Disassembly

https://www.youtube.com/watch?v=3jwjeluGsYQ
