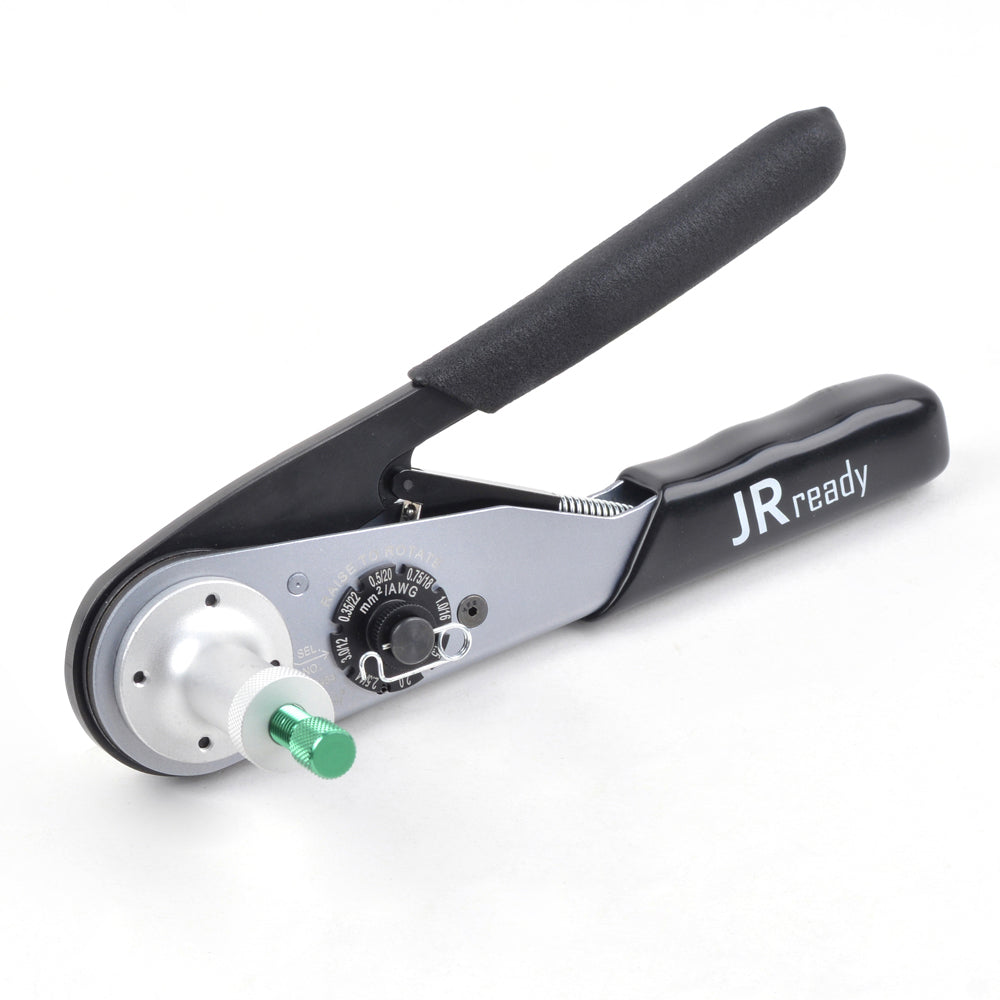

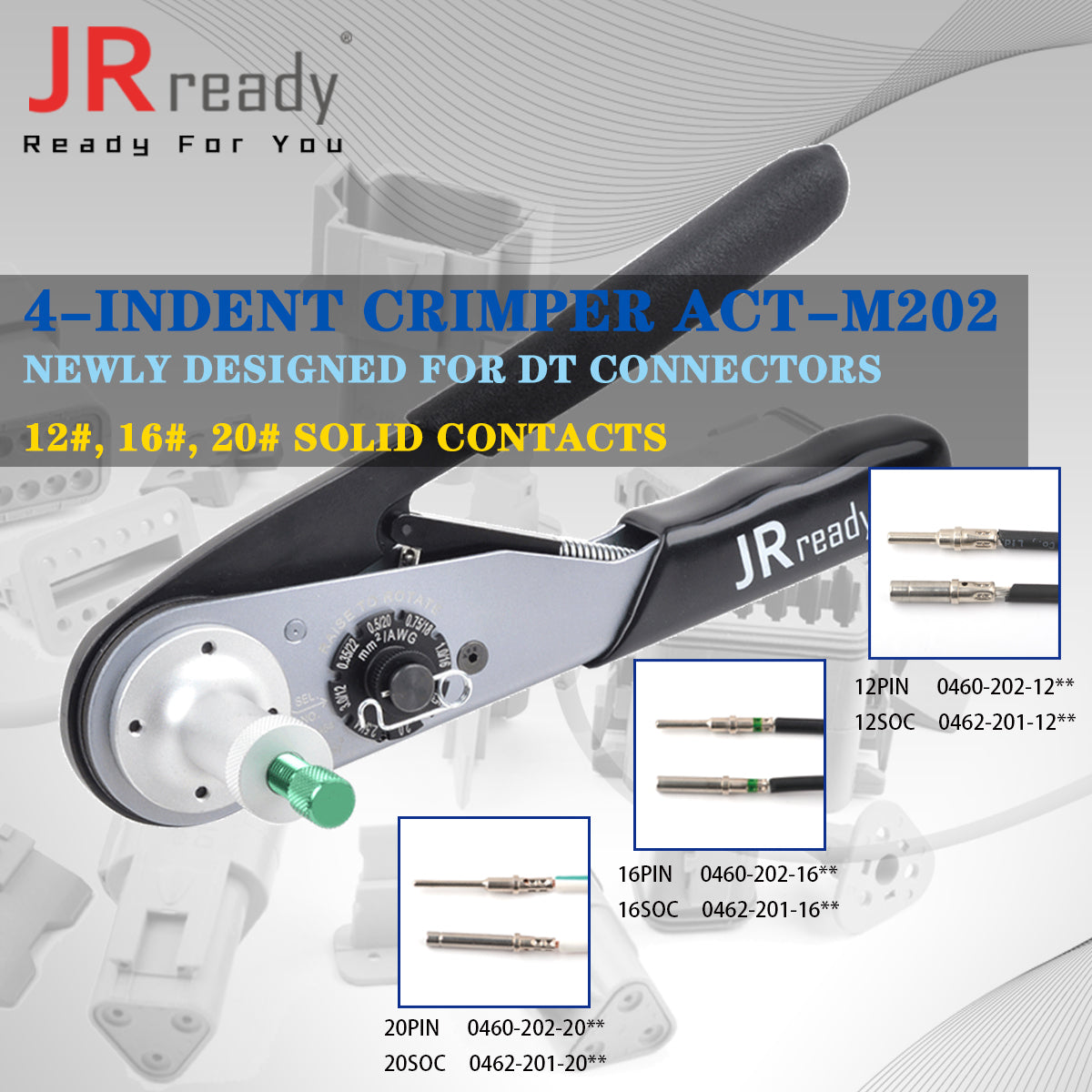

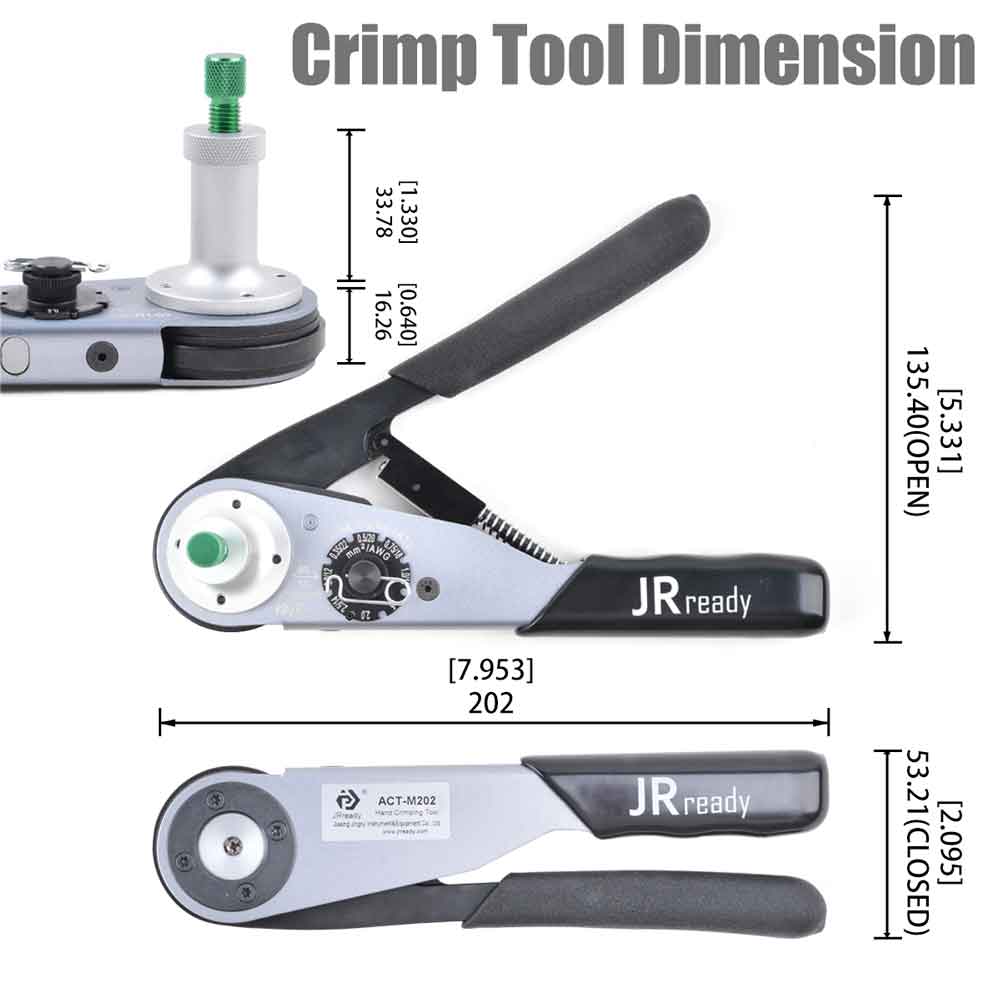

ACT-M202 Crimper(Small Version Deutsch HDT-48-00) Specially designed for Deutsch Solid Contacts 12#, 16#, 20# of DT DTM DTP Connectors

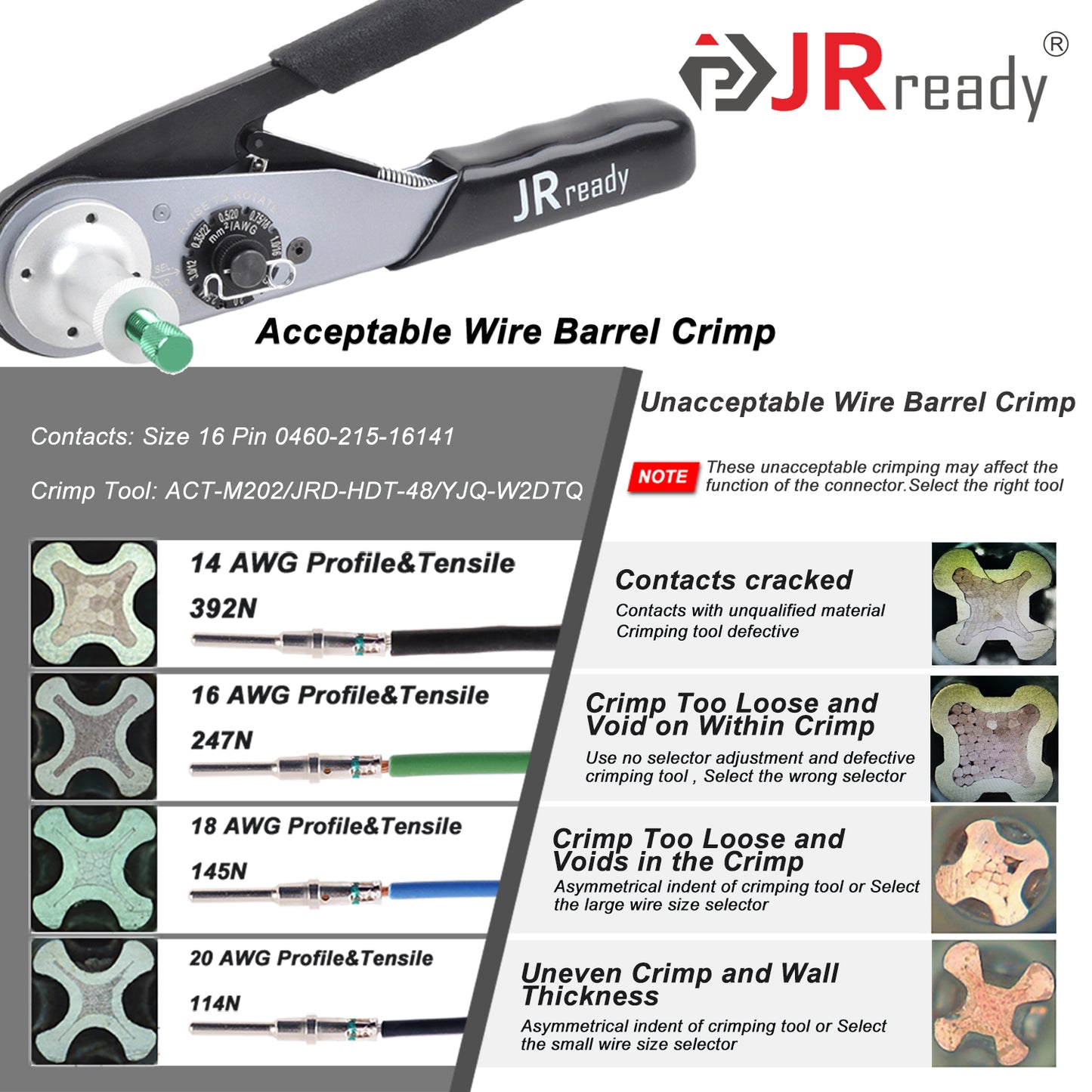

           【Technology】 Specially designed indenters which ensure pull-out force and also reduce contact resistance

• 【Contact information】 Size 12,16,20, Numbers Beginning With 0460 (Pin) and 0462 (Socket) Solid Contacts.
• 【Wavy handle design】Increase friction to prevent the sheath from falling off.
• 【Wire Range】12-22AWG(0.35-4mm²)

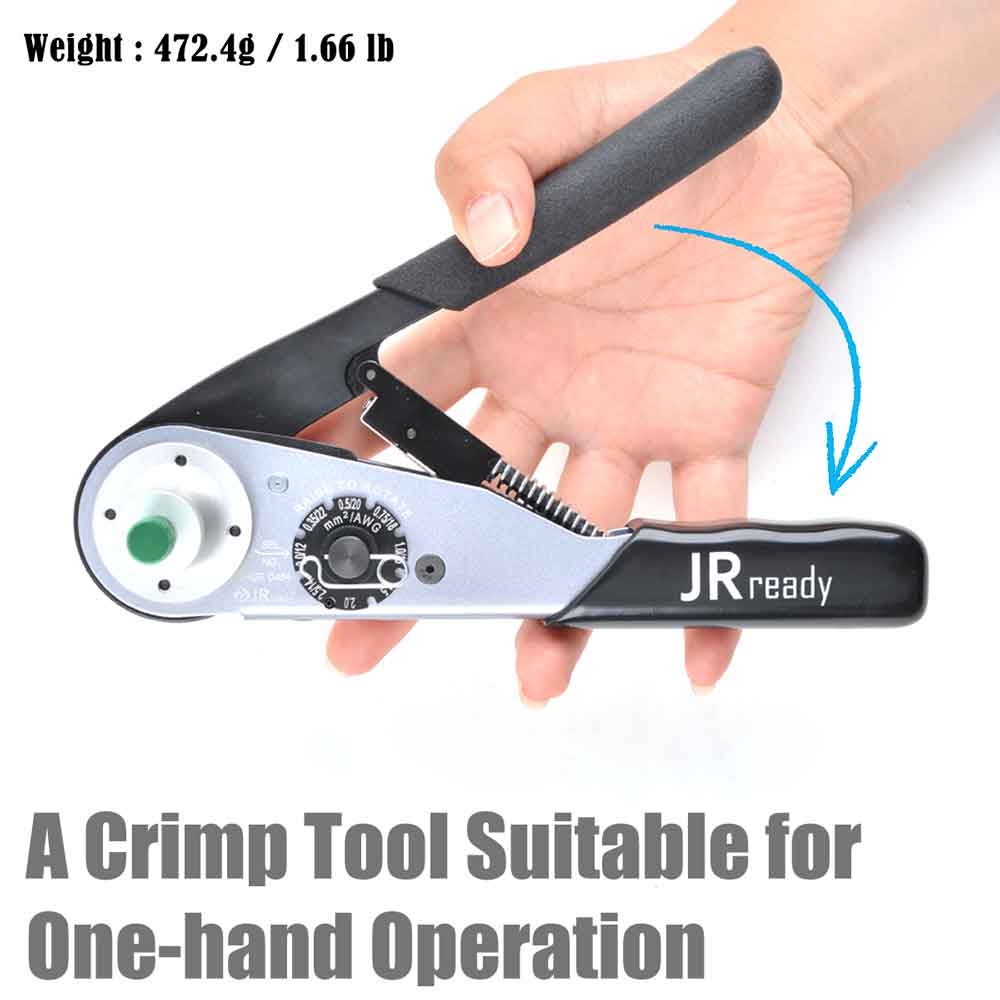

• 【Operation】Suitable for hand-operated operation, light and convenient, easy to carry, outdoor maintenance

Applications

ACT-M202  is specially designed for crimping 12#, 16#,20# solid contacts of DT, DTM & DTP Series sealed connectors which are with rugged quality and environmentally sealed, designed for cable to cable applications within the automotive industry.

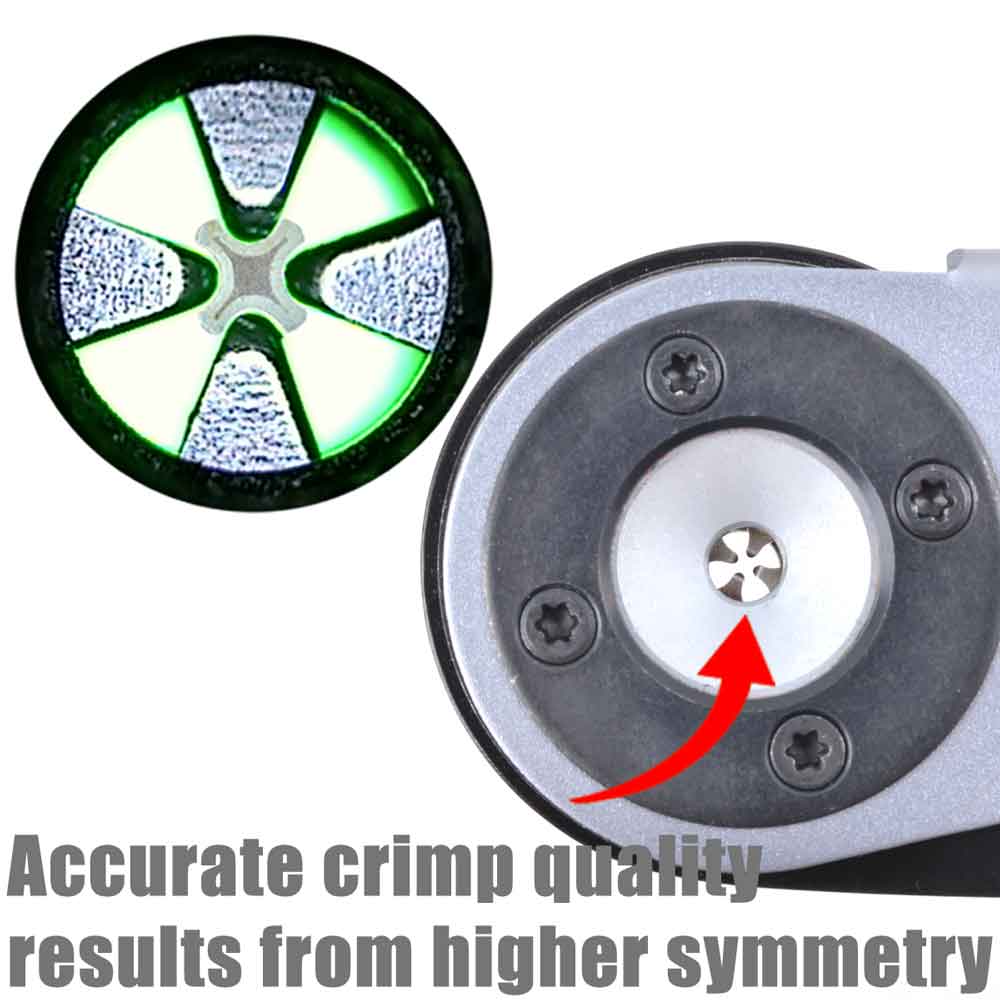

4-way 8-impression crimping
The cycle controlled precision ratchet assures the consistency of impression and the crimping quality of wires and contacts.

8 Selector Numbers

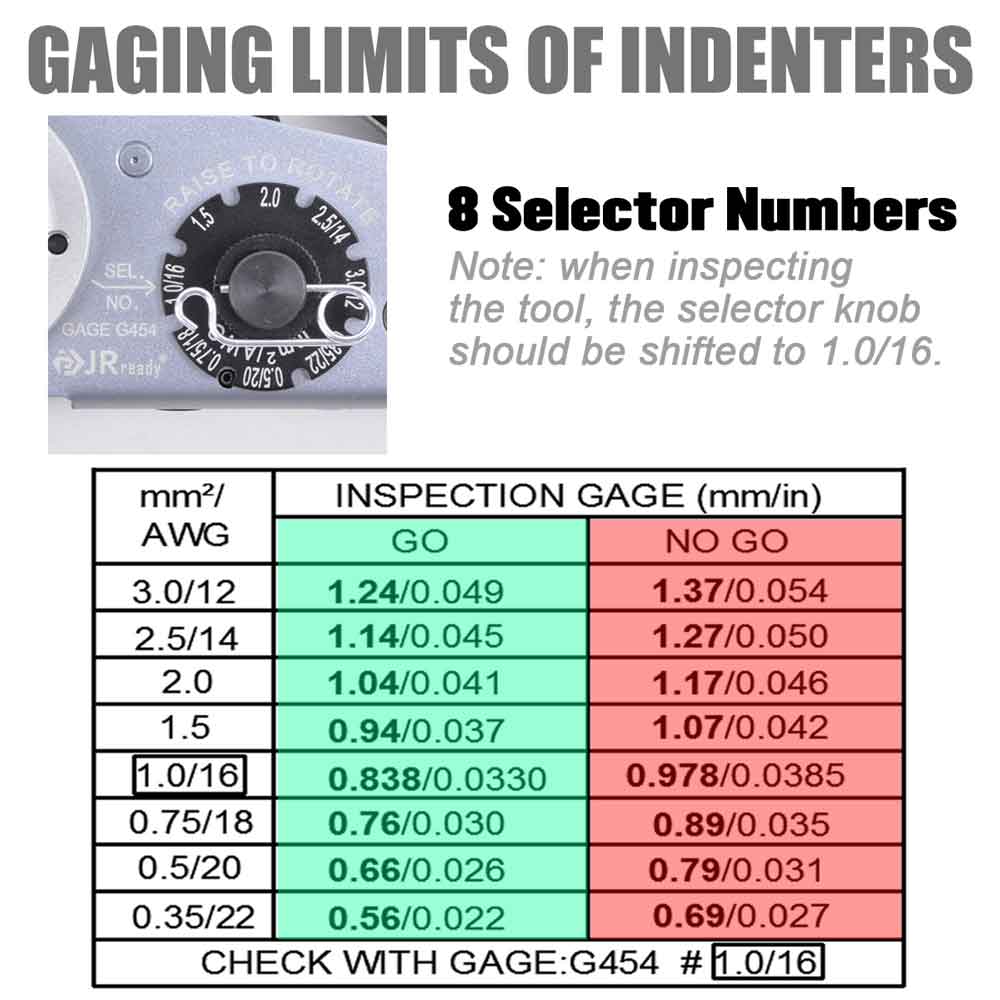

Selector No. (mm²/AWG) Intender Working Diameter mm/INCH
3.0/12# 0.049/1.24 (GO) --0.054/1.37 (NO GO)
2.5/14# 0.045/1.14 (GO) --0.050/1.27 (NO GO)
2.0 0.041/1.04 (GO) --0.046/1.17 (NO GO)
1.5 0.037/0.94 (GO) --0.042/1.07 (NO GO)
1.0/16# 0.033/0.838 (GO) --0.0385/0.978 (NO GO)
0.75/18# 0.030/0.76 (GO) --0.035/0.89 (NO GO)
0.50/20# 0.026/0.66 (GO) --0.031/0.79 (NO GO)
0.35/22# 0.022/0.56 (GO) --0.027/0.69 (NO GO)

CRIMPING INSTRUCTIONS

1. Insert the contact and prepare the wire through the indenter from the opposite side
2. Squeeze the handles together until ratchet releases. Then the handle will return to its open position automatically
