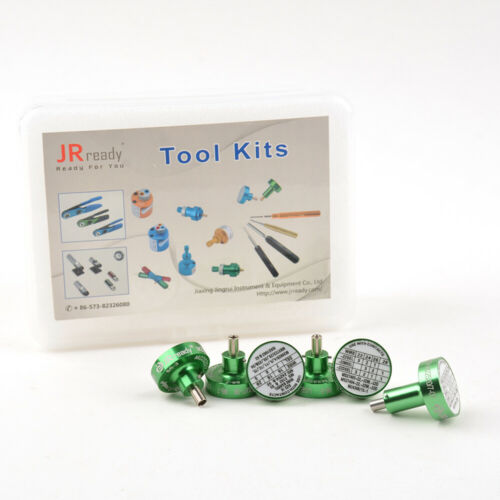

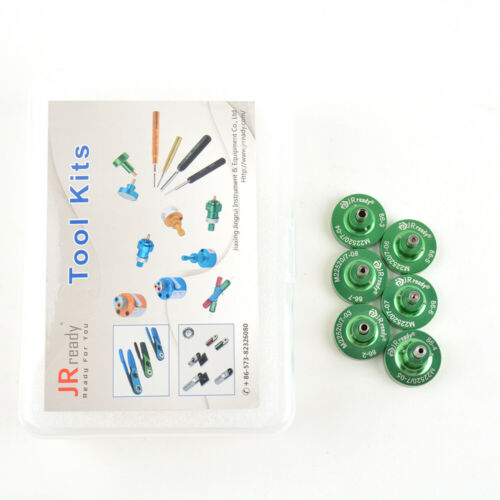

JRready ST5138 M22520/7 Positioner Kit: 86-2, 86-3, 86-4, 86-5, 86-6, 86-7 Positioners Use with Crimper M22520/7-01 YJQ-W7A & YJQ-W7Q

JRready ST5138 M22520/7 Positioner Kit: 86-2, 86-3, 86-4, 86-5, 86-6, 86-7 Positioners Use with Crimper M22520/7-01 YJQ-W7A & YJQ-W7Q

$99.00 USD
$99.00 USD
Sale Sold out
Shipping calculated at checkout.
TYPE

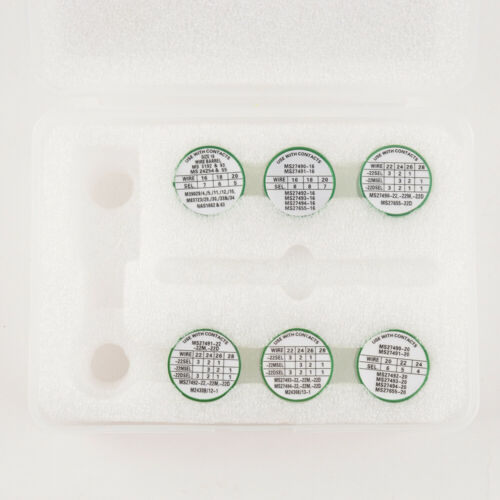

Package List:

86-2 Positioner,86-3 Positioner,86-4 Positioner,86-5 Positioner,86-6 Positioner,
86-7 Positioner

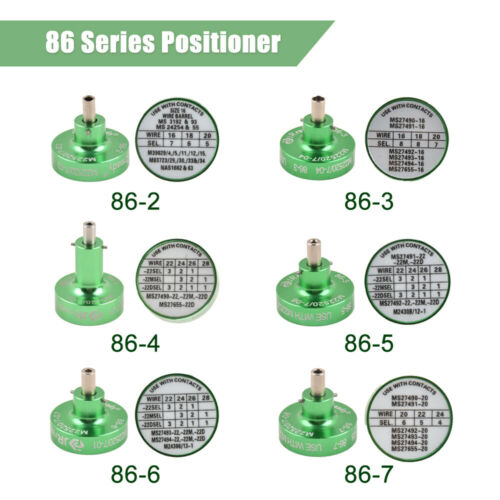

No.

Standard

MIL Standard

Suitable terminal mode

1

86-2

M22520/7-03

MS3192&93 ,MS24254&55

2

86-3

M22520/7-04

MS27490-16,MS27491-16,MS27492-16,MS27493-16,MS27494-16,MS27655-16

3

86-4

M22520/7-05

MS27490-22,-22M,-22D,MS27655-22D

4

86-5

M22520/7-06

MS27491-22,-22M,-22D

5

86-6

M22520/7-07

MS27493-22/MS27494-22,-22M,-22D,M24308/13-1

6

86-7

M22520/7-08

MS27492-20/MS27493-20/ MS27494-20 MS27655-20

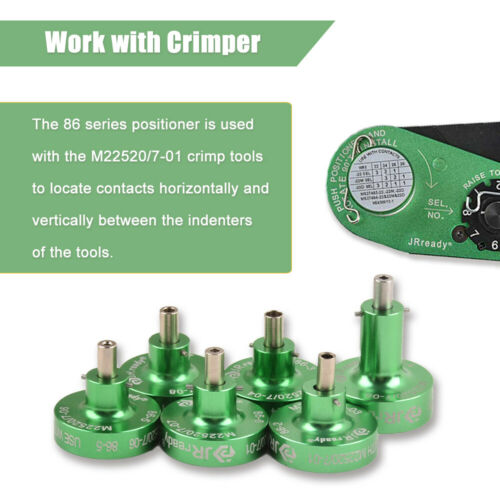

How to Install the Positioner

1. Before installing the positioner, the tool should be open
2. Remove the safety clip from positioner guide
3. Select the correct positioner for terminal crimping
4. Insert the positioner into positioner guide, push down and then rotate 90 °, until bayonet pins lock
5. Remove the spring clip from the selector knob, adjust it to the correct selector position
