JRready JST1162-ASF1 (JST2524) Crimp Tool Full Kit: NEW-ASF1 (M22520/1-01) Crimp Tool+17 Positioners+G125 Gage For Electrical Connectors Wiring System

JRready JST1162-ASF1 (JST2524) Crimp Tool Full Kit: NEW-ASF1 (M22520/1-01) Crimp Tool+17 Positioners+G125 Gage For Electrical Connectors Wiring System

$759.00 USD
$759.00 USD
Sale Sold out
Shipping calculated at checkout.
QUANTITY

JRready JST1162-ASF1 Crimp Tool Full Kit: NEW-ASF1 (M22520/1-01) Crimp Tool+17 Positioners+G125 Gage For Electrical Connectors Wiring System

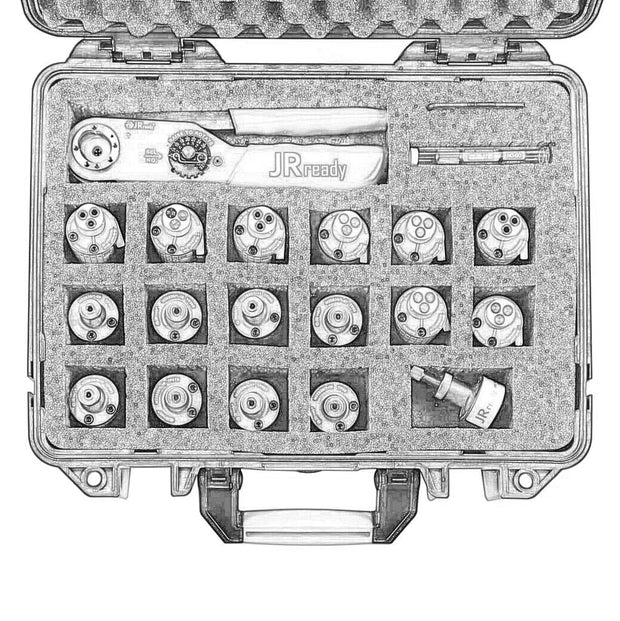

PACKAING LIST
NO. MIL PART NUMBER JRREADY PART NUMBER
1 M22520/1-01 NEW-ASF1
2 M22520/1-02 PH102
3 M22520/1-03 PH103
4 M22520/1-04 PH104
5 M22520/1-05 PU105
6 M22520/1-06   PT106
7 M22520/1-07 PT107
8 M22520/1-08 PH108S
9 M22520/1-09   PT109
10 M22520/1-10   PT110
11 M22520/1-11   PT111
12 M22520/1-12 PH112
13 M22520/1-13 PH113
14 M22520/1-14 PH114
15 M22520/1-15  PT115
16 M22520/1-16  PT116
17 M22520/1-17  PT117
18 M22520/1-18 PH118
19 M22520/3-1 G125



NEW-ASF1 Crimp Tool

[NEW DESIGN NEW APPEARANCE]

Personalized & Unique Colorful Camouflage Appearance with firm construction which makes work more interesting

[4-WAY 8-IMPRESSION CRIMPING]

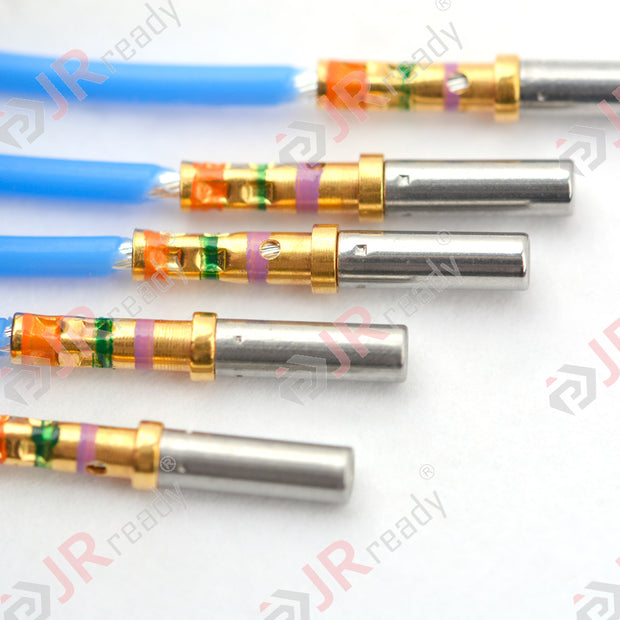

Gives a Mil-Standard 8 impression crimp, which assures maximum tensile strength with almost every closed barrel contact

[CRIMP WIRE RANGE]

12-26 AWG (0.128-3.33mm²)

Has virtually limitless application within the specified wire range of 12 through 26 AWG

[PROFESSIONAL CRIMPING TOOL]

Designed according to MIL-C-22520/1-01;

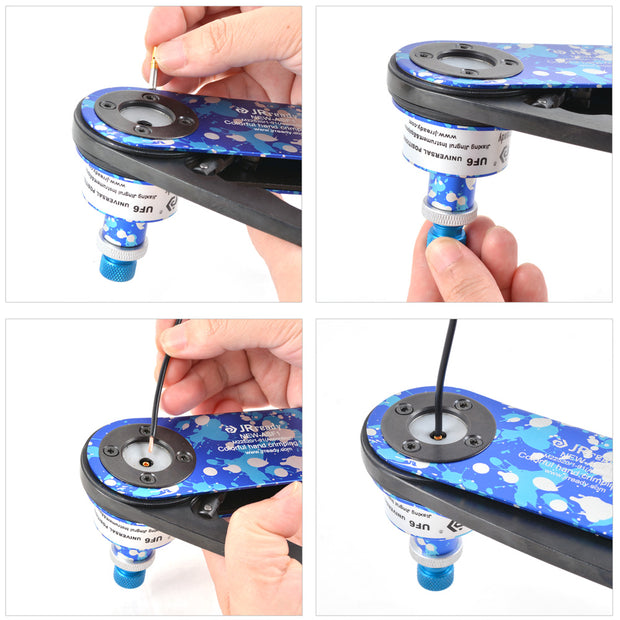

The cycle controlled precision ratchet assures consistently accurate crimps every time

Positive crimp depth is controlled by an 8 position selector knob conveniently located on the tool frame

[APPLICATION]

NEW-ASF1: Suitable for crimping round contacts of MIL standard, Harting, Wain, TE connectors
