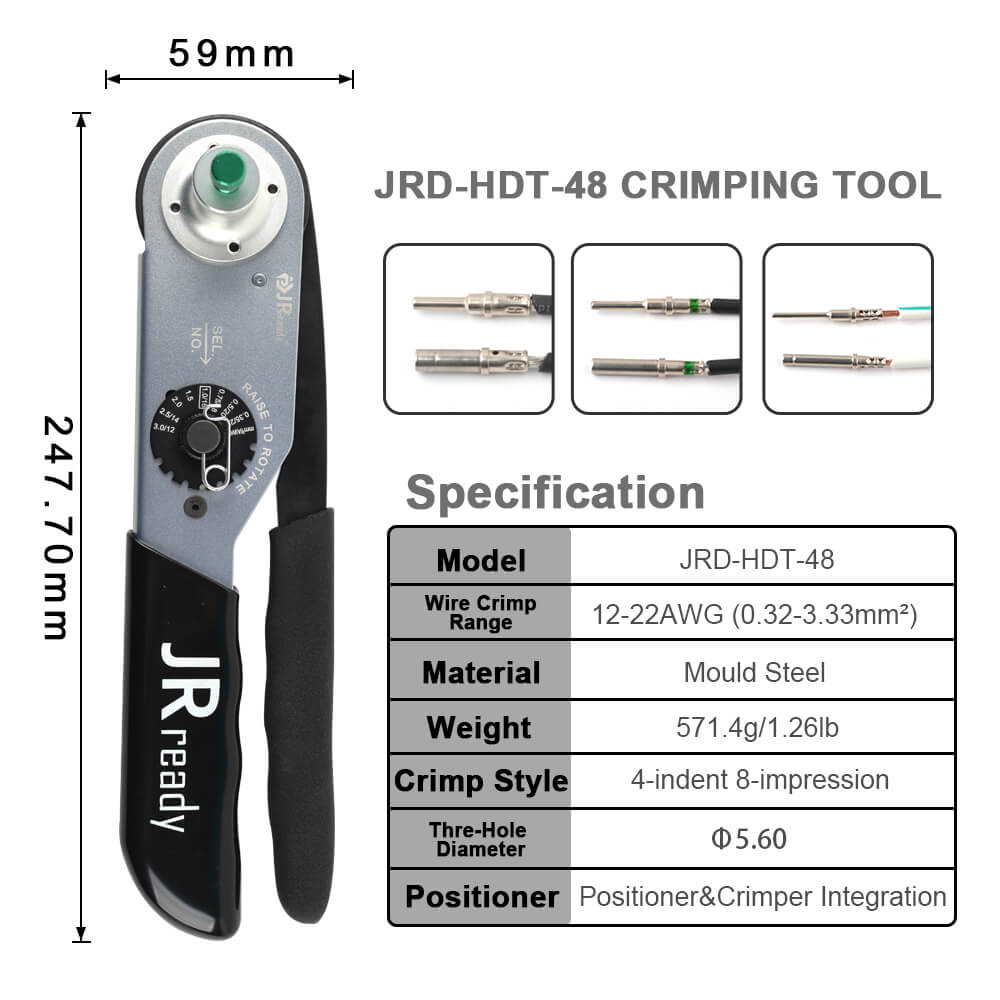

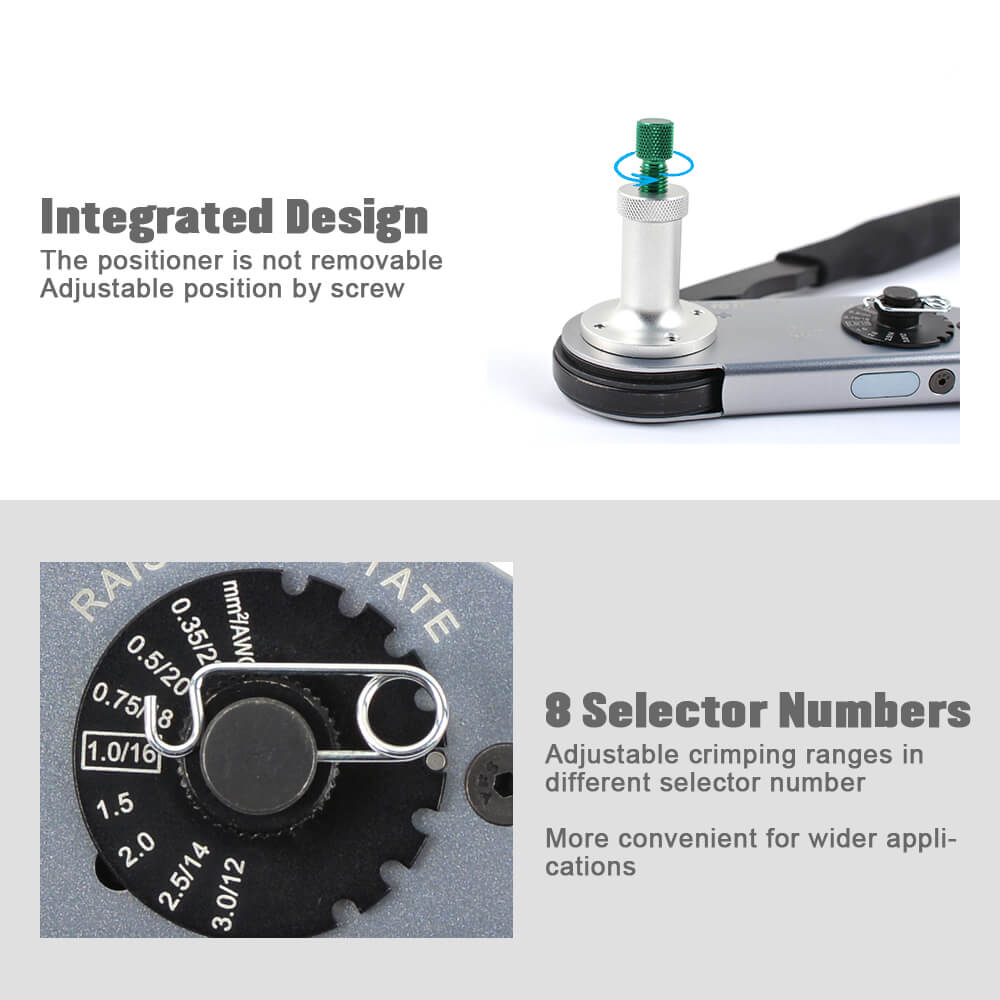

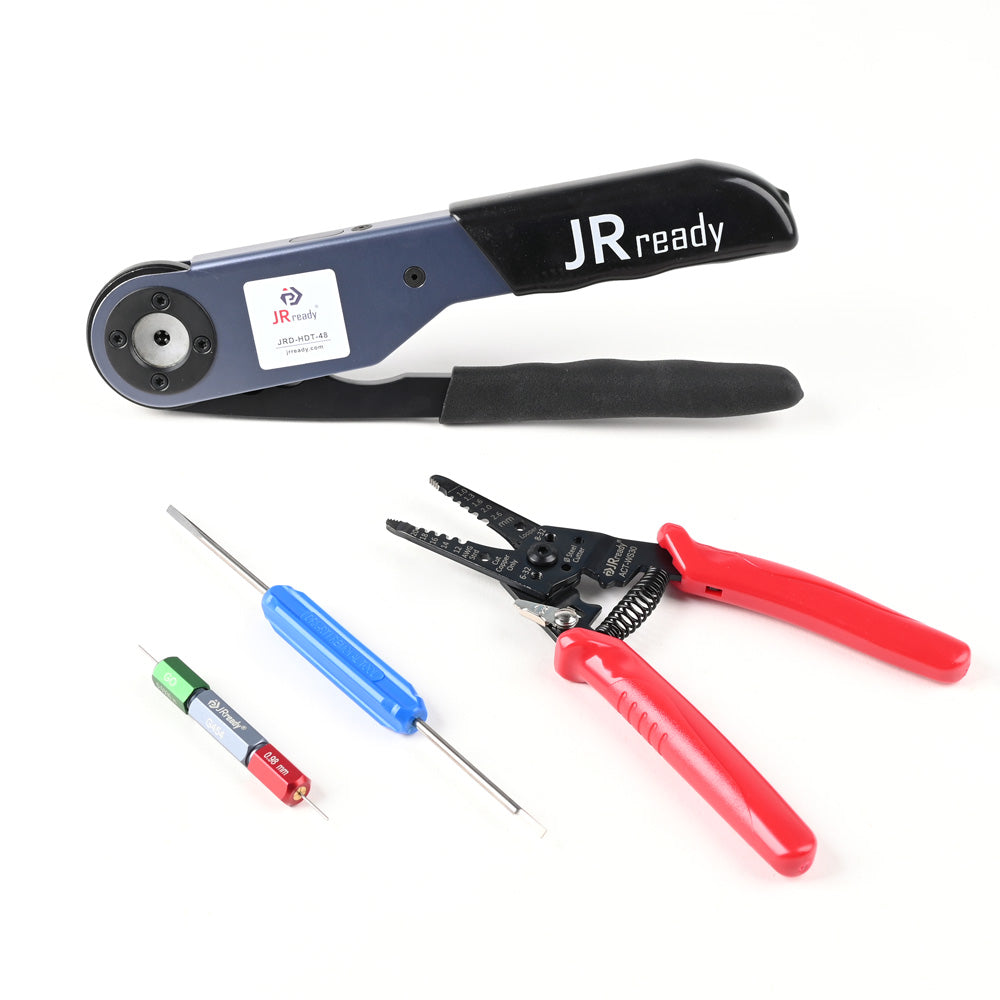

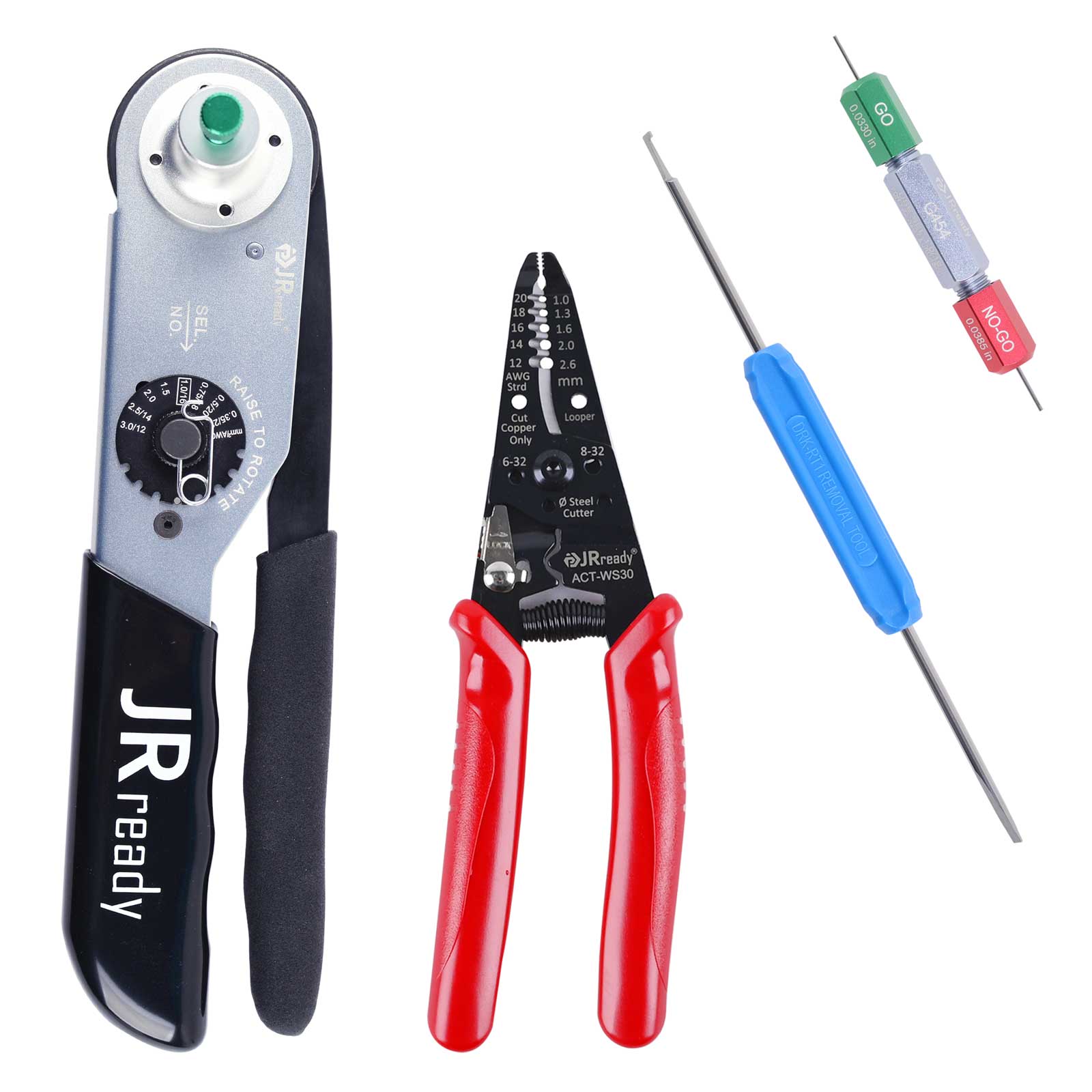

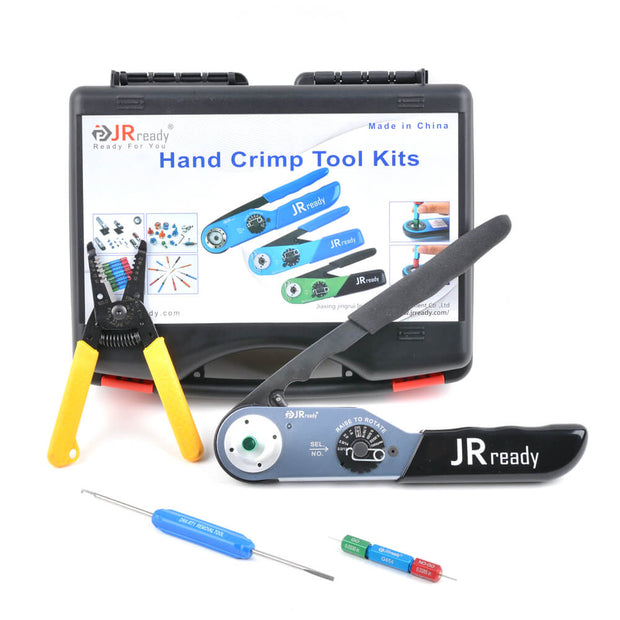

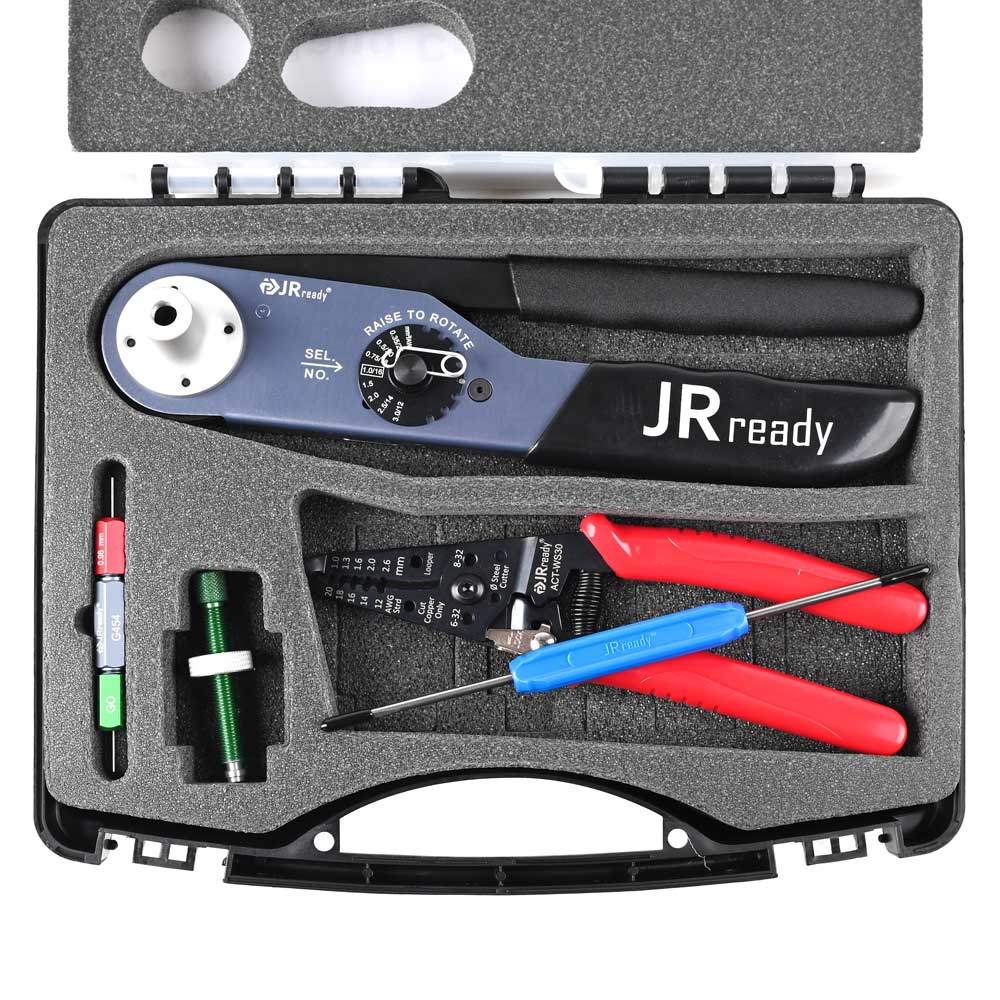

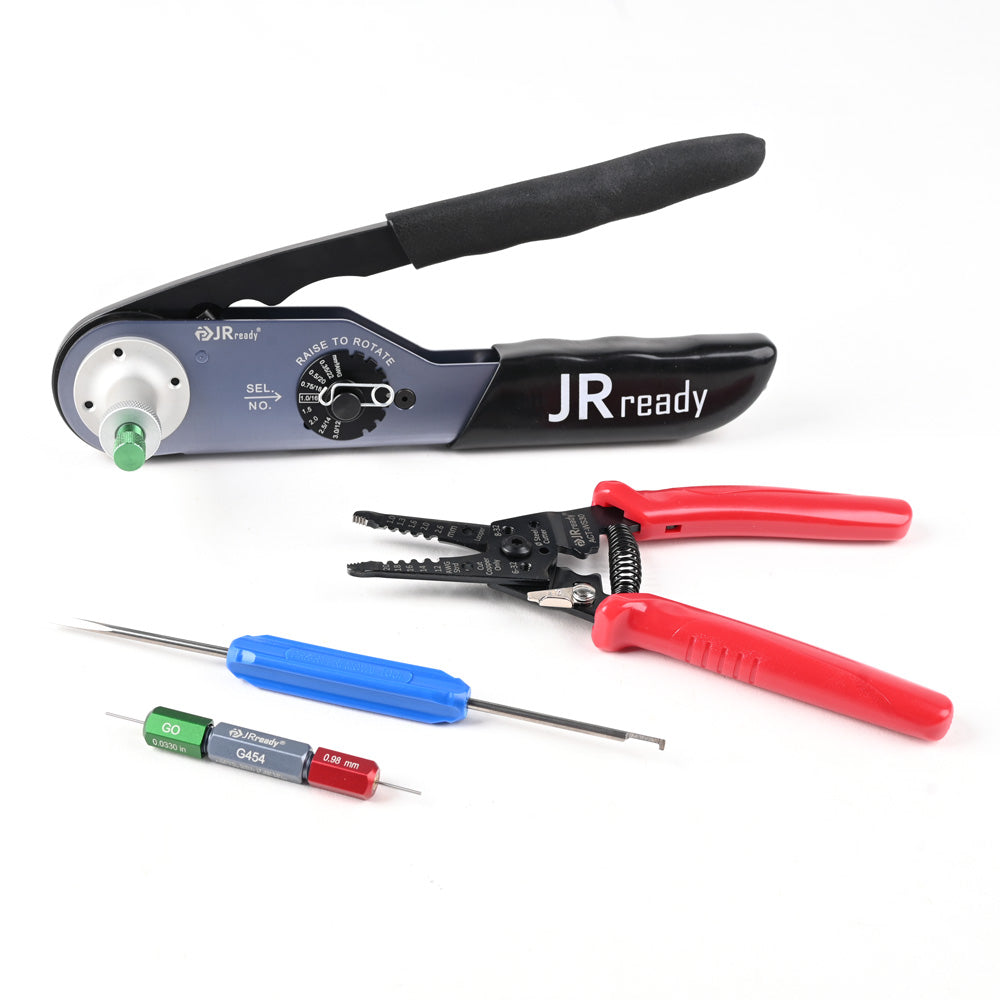

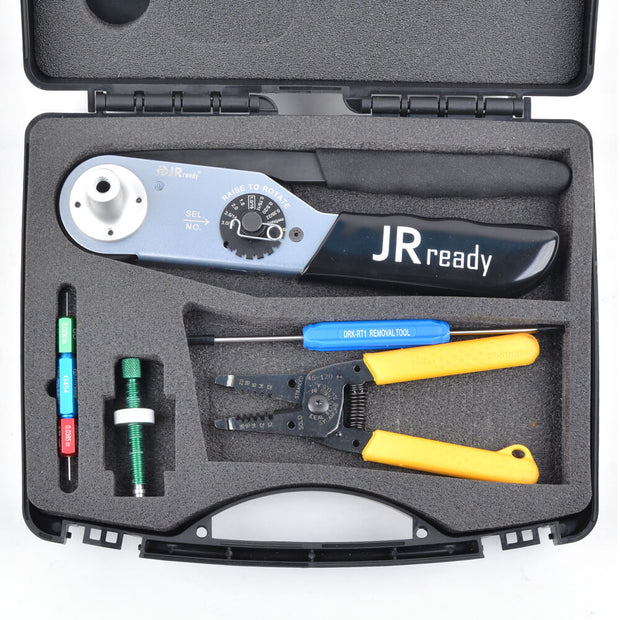

GENERAL INFORMATION 1. Equivalent to HDT-48-00 Crimp Tool 2. 4-way 8-impression indent crimping 3. Fixed with a non-removable adjustable positioner 4. JRD-HDT-48 is widely used for solid contacts (12#，16#，20#) 5. Wire crimp range: 12AWG (3.33mm²) to 22AWG (0.32mm²)

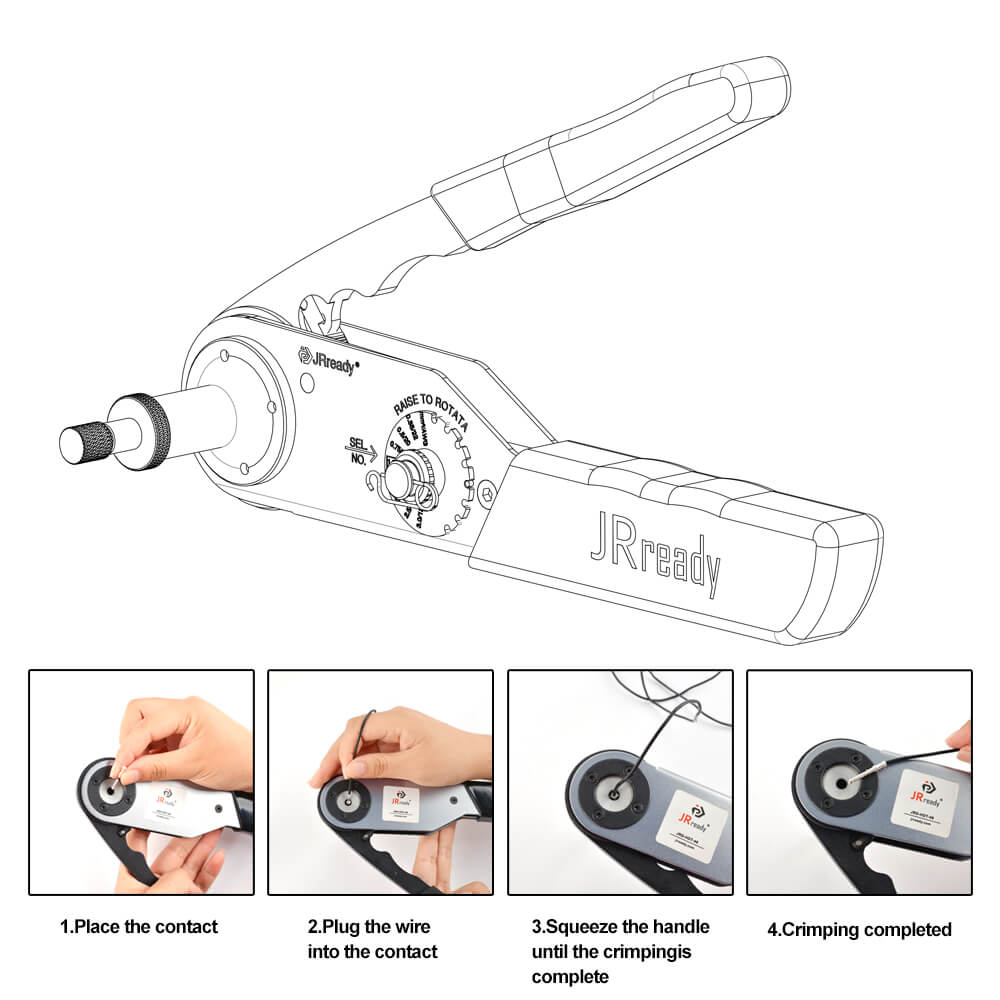

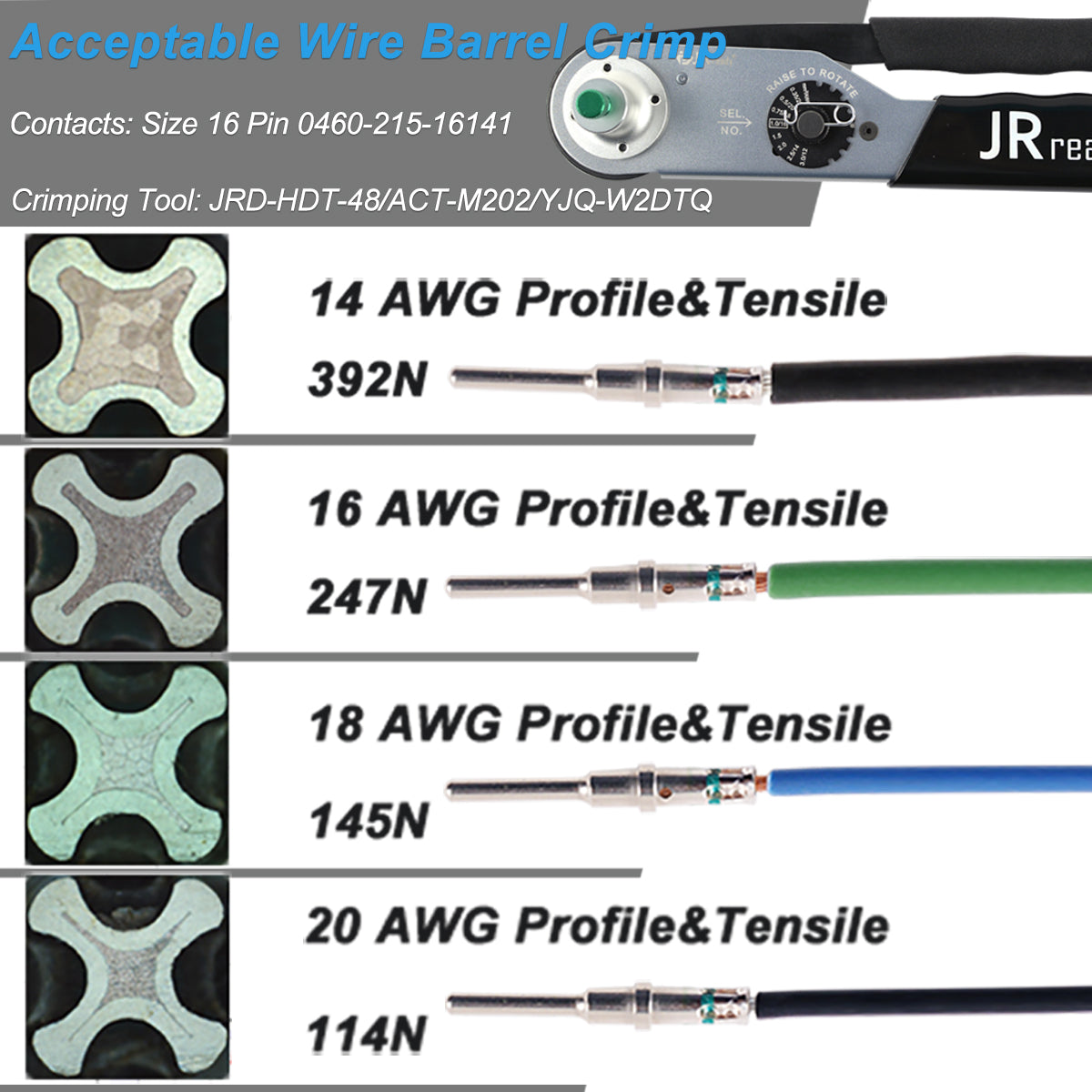

CRIMPING INSTRUCTIONS 1. Insert the contact and prepare the wire through the indenter from the opposite side 2. Squeeze the handles together until ratchet releases. Then the handle will return to its open position automatically

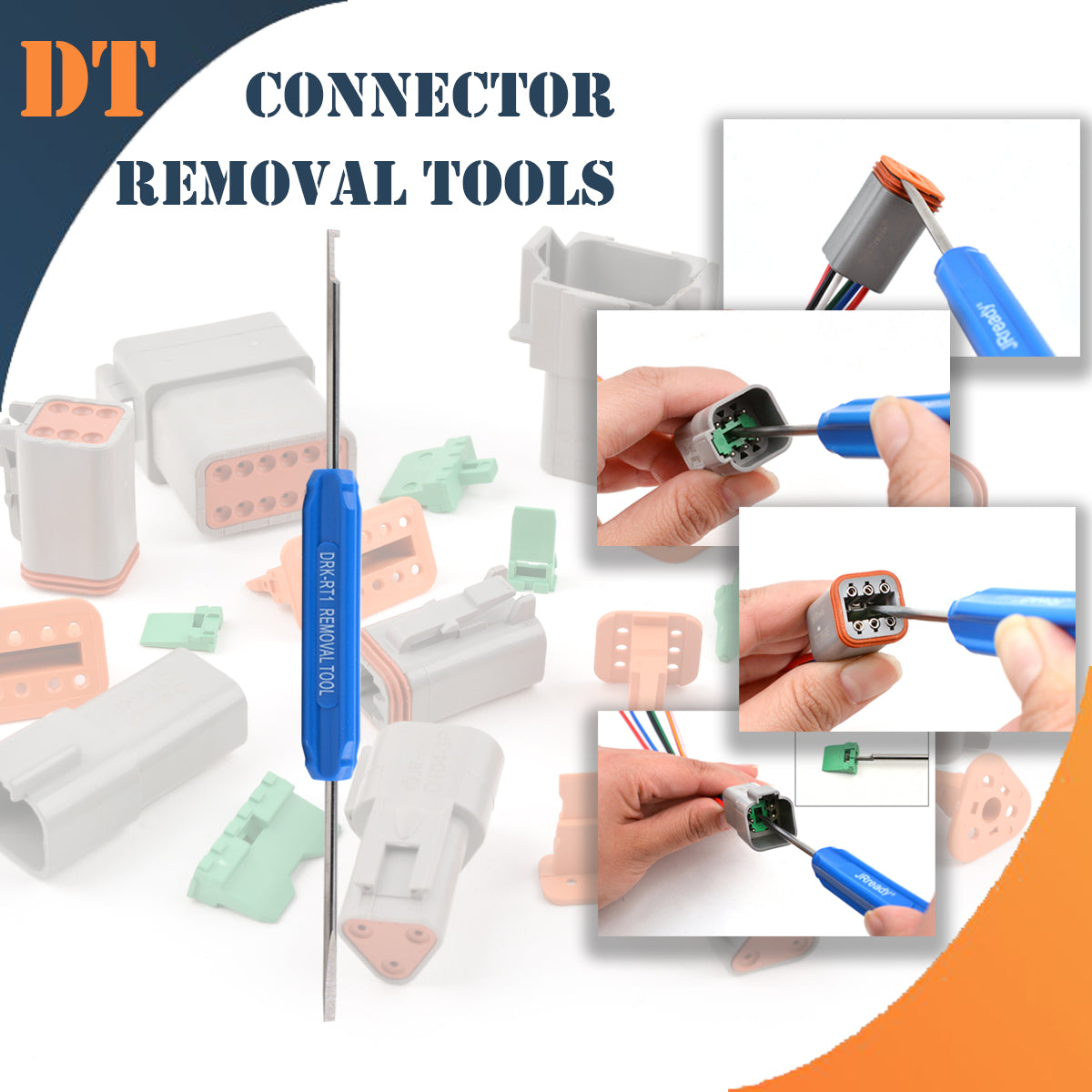

DRK-RT1 Pick Removal Tool
GENERAL INFORMATION
The DRK-RT1 is a removal pick for the DT Series.
Double Ended Removal Tool: One end has a sturdy 90 degree hook for non-slip wedge lock removal.
The other end has a standard flat head screw driver which can be used as a straight pick or driver.
Material: 440C
Weight (g): 17.9
Dimensions (mm): 185
ACT-WS30 Wire Stripper
Wire range #10 to #18 AWG solid, #12 to #20 AWG stranded
Form-ground, hardened, knife-type blades for accurate stripping
OPERATION INSTRUCTIONS Removing Socket Contacts Step 1: Place the flat end under the plastic part, then lift it evenly and remove it from the joint. Step 2: Place the flat end in the snap position on the socket inside the plastic part and slowly lift it up. Step 3: From the end of the wire, pull the wire and remove the socket. Removing Pin Contacts Step 1: Rotate the other end with the claws by 90° to hook the plastic piece and pull it straight out of the connector. Step 2: Place the flat end in the snap position on the socket inside the plastic part and slowly lift it up. Step 3: Pull the wire from the end of the wire and take the pin out.
