JRready ST4050 Tool Kit: YJQ-W2DTQ Pneumatic Crimper HDT-48-00 for Deutsch DT DTM DTP Connector 12#, 16#, 20# Solid Contacts 12-22 AWG

JRready ST4050 Tool Kit: YJQ-W2DTQ Pneumatic Crimper HDT-48-00 for Deutsch DT DTM DTP Connector 12#, 16#, 20# Solid Contacts 12-22 AWG

$680.00 USD
$680.00 USD
Sale Sold out
Shipping calculated at checkout.
TYPE

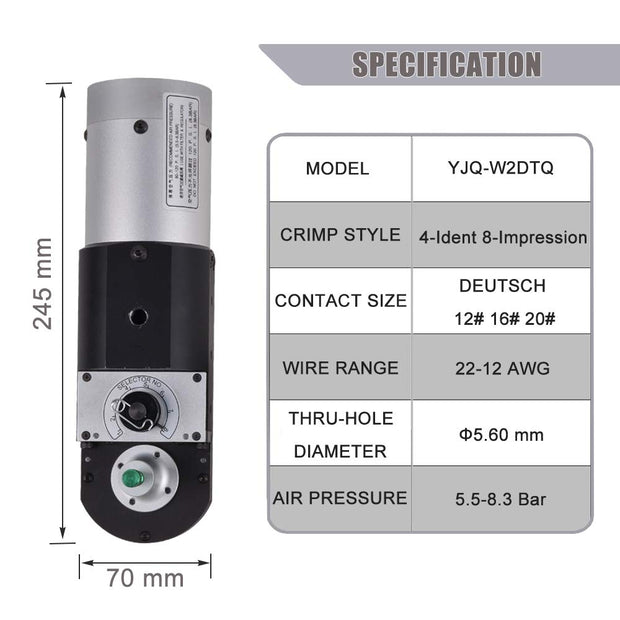

JRready ST4050: YJQ-W2DTQ Pneumatic Version HDT-48-00 crimper cable Crimper Air Tools for Cable Connector

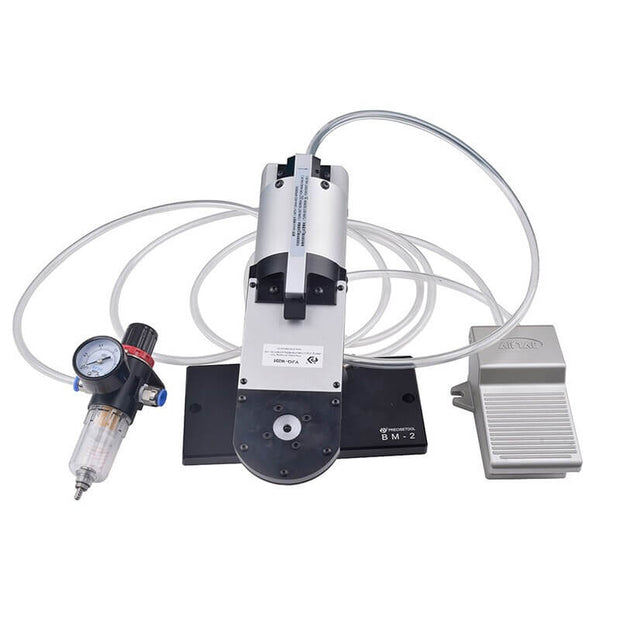

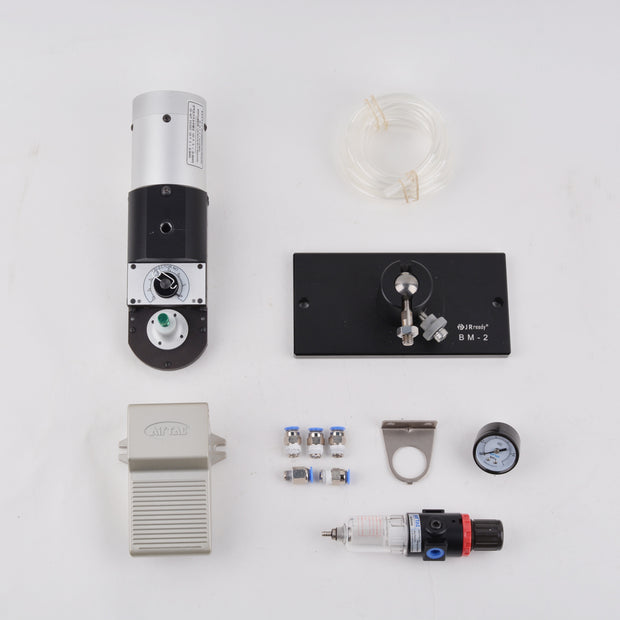

  • ST4050 Products List: YJQ-W2DTQ Pneumatic Crimp Tool & BM-2 Adjustable Base Mount & F2 air control system

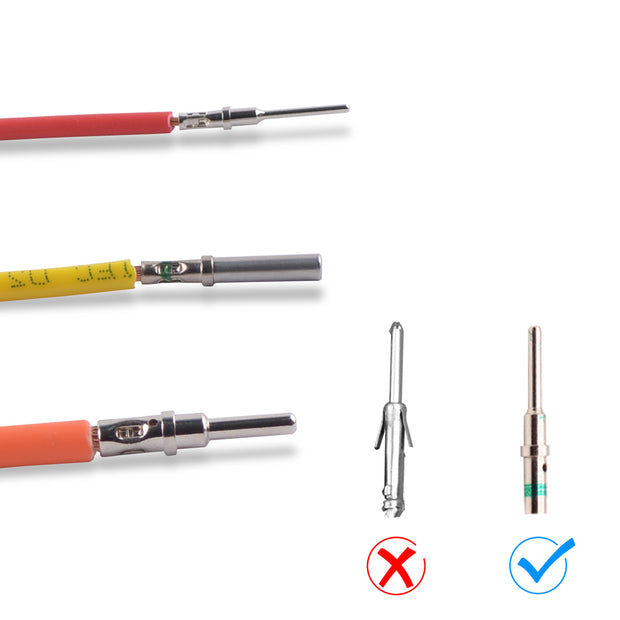

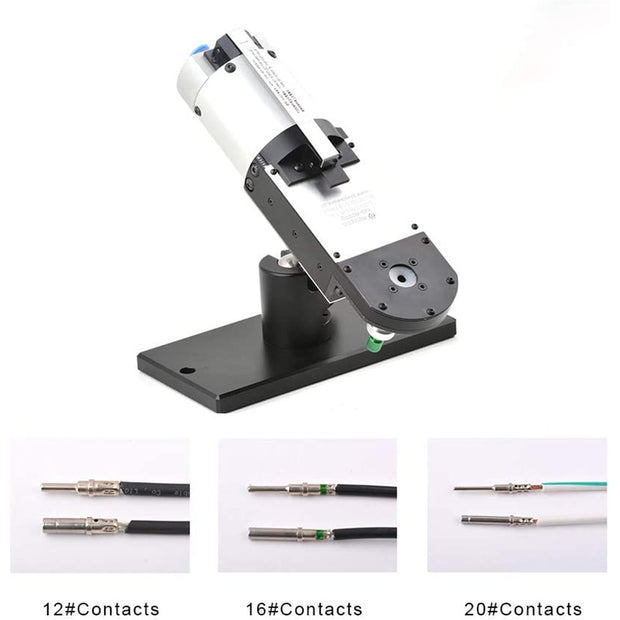

  • Suitable for crimping 12#, 16#, 20# round contacts
  • Wire Crimp Range:12-22AWG (0.32-3.33mm²)
  • Adjustable positioner is not removable
  • Specially designed to crimp contacts with air control system, high efficiency and less effort

Connector Series

DT Series, DTM Series, DTP Series, DTHD Series, HD10 Series, HDP20 Series, HD30 Series, AT Series, ATM Series, ATP Series, and AHD Series

Equivalent to YJQ-W2DT/HDT-48-00 Hand Crimping Tool

The YJQ-W2DTQ is the direct equivalent of the YJQ-W2DT/HDT-48-00 Standard Indent Crimp hand tool for size 12-22 wire,the tool runs on compressed air with no requirement for any electrical connection, even with the optional foot trigger attached. With the optional adjustable base, the tool may be permanently mounted for ease of use in high volume environments

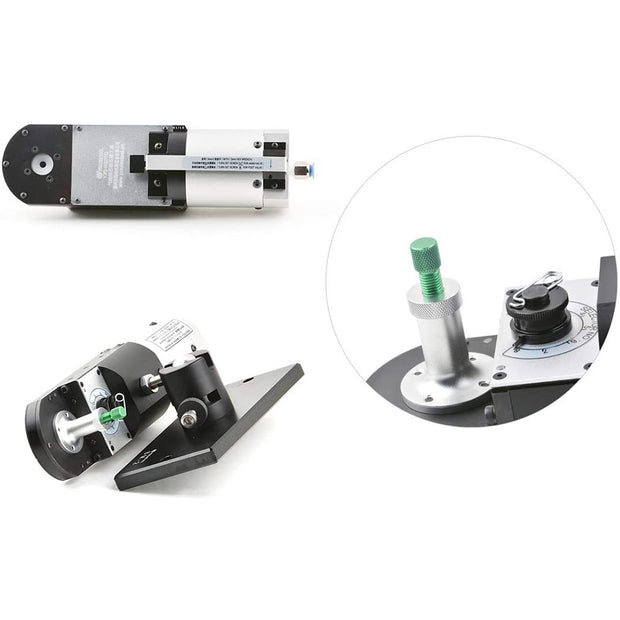

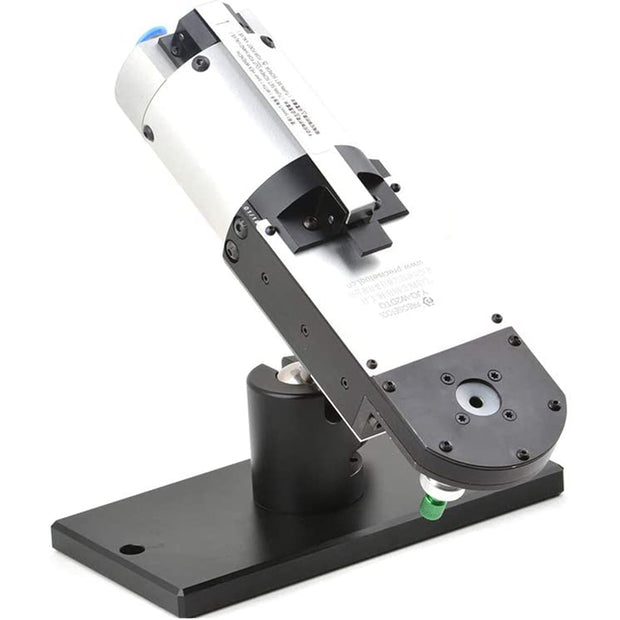

Base Mount Adjustment

BM-2 base mount is compatible with most JRreay penumatic crimping tools,you could adjust the special adjustment screw to release(Left) or lock(Right) the crimper body.

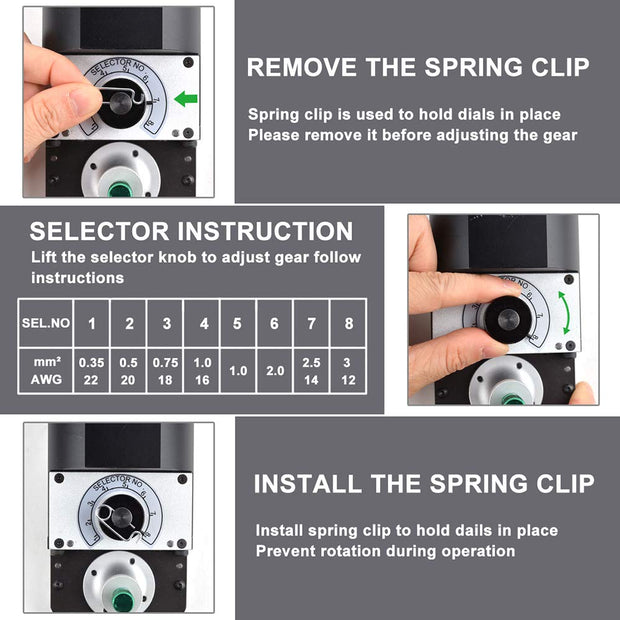

8 Selector Numbers
The crimper has 8 selector numbers(Selector NO:1-8,AWG :22-12/0.32-3.33mm²),adjustable crimping ranges in different selector number, more convenient for wider applications.

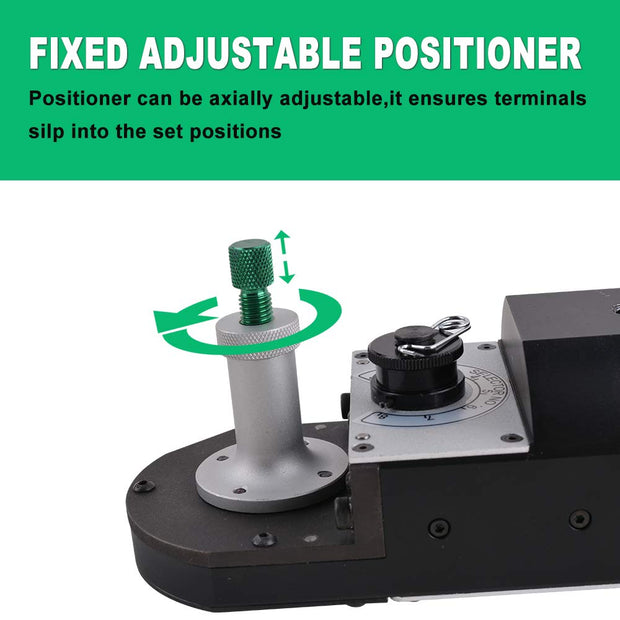

Fixed Adjustable Positioner

Positioner can be axially adjustable,it ensures terminals silp into the set positions.

Positioner is not removable,but the adjustable screw could be replace.











 Hand Operated Valve & Foot Valve

YJQ-W2DTQ has hand operated valve and foot valve,the two operating ways can be freely switched according to your preference.





Youtube Related Video：

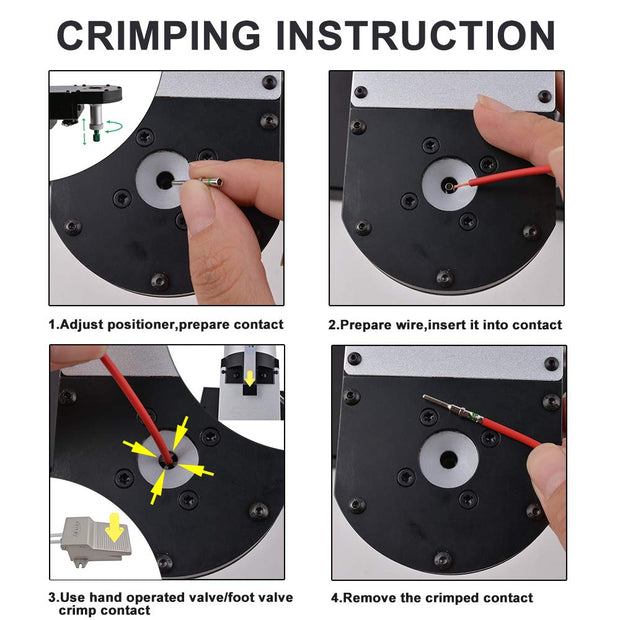

HOW TO CRIMP & TEST DEUTSCH SOLID CONTACTS--USING YJQ-W2DTQ PNEUMATIC DEUTSCH CRIMPER
https://www.youtube.com/watch?v=Gl8yFdOif7s

How to install the JRready YJQ-W2Q WA27F Pneumatic Crimp Tool Kit?
https://www.youtube.com/watch?v=EcXlYHHjNrM

How to Switch Hand & Foot Control Mode of Pneumatic Crimp Tool？
https://www.youtube.com/watch?v=VnhCcaBvcUE
